2.- INSTALLATION AND CHARACTERISTICS OF THE MACHINE
2.1 MAIN ELEMENTS OF THE MULTICODE SINGLE
2.1.1 MULTICODE SINGLE
2.1.2 TABLET SUPPORT AND TABLET
The following components are separately packaged in the box of the machine:
• Tablet support and tablet

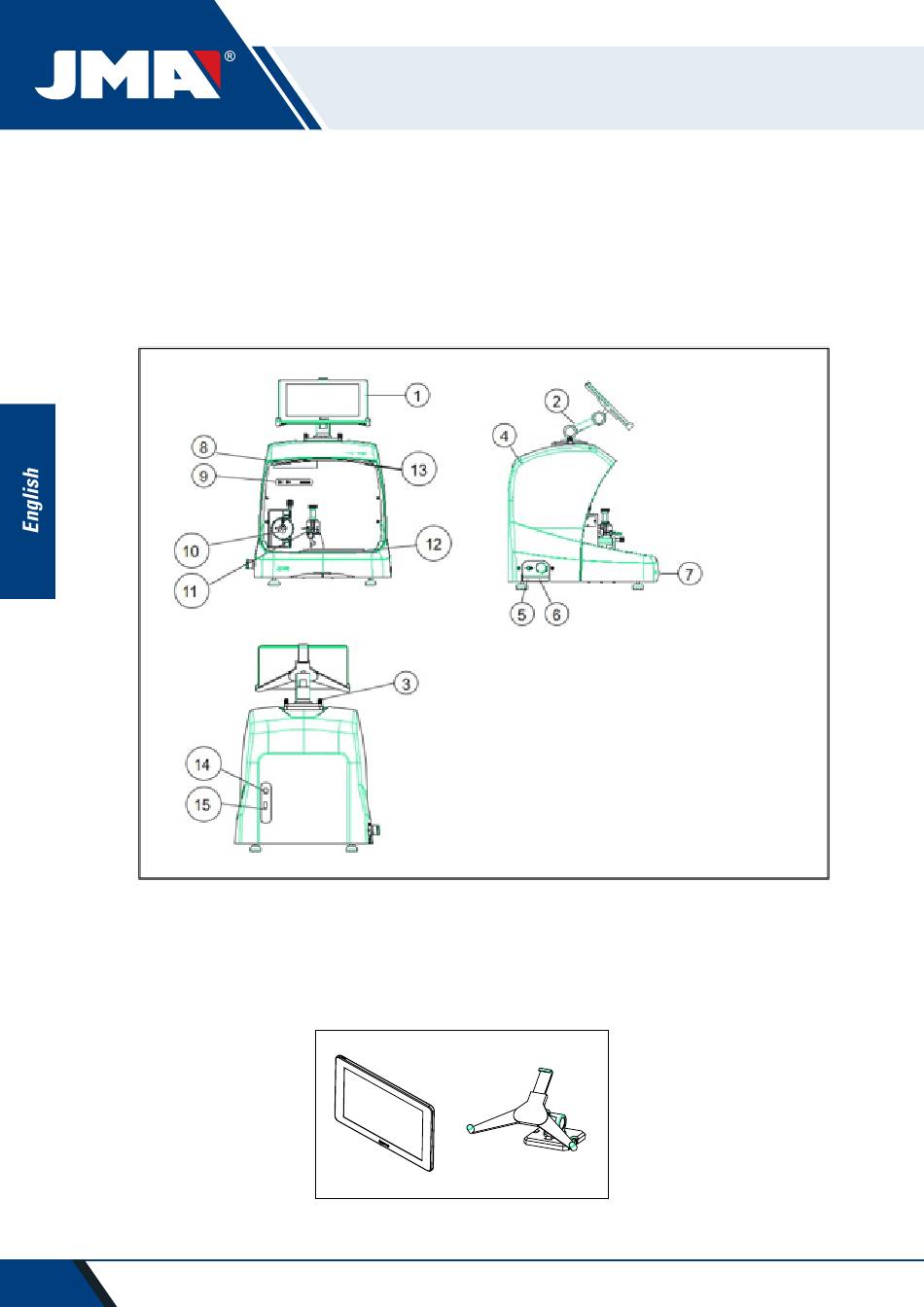

These two components should be installed on the machine as follows (Fig. 2):
50
1. Tablet
2. Tablet support
3. Tablet screws
4. Rear cover
5. Power plug
6. Emergency Stop
7. Swarf tray
8. Led light
9. Led indicators
10. Cylinder keys cutter
11. MP1 clamp
12. XY Carriage
FIG. 2
13. Transparent guard
14. USB Type B connector
15. USB Type A connector
(Tablet charge)
