2-1-3. Assembling the diagonals

• Attach the 2 base cross braces to rungs no. 1 and 5 by following steps 1.1 to 1.4.
• Using a spirit level, check that the base is level in 3 steps (A, B and C). If necessary, adjust the
height by adjusting the castor attachments.
• The wheel is adjusted with the nut: loosen the wing bolt and turn anti-clockwise to raise the
structure.
• Check the verticality of the scaffolding: <1%
1.4

2-1-4. Assembling the access cradle

• The access cradle is erected on rungs 1 and 2.
106-A000035565 - ind.D - 11/2021

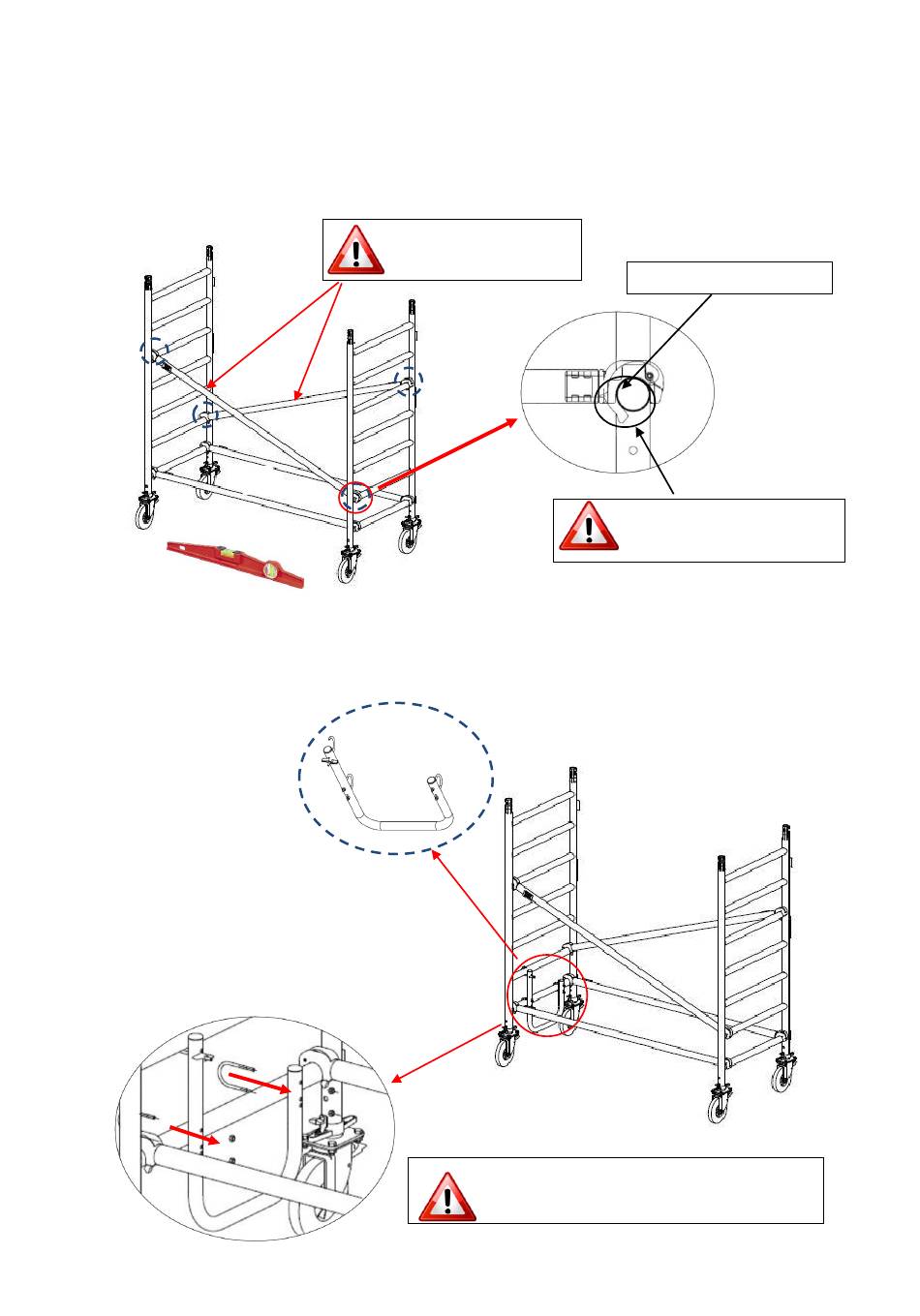

2 x Base diagonals
1.1
C
1.3
A
B
1.2
Attach to rungs no. 1 and no. 2
with 4 x M8 nuts + 1 wing nut
Lock Colour : BLUE
Ensure the lock is correctly
engaged
