Controller Test

a
b
Figure 19
Turbo-V 70 PCB Controller User Manual / 87-900-871-01 (E)
Equipment required
Digital voltmeter (DVM) true RMS.
Dummy load: 3 x 48Ω, 50 W each or 3 x 78Ω, 50 W each.
Potentiometer 50 KΩ, 1/4 W minimum.
Test set up
1
Remove the power cable.
2
Disconnect the Turbo-V controller.
3
Remove the cover from the Turbo-V controller.
4

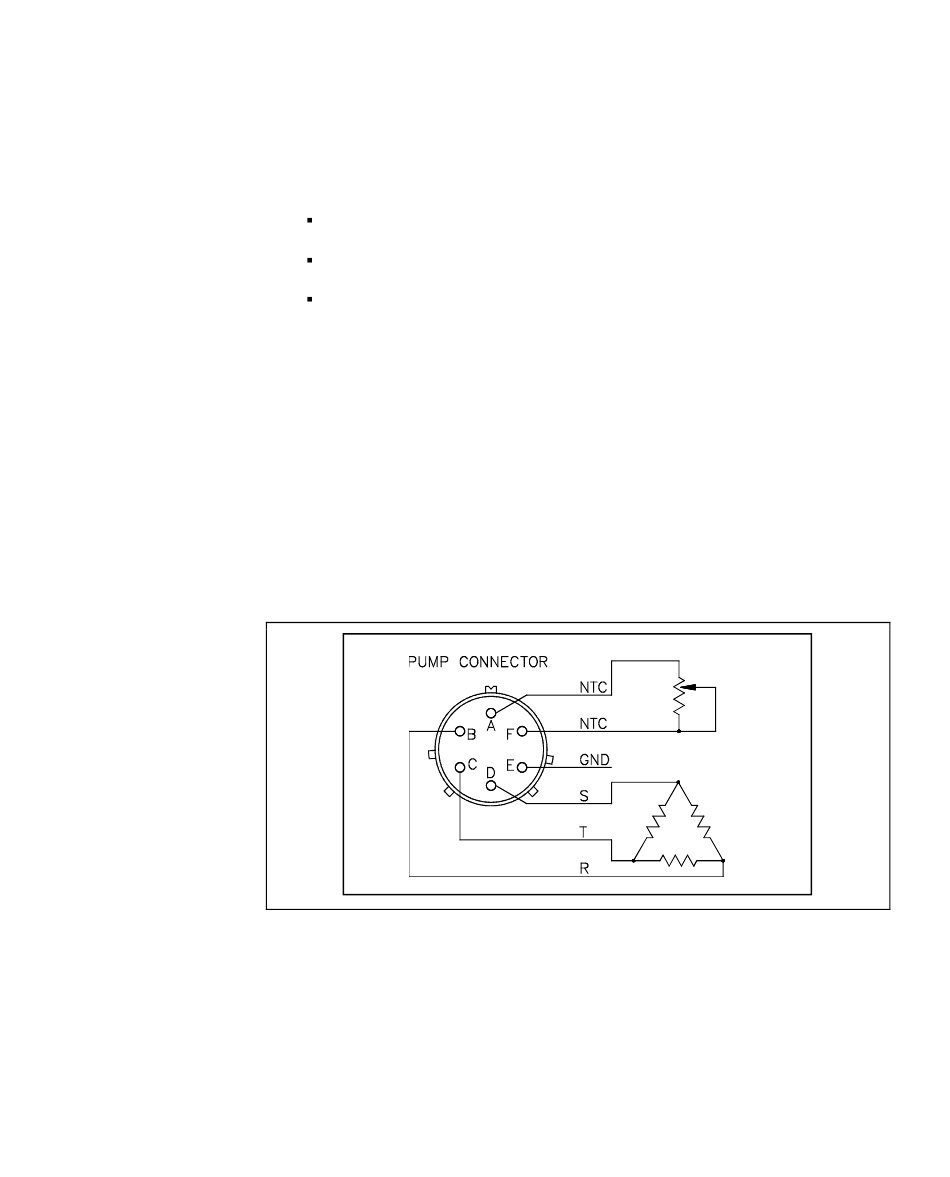

Set potentiometer to 30KΩ and connect it as directed in the
following figure.
5
Check the line voltage selector and connect the power cable
to the appropriate socket.
Dummy load connections
Technical Information

Controller Test
