-11 option
10-Turn Speedpot
Provides finer control of speed. Use standard hook-up directions and Trimpot Chart (page 7).
-17B option
Acceleration Time Changes
Standard acceleration is variable from 0.5 to 8.0 seconds with the trimpot. The deceleration is between 0.06 and 0.8 seconds. This
option extends the maximum acceleration so the range is between 0.8 and 20.0 seconds. Furthermore, this option has the
deceleration time equal to the acceleration time, so deceleration range is also 0.8 to 20.0 seconds (depends on Accel setting, not
an independent setting).
-29 and -29B options
Manual Reversing
Permits reversing of motor. This is accomplished using a 4PDT blocked center switch. When switched between the forward/
reverse positions, a delay is encountered due to the blocked center position, which protects the control from any voltage that may
be at the armature terminals. The center position is OFF/NEUTRAL.
THE MOTOR MUST COME TO A COMPLETE STOP BEFORE CHANGING DIRECTIONS. IF THE MOTOR DOES NOT COME
TO A COMPLETE STOP, SERIOUS DAMAGE TO THE CONTROL MAY RESULT. BYPASS OF THE CENTER BLOCK OF THE
SWITCH MAY RESULT IN DAMAGE TO THE CONTROL.

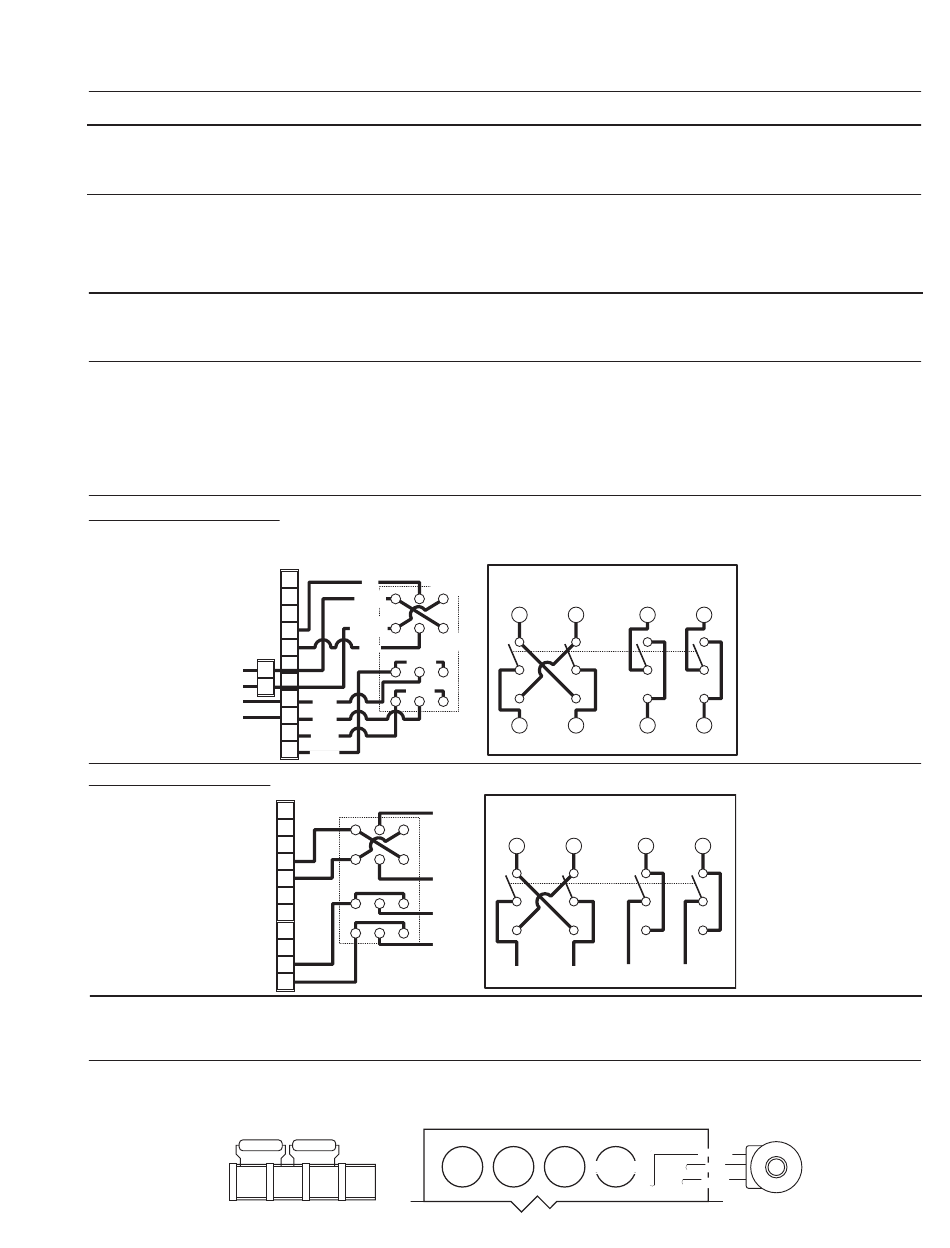

-29 (ENCLOSED VERSION) A 4PDT blocked center-off switch is factory installed into the cover assembly. The two position
terminal strip (P3) is factory installed on the main board (below). The output on P3 is the switched (FWD/REV) output and the output
of terminals P1-4 and P1-5 is not switched.
P3
-1
ARM
ARM
-2
AC
AC
-29B (CHASSIS VERSION) * 250G control with a 4PDT switch (factory provided). The customer provides interconnecting wiring.
-34A option
Torque Control
The TORQUE (CURRENT LIMIT TRIMPOT) is controlled by the faceplate mounted potentiometer. Thus, the internally mounted
MIN trimpot becomes the Speedpot. This speedpot may be moved to a remote location by removing the fixed resistors connected
on P1-1 through P1-3, and installing a standard 5K 2W potentiometer.
