SETTING THE CUT-END GUIDE FOR 90° CUT
Make sure that the disk is perpendicular to the
guide.
1. Block the mitre saw's head in the low position,
close the lock-knob in the transport position
(see Fig.1).
2. Loosen the base rotation knob and position it
at 0°. Re-tighten the base rotation knob
3. Loosen the head bevel knob located on the
back of the machine and set the position the
head at 0°. Tighten again the head bevel
knob.
4. Position one of the sides of a square (not
delivered) against the cut-end guide and the
other side against the disk of the mitre saw.
Make sure that the square is correctly
positioned along the disk, but not touching the
teethes. When
positioned, its two sides must show a continuous contact with the disk and the cut-end guide
5. If this is not the case you can set the cut-end guide as follows:
 Loosen the hexagonal screws and the two knobs fixing the guide extensions. Slide out the two
extensions and pull them off.
 Loosen the 4 hexagonal screws (A) Fig.9 of the two sides of the cut-end guide.
 Position the square against the disk and move the cut-end guide until it shows a continuous contact
with the other side of the square.
 Tighten the 4 hexagonal screws (A) and reassemble the cut-end guide extensions.

SETTING THE UPPER TABLE

Make sure that the disk of the mitre saw is
perpendicular with the base of the machine.
1. Block the mitre saw's head in the low position,
close the lock-knob in the transport position
(see Fig.1).
2. Loosen the rotating base knob and position the
base at 0°. Tighten the knob.
3. Loosen the head bevel knob located on the
back of the machine and set the position the
head at 0°. Tighten again the head bevel knob.
4. Position one of the sides of a square (not
delivered) on the table and the other side
against the disk of the mitre saw. Make sure
that the square is correctly positioned along the
disk, but not touching the teethes. When the
square is correctly positioned, its two sides
must show a continuous contact with the disk
and the table.
5. If this is not the case, please proceed as follows:
 Loosen the bolts (A) Fig.10 (positioned on each side of the head bevel knob) to release the two bolts
(B).
 Loosen the head bevel knob (C) and pull the spindle (D) towards you.
 Position the square against the table.

Adjust the two bolts (B) modifying the inclination, until the two sides of the square are in continuous
contact with disk and table.
 Tighten the head bevel knob (C) and the bolts (A).
 Check again that the disk is perpendicular with the table
 Make sure that the bevel indicator is aligned with 0°
the square is correctly
EN
41

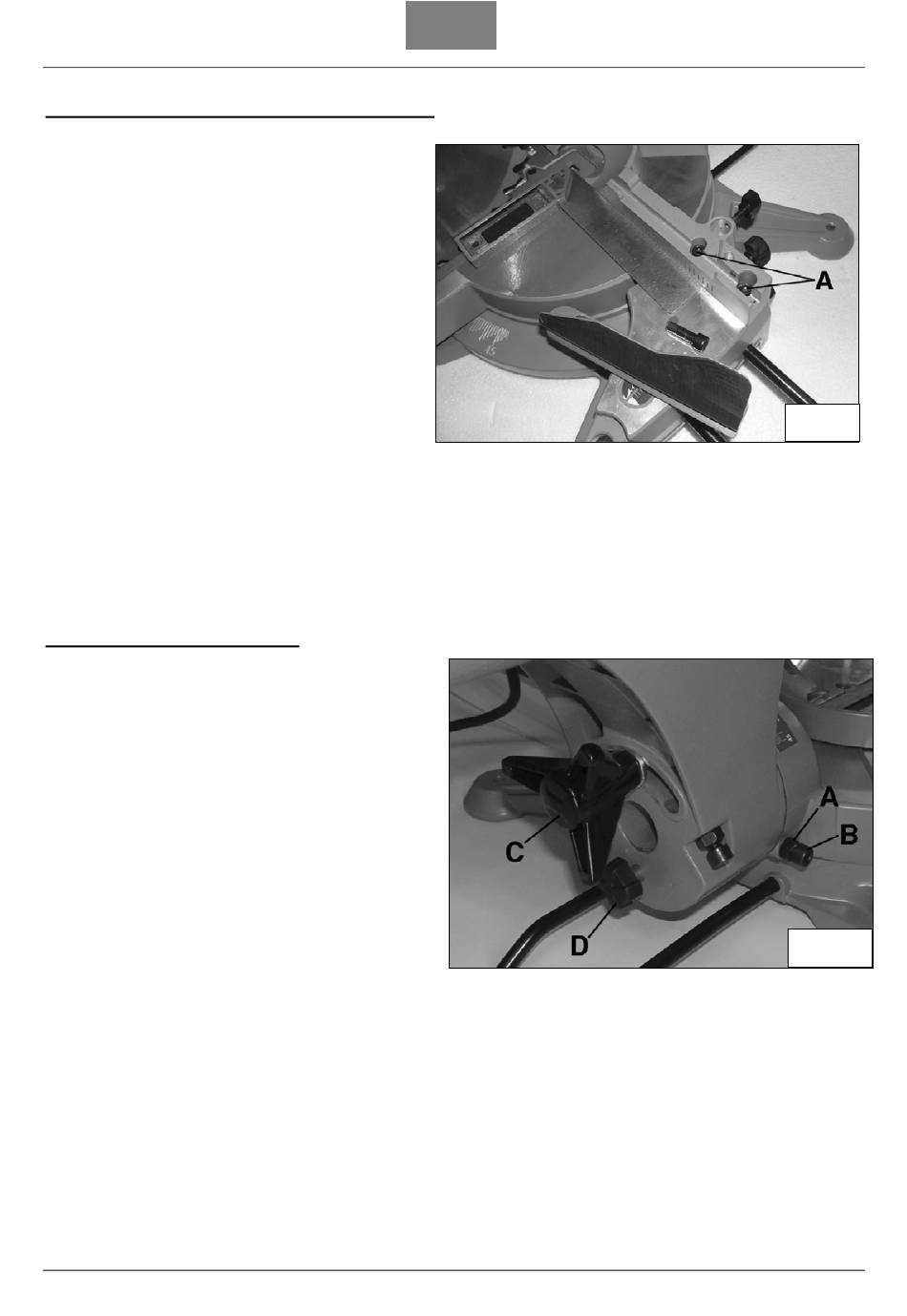

Fig.9
