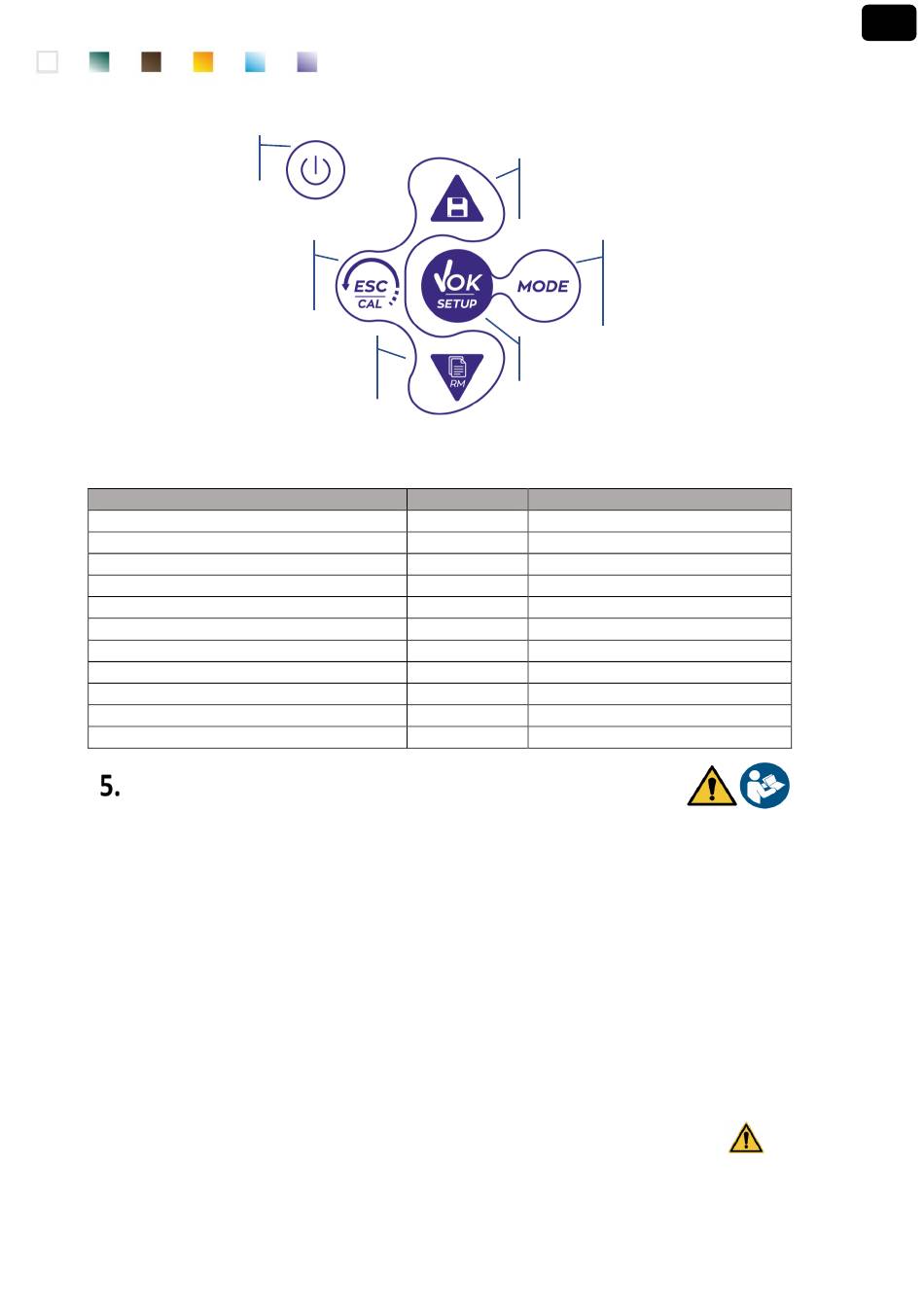

• Keyboard

On-Off button to switch
the device on and off
Meas / Cal key to return to measure
mode and to start calibration
Down directional key to scroll through
the menus and parameters
and to manage the recall of data

• LED

All the instruments are equipped with a two-colour LED (red and green) which provides the user with
important information on the status of the system:
Function
Power on
Power off
Standby
Stable measure/ HOLD
Errors during calibration
Errors during measurement
Time of saving the data
Recall Memory mode
Selection confirmation
DHS activation
DHS deactivation

Installation

• Supplied components

The manufacturer makes available to the local distributor the opportunity to purchase the instrument in
different kits, depending on the sensors the user wants to combine:
The kit REVIO ONLY INSTRUMENT is always supplied with: suitcase with shaped interiors, device with
batteries, 5V adapter with USB cable, S7/BNC connection cable 3 m, NT55 temperature probe 3 m, buffer
solutions in single-dose bottle and/or in sachet, paper tissues, screwdriver, beaker, electrode holder,
multilingual user manual and test report. Different versions are available with sensors already included, or
the possibility of ordering different transport accessories, such as the IP67 waterproof case or the sot case
in eco-friendly material. Contact your local distributor to be updated on the correct composition of the
sales kit.

• Start-up

The device leaves the factory ready to be used by the user.
•
Batteries are included.
•

• Connection of the power supply

• In addition to batteries, the instrument can be powered through electricity grid;
UM ReVio EN rev.0 04.06.2020
Up directional key for scrolling
through menus and parameters
and managing data saving
Enter / Menu key to confirm the chosen values
and enter the setup from the measure mode
LED Description
Green Fixed
Red
Fixed
Green
Flashing every 20 s
Green Flashing every 3 s
Red Flashing every 1 s
Red Flashing every 3 s
Green
On / Off in rapid succession
Green Red Alternate green and red, pause 5 s
Green Switched on for 1 s
Green Fixed
Red
Fixed
10
MODE key to scroll through the
various measurement
parameters, move to the right in
the setup and access into the
full-screen view
EN
