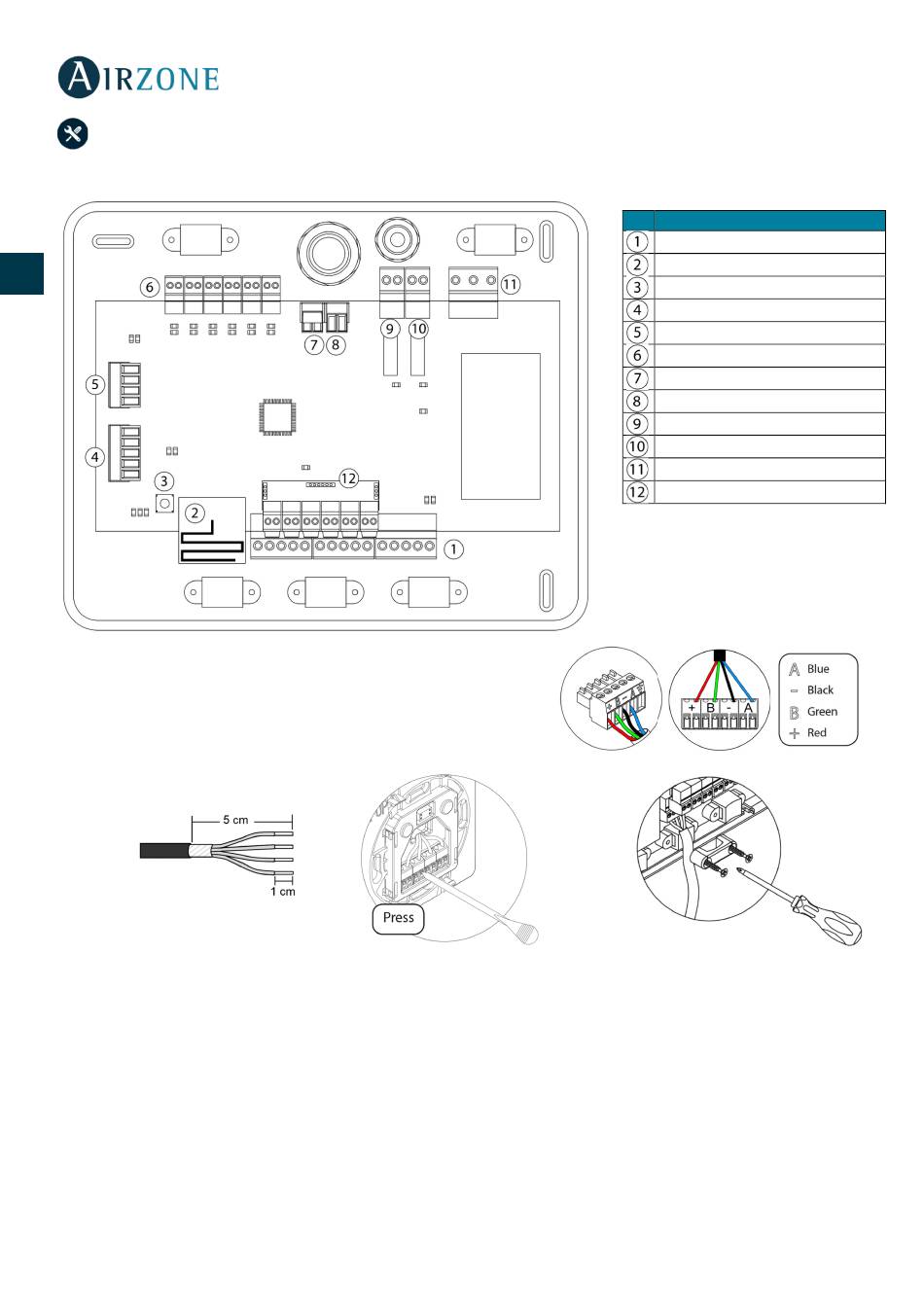

MAIN CONTROL BOARD CONNECTION

Important: Respect the color code for all the system elements.
ES
EN
FR
IT
PT
DE
1.- Thermostat connection
If using a wired thermostat, connect it in one of the 3 Airzone connection
bus terminals. The connection can be both a Bus connection or a star
connection. Use (2x0.5+2x0.22 mm
secure the wires using the turrets.
In case of Wireless thermostat, check it has the battery on.
2.- Connection to the ducted unit
In order to connect it to ducted unit, follow the instructions of the communication gateway sheet. It is recommended to
install the thermostat of the unit.
3.- Other peripherals (AZCE6OUTPUT8, AZX6CCP, AZX6WEBSCLOUD [C/R], ...)
You can find the instructions on how to connect and configure other peripherals on their data sheets.
Important: For elements externally powered at 110/230 Vac, for their communications, it is only necessary to connect the poles
"A" and "B" of the bus.
24
2 ) Airzone wire. For added security,
No. Description
Airzone connection bus
Wireless module
SW1
Automation bus
AC unit bus
Actuator outputs
Alarm input (normally closed)
Temperature probe
CMV/Boiler
AC Start-stop relay
Power supply
On/Off module
Important: Use a shielded twisted cable to
control the inputs of the On/Off module.
