TEMPERATURE MANAGEMENT SYSTEM
• Carefully remove A G
rctic el
of use. Discard used A
rctic
procedures for medical waste.
• The USB data port is to be used only with a standalone USB flash drive.
Do not connect to another mains powered device during patient treatment.
• Users should not use cleaning or decontamination methods different from
those recommended by the manufacturer without first checking with the
manufacturer that the proposed methods will not damage the equipment.
Do not use bleach (sodium hypochlorite) as it may damage the system.
• Medivance will not be responsible for patient safety or equipment
performance if the procedures to operate, maintain, modify or service the
Medivance A S Temperature Management System are other than
®
rctic un
those specified by Medivance. Anyone performing the procedures must be
appropriately trained and qualified.

System Setup

Unpack
1) Unpack the A S Temperature Management System Control
®
rctic un
Module and accessories.
2) Allow the control module to remain upright for at least 2 hours prior to
completing the installation and setup procedure in order to allow the chiller
oil to settle. Damage to the chiller compressor may result otherwise.
Connections
1) Use only Medivance approved cables and accessories with the
A S Temperature Management System Control Module.
®
rctic un

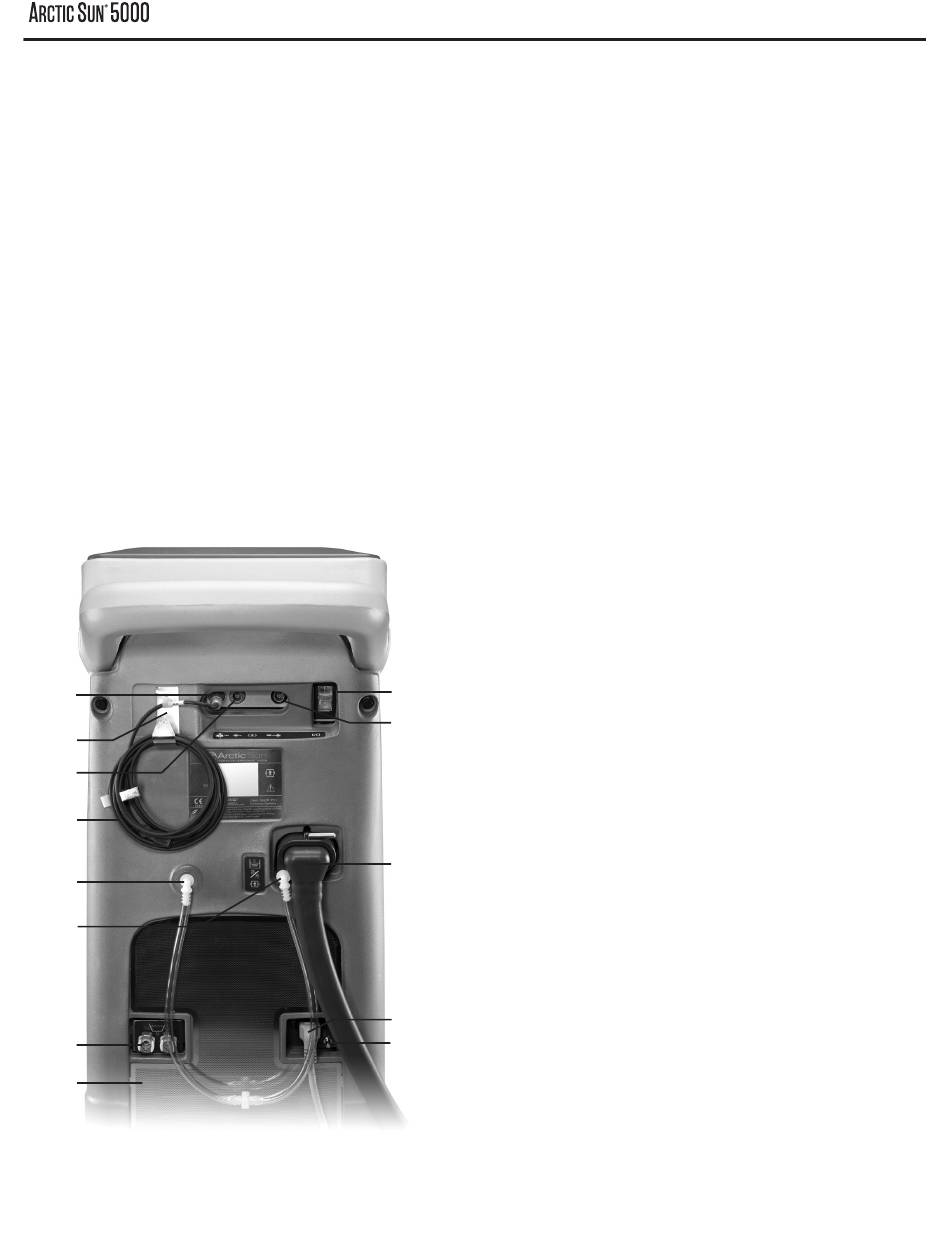

Connect the Fluid Delivery Line, Patient Temp 1 cable, Patient Temp 2
cable (optional) and Fill Tube to the back of the control module.
2) Plug the Power Cord into the wall outlet. Position A
Temperature Management System so that access to the power
cord is not restricted.
Patient
Temp 1
Strain Relief
Patient
Temp 2
Patient
Temp Cable
Fill Tube
Storage
Fill Tube/
Port
Drain Ports
Air Filter
4
Pads from the patient's skin at the completion
™
G Pads in accordance with hospital
™
el
S
rctic
Power On
1) Turn the power ON by activating the Power Switch.
2) The control module will automatically go through a brief self-test of the
independent safety alarm.
3) A New User Training module option is available from the start up screen.
4) When the self-test is complete, the Patient Therapy Selection screen
will appear on the control panel.
Fill Reservoir
1) Fill the reservoir with sterile or distilled water only.
2) Four liters of water will be required to fill the reservoir at
initial installation.
3) Add one vial of A
Solution to the sterile or distilled water.
4) From the Patient Therapy Selection screen, press either the
Normothermia or Hypothermia button, under the New Patient heading.
5) From the Hypothermia or Normothermia therapy screen, press the
Fill Reservoir button.
6) The Fill Reservoir screen will appear. Follow the directions on
the screen.
Functional Verification
Perform the following functional verification procedure after initial setup
and installation of the control module.
1) Power On the control module
2) From the Patient Therapy Selection screen, press the Hypothermia
button to display the Hypothermia therapy screen.
3) From the Hypothermia therapy screen, press the Manual Control
button to open the Manual Control window.
®
un
4) Use the Up and Down arrows to set the Manual Control water target
temperature to 40 °C and the duration to 30 minutes.
5) Press the Start button to initiate Manual Control. Allow at least
3 minutes for the system to stabilize.
6) Monitor the flow rate and water temperature in the System status area
on the Hypothermia therapy screen.
7) Verify that the flow rate reaches at least 1.5 liters/minute.
8) Verify that the water temperature increases to 30 °C.
9) Press the Stop button.
10) Set the Manual Control water target temperature to 4 °C and the
duration to 30 minutes.
11) Press the Start button to initiate Manual Control.
Power Switch
12) Monitor the flow rate and water temperature in the System status area
of the Hypothermia therapy screen. Verify that the water temperature
Patient
drops to 6 °C.
Temp
13) Press the Stop button to stop Manual Control
Out
14) Press the Cancel button to close the Manual Control window
15) Power Off the control module.
Chapter 2 – Patient Therapy
Place A
Fluid rctic
Read the Instructions for Use that accompany the A
Delivery
Examine each pad for damage prior to placement.
Line
Connect A
Orient the blue and white colors on the pad line connector and Fluid
Delivery Line. While holding the pad line tubing, insert the clear pad line
connector into the Fluid Delivery Line manifold. Do not press or squeeze
the wings when connecting. The connector will click into place.
Power Cord

Temperature Probe Placement

Patient temperature control with the A
Equipotential
System requires patient temperature feedback provided by an indwelling
Stud
patient temperature probe connected to the Patient Temperature 1
connector on the back of the Control Module. Any commercially-available
Yellow Springs Instrument 400 Series (YSI 400) compatible patient
temperature probe can be connected to the A
Management System. Refer to the manufacturer's Instructions for Use
for the specific indications and temperature probe placement.
O P E R A T O R ' S M A N U A L
S Temperature Management System Cleaning
®
rctic un
G

Pads

™
el
G Pads
™
rctic el
S
rctic un
rctic
G Pads.
™
rctic el
Temperature Management
®
S Temperature
®
un
