The Linear Plus Tower and RM are equipped with a serial interface COM 3
and an interface slot COM.
These interfaces can be used for:
• Direct communication between UPS and a workstation/server
• Integration of the UPS as client into a network with centralized
monitoring via a ManageUPS Net SNMP adapter to put in slot COM
• Transfer of operational states to external alarm systems via voltage-free
contacts: with interface card SIC to put slot COM
• Life.net adapter to put in slot COM
The necessary communication software packages and interface cables are
available as options.

Serial interface COM 3

The 9-pole SUB-D connector (pin contacts) contains RS 232 compatible
signals.

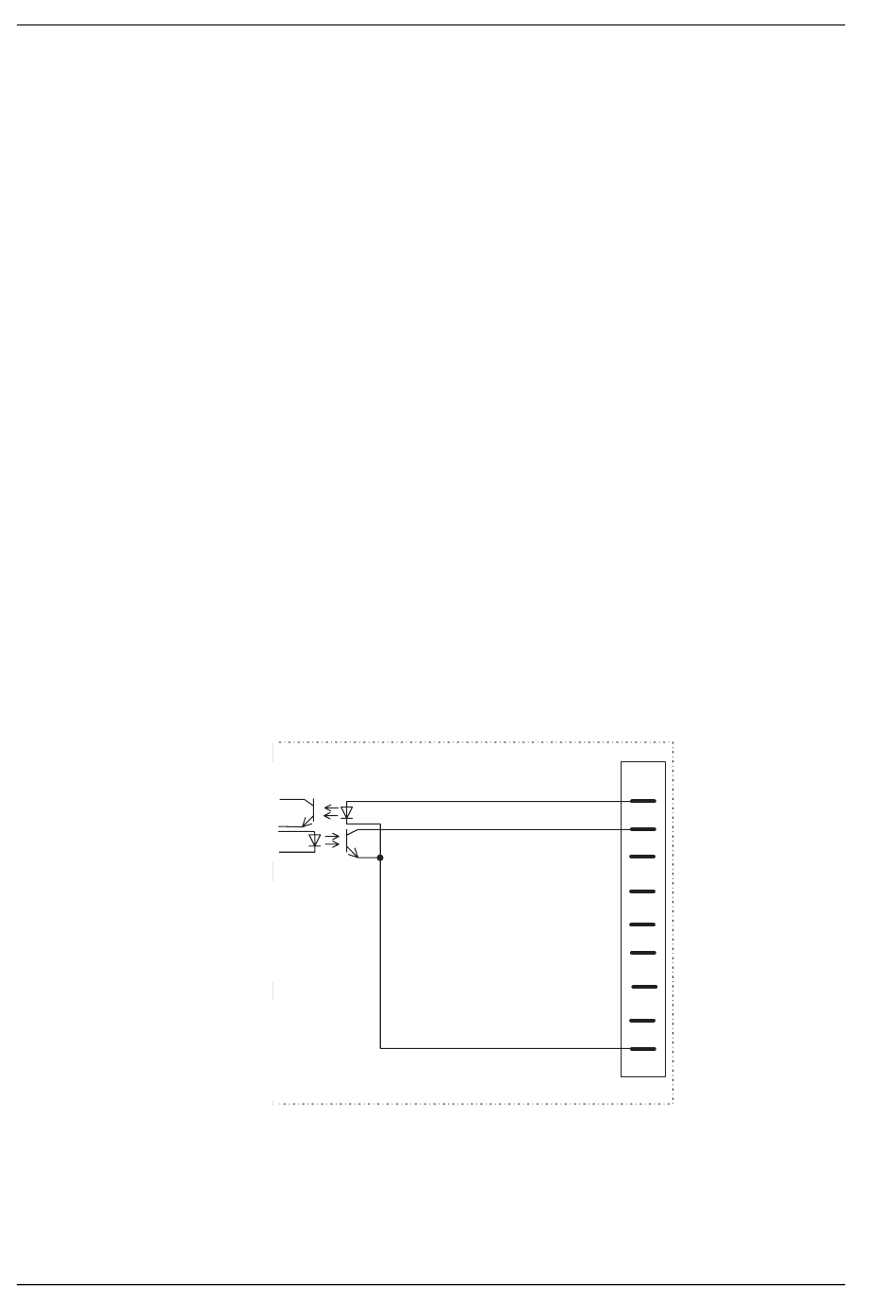

Fig. 28: Serial interface COM 3
The interface COM 3 is galvanically isolated from primary UPS circuits.
