4 Acquiring CEPH Images
The image appears in real time on the imaging GUI.
3. Click the Save button to save the acquired image. If automatic save has
been selected as a default setting, the image will be saved automatically.
Sample images: with One shot type sensor

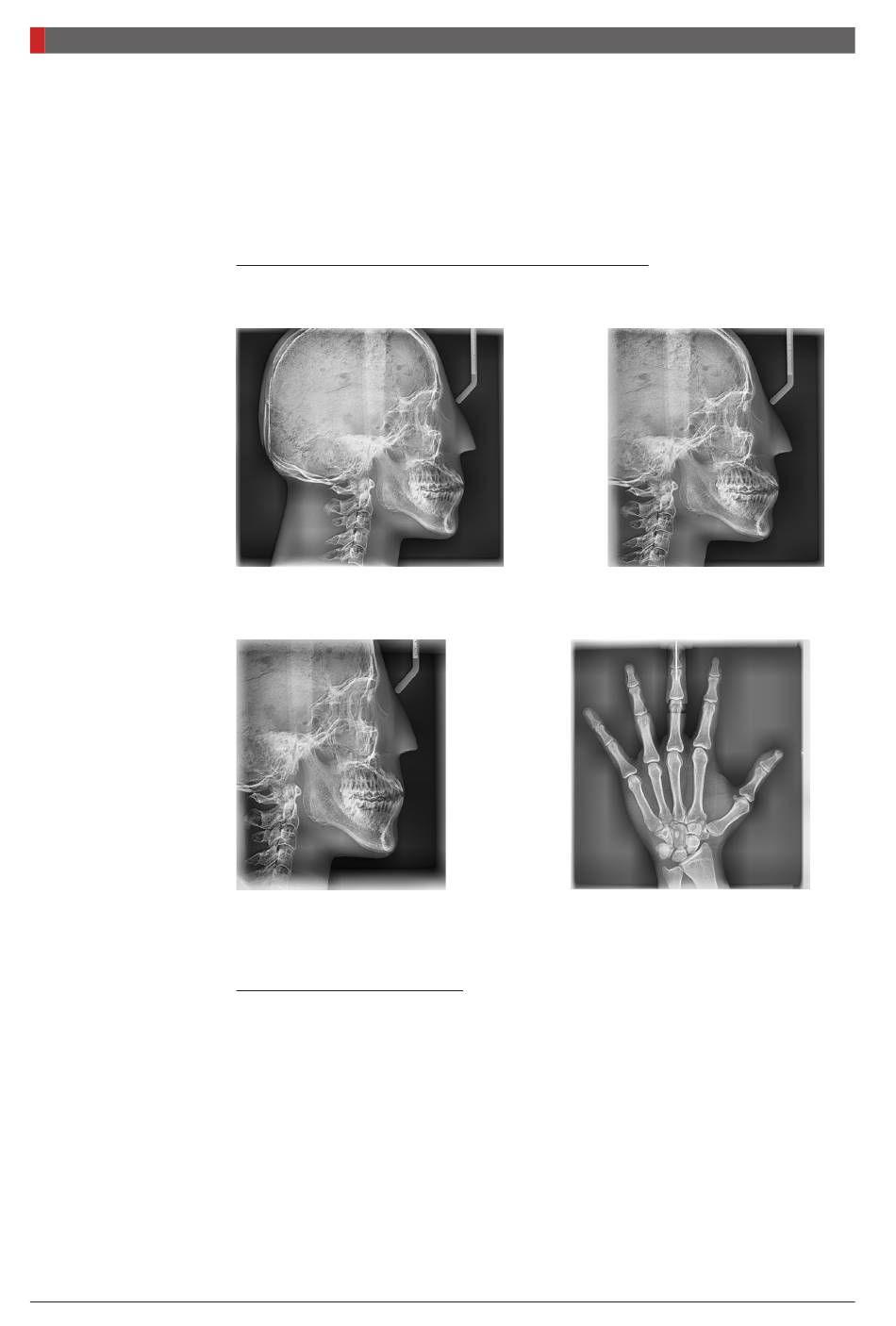

Lateral (Unit: inches)
Full Lateral : FOV 12 x 10 (inches) Lateral : FOV 9 x 10 (inches)
30.48x25.40 (cm) 22.86x25.40 (cm)
FOV 8 x 8 (inches) Carpus
20.32x20.32 (cm)
After Image Acquisition
After the image has been acquired, perform the following tasks:
■ Fold away the nasal positioner.
■ Loosen the ear rod supports and remove them from the patient's ears.
■ Release the patient.
