AirQ. Allows activation of the air quality control/metering devices AirQ Box and AirQ Sensor.
•
Lutron Palladiom. Allows integration with Lutron Palladiom thermostats.
AIRTOOLS SETTINGS ON AIRZONE CLOUD
General parameters
•
Installation type. You can configure your installation as:
a. 2 pipes (by default). For those installations where there is only one battery. It is only
necessary to connect one of the 2 probes supplied to inputs AI2 or AI3.
4 pipes. For those installations where there is a battery for cooling and another for
b.
heating. It is necessary to connect the probe to the cooling battery at the AI2 input and
the heating battery probe at the AI3 input.
c. 2-pipe / 2-wire. For those installations where a battery and an auxiliary heat device
configured as a support heater are available. This setting allows you to activate the
emergency heat function in the case of a cold temperature in the battery. In the
emergency heating function, the battery valve will be kept open at all times to control
if the installation starts working in heat. If the battery temperature enters heating
production conditions, the emergency heat function will be deactivated. Once heating is
started with the auxiliary stage, the heater will not be deactivated until the next change
of state (On/Off) or mode.

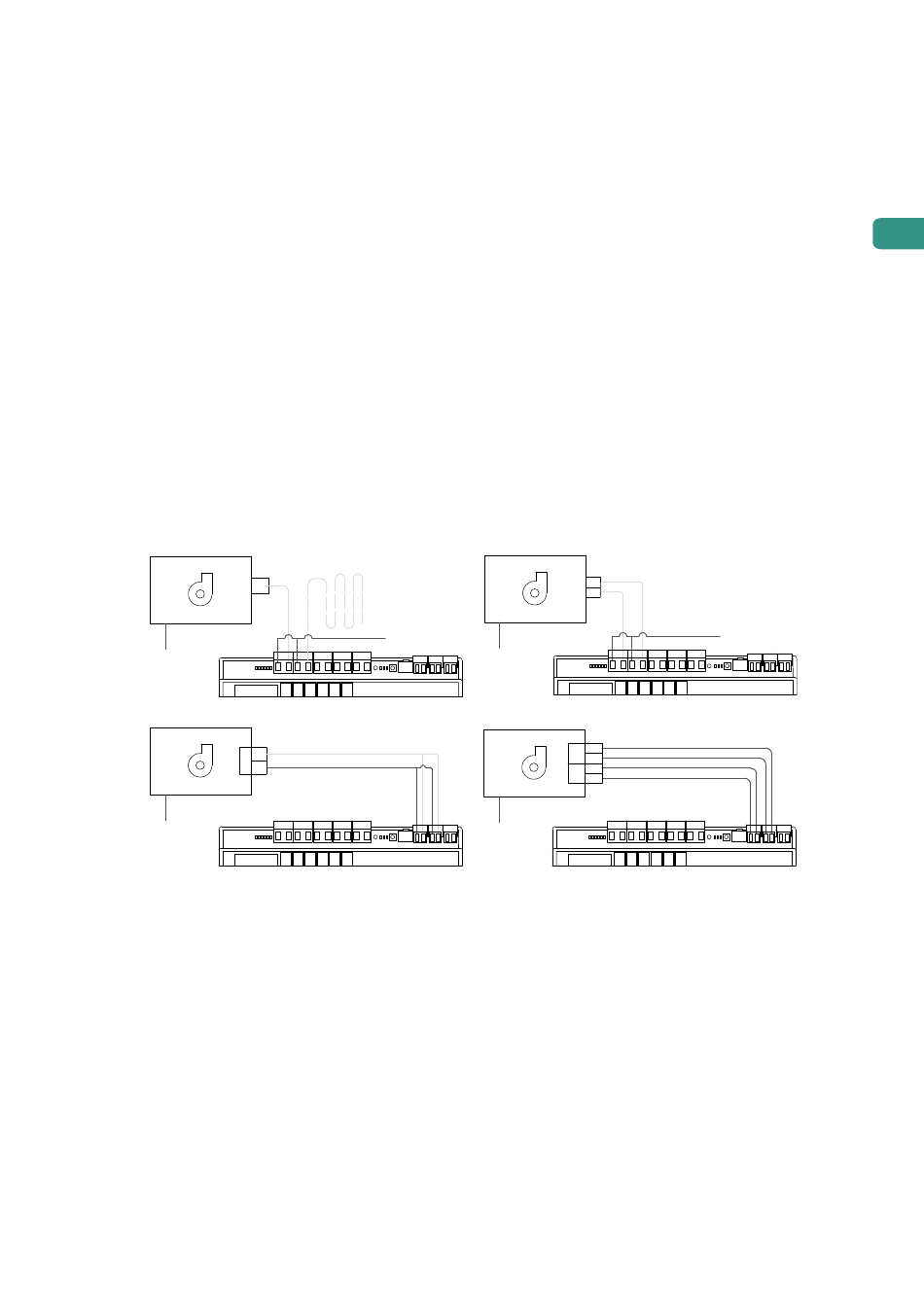

2 Pipes
W-Y
F-Coil
N
2 Pipes
-
W-Y
+
F-Coil
N
•
Preparing time. It can only be configured in case of 2 pipes / 2 wires installations. Allows
configuring the battery probe reading time before switching on the fan.
•
Automatic mode change depending on battery temperature (2-pipe installation). Only
available if the AI2 battery temperature probe is installed (see fan Auto Mode for more
information).
•
Dehumidifier function. Only available if the cooling coil temperature sensor (AI2) is
installed. This function allows to select the dry mode when the coil temperature is lower
than 10ºC. In dry mode, the cooling and ventilation valve will be activated depending on the
configured humidity and the setpoint temperature of the zone.
•
Steady ventilation. This parameter can be used to configure the behavior of the fan when
comfort is reached, independently for cooling and heating mode.
Auxiliary heat (optional)
2 wires
L
4 Pipes
W
Y
F-Coil
N
4 Pipes
-
W
+
-
Y
+
F-Coil
N
