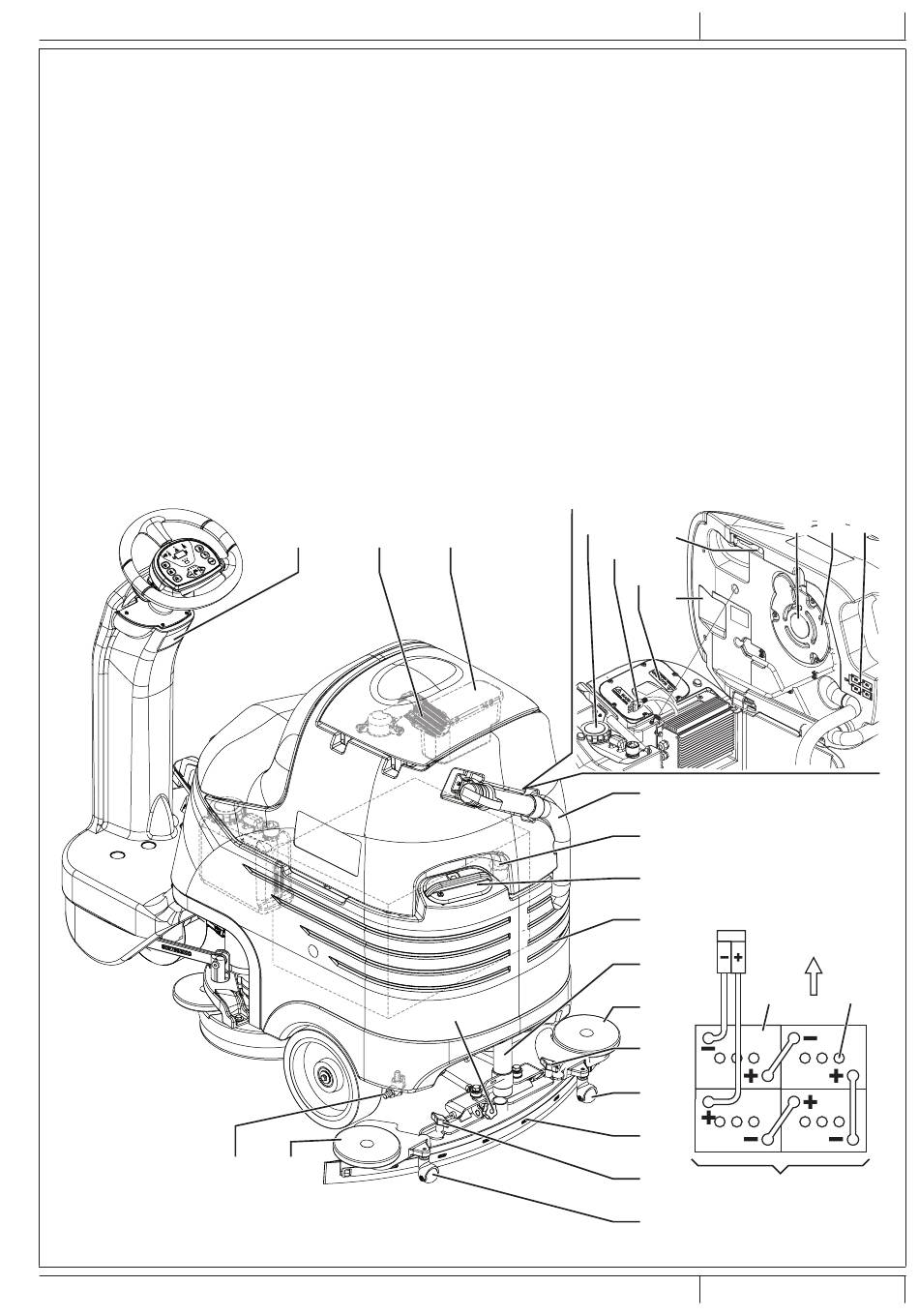

MACHINE STRUCTURE (Continues)
21. Serial number plate/technical data
22. Solution/clean water tank
23. Solution/clean water tank filler plug with removable filler
hose
24. Recovery water drain hose
25. Tank assembly stand
26. Container with debris collection grid
27. Vacuum grid with automatic shut-off float
28. Adapter for water removable filler hose and squeegee
vacuum hose
29. Solution/clean water tap
30. Squeegee
31. Squeegee vacuum hose
32. Squeegee bumper wheels
33. Squeegee support wheels
10/10
21 27
29 32
INSTRUCTIONS FOR USE
34. Squeegee mounting handwheels
35. Squeegee balance adjusting handwheel
36. Vacuum system motor
37. Vacuum system motor filter
38. Battery connection diagram
39. Batteries
40. Battery caps
41. Battery charger cable
42. Detergent tank
43. Electronic component compartment cover
44. Lifted tank assembly and driver's seat
42
26
41
35
9098827000 - SC3000 26 D
37 36 38
25
43
44
24
28
23
22 24V
Front
31
39
32
34
33
30
34
38
33
ENGLISH
40
P100359
