11 BATCHING (continued)
11.1 CREATING A NEW BATCH
Users can create a sequential batch (MTG6 & MTG8) or a grid batch
(MTG8 only):
Sequential batching; list based storage of readings.

Grid batching; readings are taken and stored in a grid / table

format. The user defines the number of rows and columns and
the direction in which readings are taken and stored.
To create a new sequential batch:
1 Press Batch/New Batch/Batch Type.
 
2 Use the
To create a new grid batch (MTG8 only):
1 Press Batch/New Batch/Batch Type.
 
2 Use the
 
3 Use the
'Select' to toggle between across columns () or down rows ( ).
 
4 Use the
'Select' then use the
required and press 'Ok'.
 
5 Use the
'Select' then use the
columns required and press 'Ok'.
The maximum number of columns available is dependent on the number

of rows selected and vice versa.

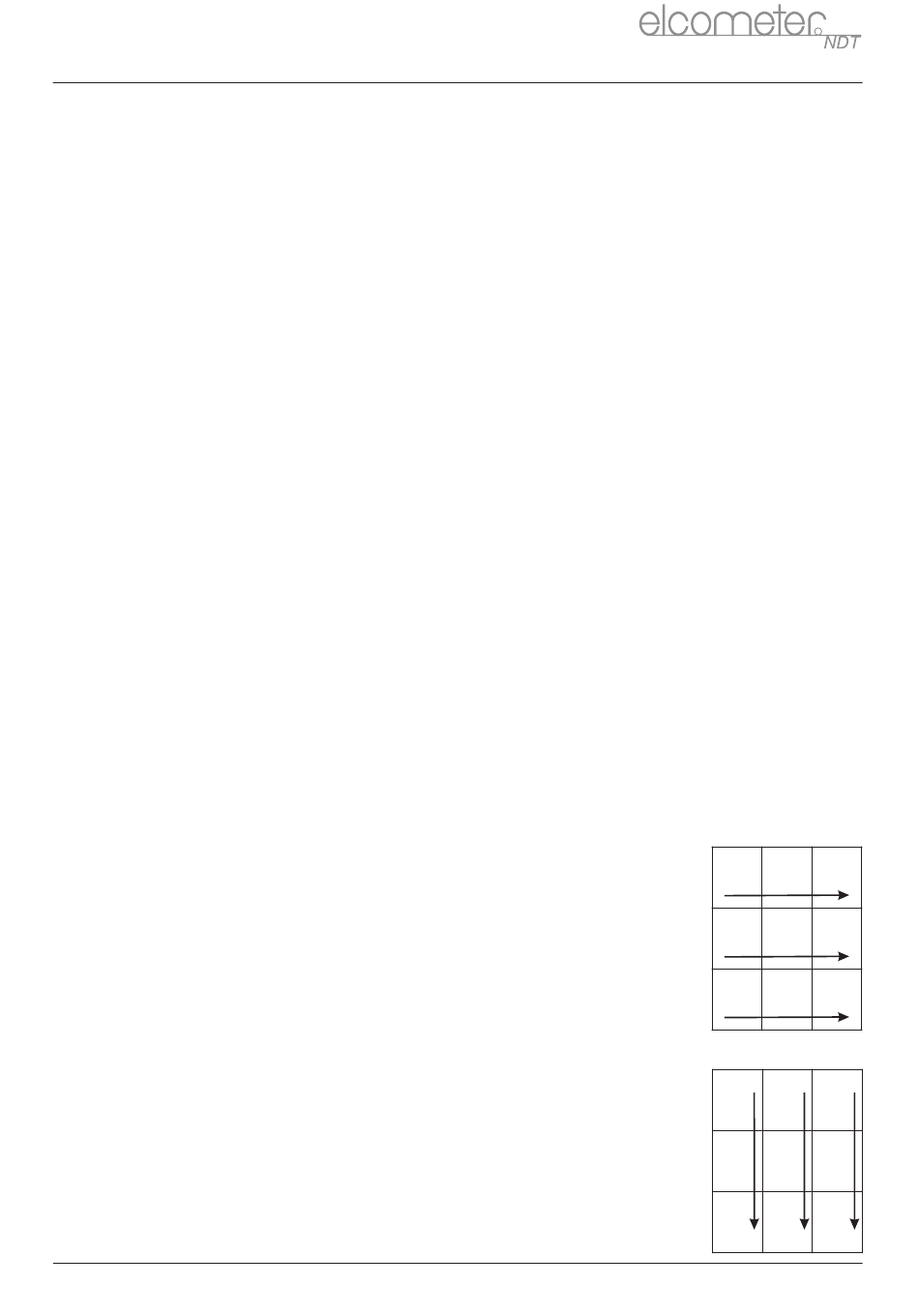

For example:
a) Increment Direction = Across,
Number Of Rows = 3,
Number Of Columns = 3.
The first reading will be saved in cell A1, the
second A2, the third A3, the fourth B1 and so on.
b) Increment Direction = Down,
Number Of Rows = 3,
Number Of Columns = 3.
The first reading will be saved in cell A1, the
second B1, the third C1, the fourth A2 and so on.
