Airfusion Flusso Installation Instructions
WARNING: To avoid possible electrical shock, be sure you have turned off the power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied
with your fan. Secure the connectors with electrical tape. Make sure there are no loose wire strands or
connections.
9. Pull the saftey cable onto the hook scew and tight, tie the safety cable and hook screw with Cable Tie.
(Fig. 8)
10.After connecting the wires, Turn the connecting nuts upward and push the wiring into the fan hanging
canopy.
11. Carefully put the Receiver into the fan hanging canopy. Take care not to damage or loosen any of the
wiring.
5 | P a g e

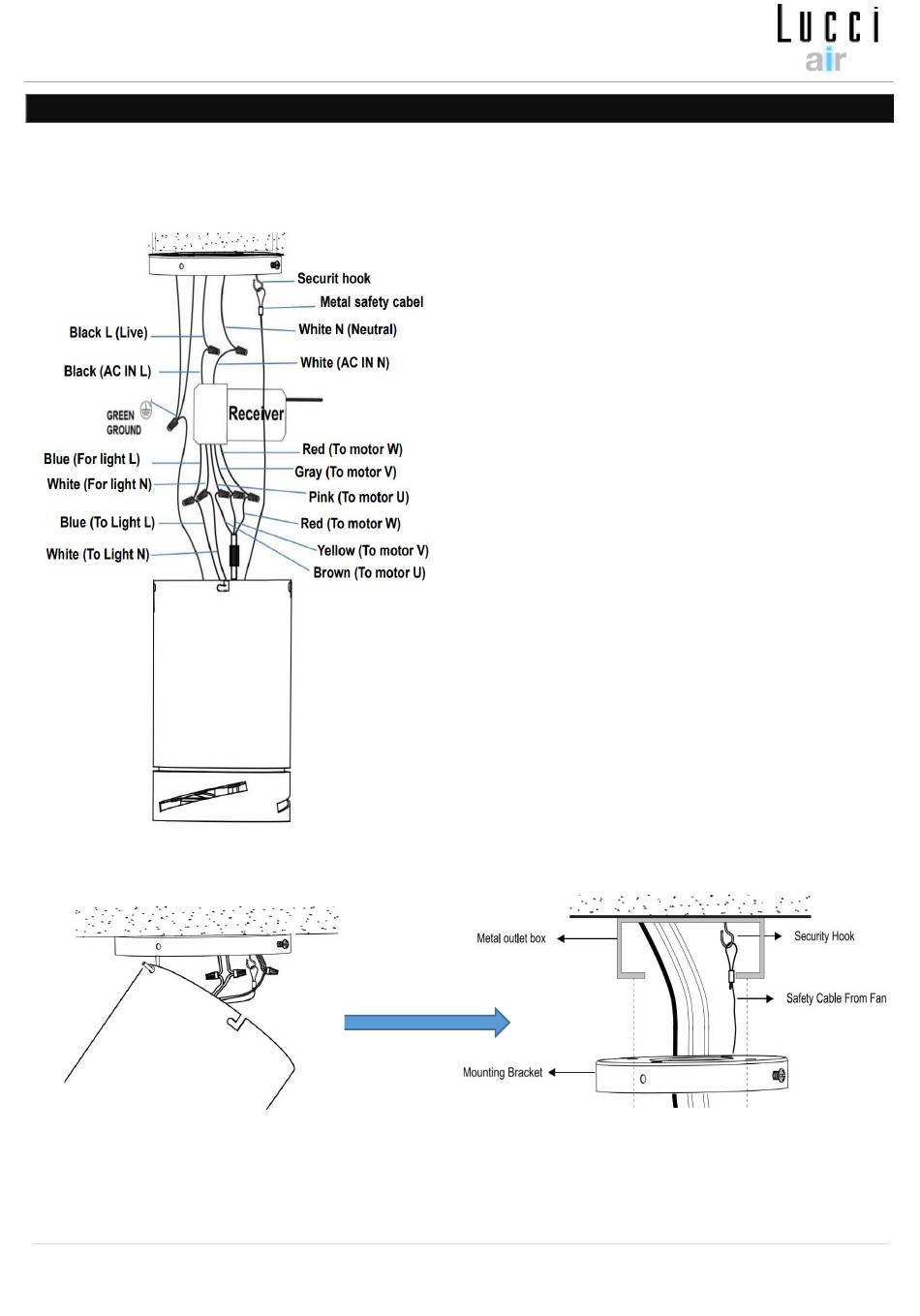

ELECTRICAL WIRING DIAGRAM

Connect the household live supply wire (black) to
1.
receiver input wire (black, AC IN L) as shown in
2. Connect the household neutral supply wire (white) to
the receiver input wire (white, AC IN N).
3. Connect the household ground wire to the fan
mounting bracket ground wire (green) and fan body
ground wire.
4. Connect the reveiver output wire (white, for light N) to
motor input wire (White, To Light N).
5. Connect the reveiver output wire (Blue, for light L) to
motor input wire (Blue, To Light L).
6. Connect the reveiver output wire (Pink, to motor U) to
motor input wire (Brown, To motor U).
7. Connect the reveiver output wire (Gray, to motor V) to
motor input wire (Yellow, To motor V).
Fig. 7
8. Connect the reveiver output wire (Red, to motor W) to
motor input wire (Red, To motor W).
Fig. 8
(Fig. 7)
