BH - Quick-fitting sockets :
Connect the red and blue tubes of the wire feeder/
power source connection. NOTE: Match the hose
and socket colours correctly.
BI - Quick-fitting sockets:
Connect any hoses leaving a water-cooled torch.
NOTE: Match the hose and socket colours correctly.
Selection key V. Each time it is pressed briefly,
it selects the value adjustable via the knob I. The
values that may be selected are in relation to the
type of welding process selected and are displayed on
the LEDs A/B/C/D.
LED A Current.
Indicates that the display M shows the preset weld-
ing current or, in combination with the lighting of the
LED F, the actual welding current.
Active in all welding processes.
LED B Wire speed.
Indicates that the display M shows the welding wire
speed. Active in all welding processes.
D C B A V
I
S
U
T
BA
Y
BI
M E F G H N
LED C Thickness.
The display M shows the recommended thickness
based on the current and wire speed set. Active only in
synergic MIG processes.
LED D JOB.
Indicates that the display M shows the program
number set. Active only in MIG processes.
LED E Globular position.
May not be selected. Active in synergic MIG mode.
When lit, it signals that the pair of values selected for
welding may generate unstable arcs and cause spatters.
LED F Hold.
May not be selected. Activated in MIG and MMA
welding, signals that the values shown on displays M
and N (normally Amperes and Volts) are those used in
welding. Activated at the end of each welding session.
LED G SYN.
Activated in MIG welding. Lights to signal that the
welding machine is working in synergic mode.
BE
L
BD
O
P
R
Q
W
BF
BB
BH
BI

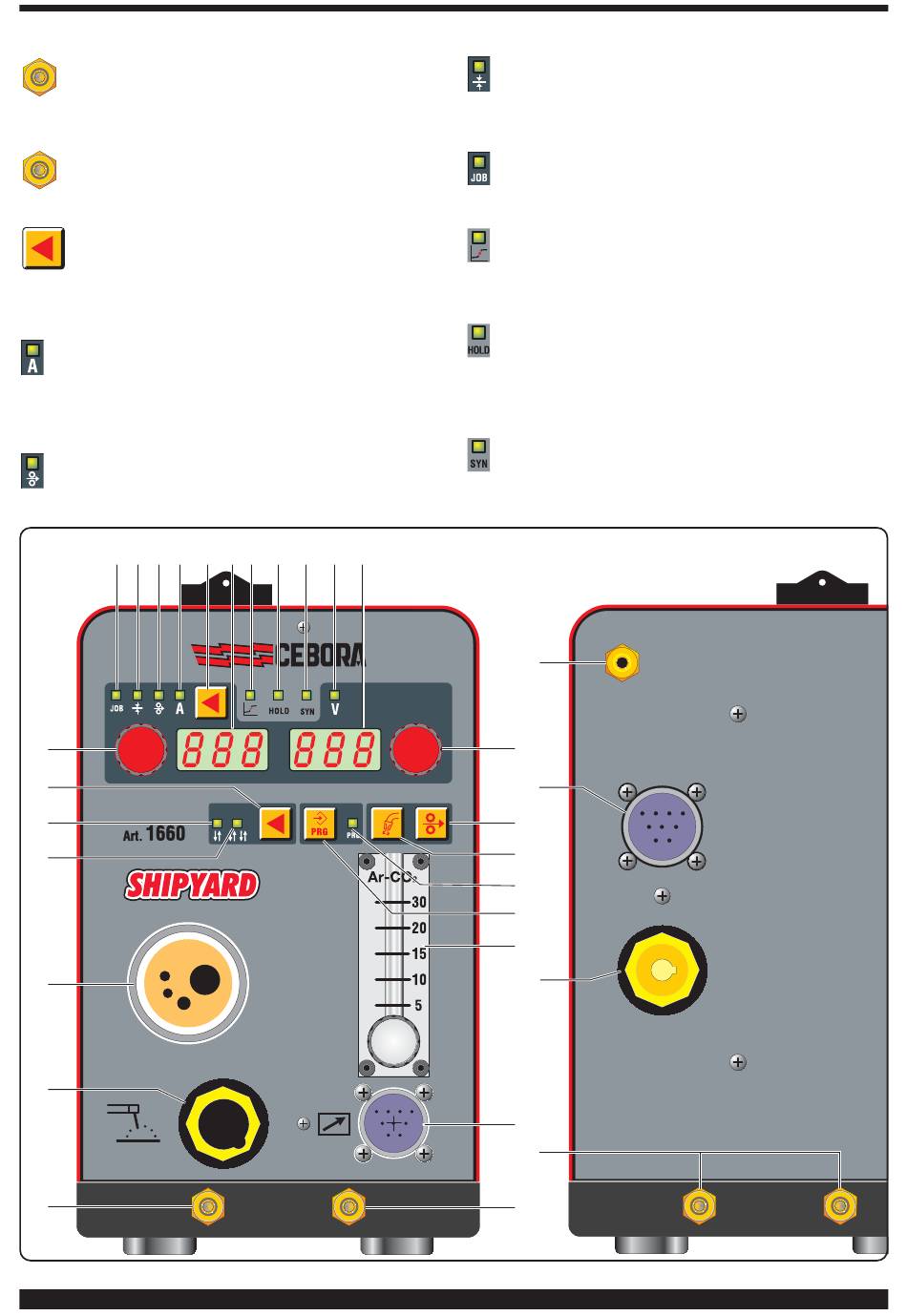

Fig. 1
