Basic operation

3 Basic operation
The operation described below requires at least a firmware version 1.02.x or above.
The firmware update is described in a separate manual, which is supplied as a PDF file on the USB stick.
Further information and downloads at: www.messko-mlog.com

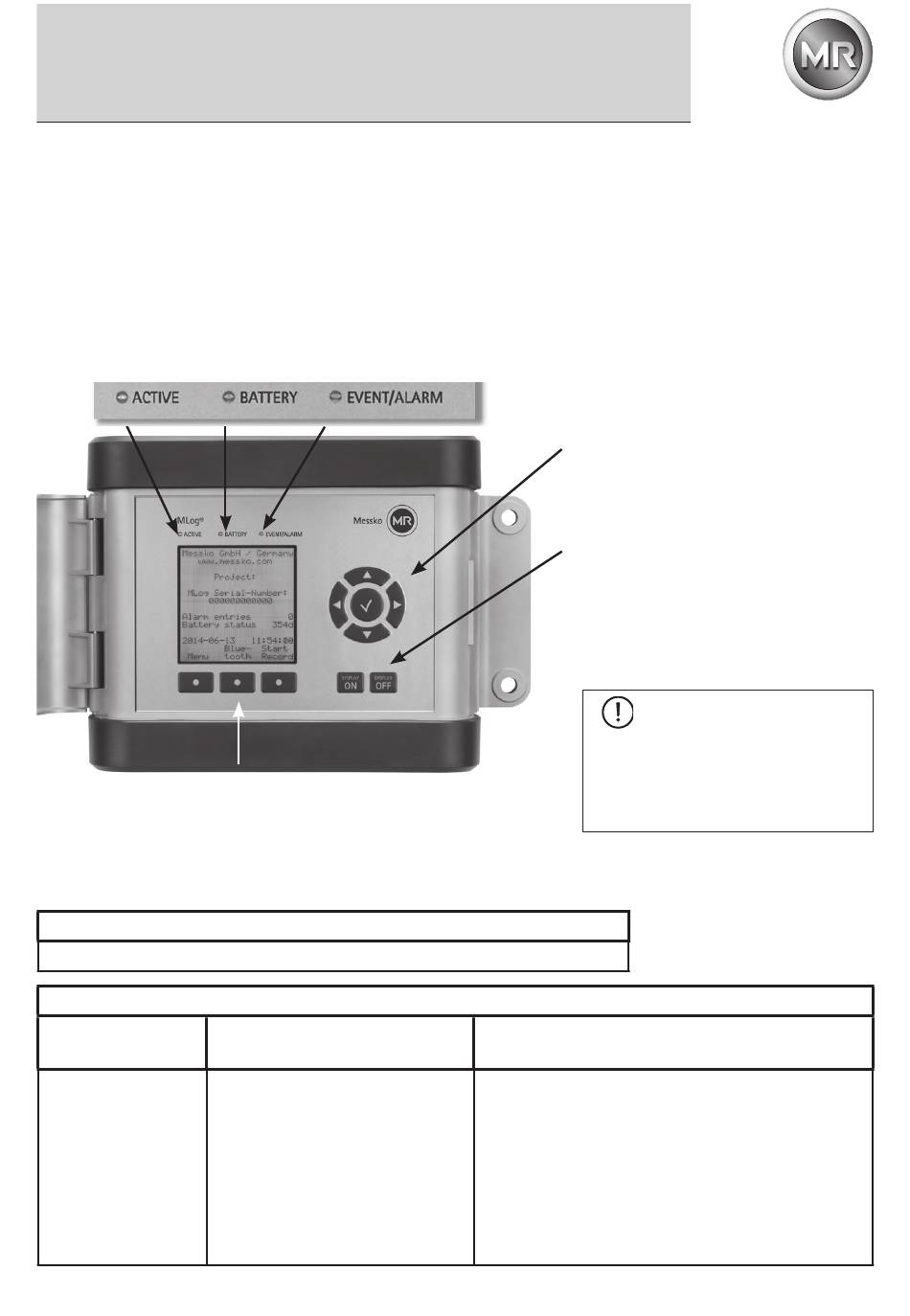

3.1 MLog IM100 operating elements and status LED
3 softkeys for
level operations (e .g . cancel, back, save, . . .)
3.2

MLog IM100 status check via display

Function: Switch on display
Action: Press „DISPLAY ON" button longer than 2 seconds
Function: Battery prognosis
Action
Press „DISPLAY
ON" button longer
than 2 seconds
BA3431002/04 ES-EN
scrolling page by page, higher
MLog display Home Menu
Battery status
The remaining MLog operating
time in days is indicated
Status LED
D-pad
Navigation within a screen page (e .g .
modify values, switch between values,
confirm entries)
Display On / Off
Switch display on/off
(see table for detailed functions)
(Display will automatically turn off after
approximately 3 minutes if the MLog
buttons are not used)
The start of a recording is prevented
when the battery status is weak,
but the timer recording is started
(without GPS/GSM/Bluetooth) .
Note
Prediction of the remaining operating time depends
on the actual configuration of the MLog, such as time
intervals for measurements, sending of text messa-
ges and recording of GPS data . In this prediction,
no consideration is given to possible future shock
events, attempts to determine the GPS position after
a shock or attempts to send SMS messages after a
shock event .
