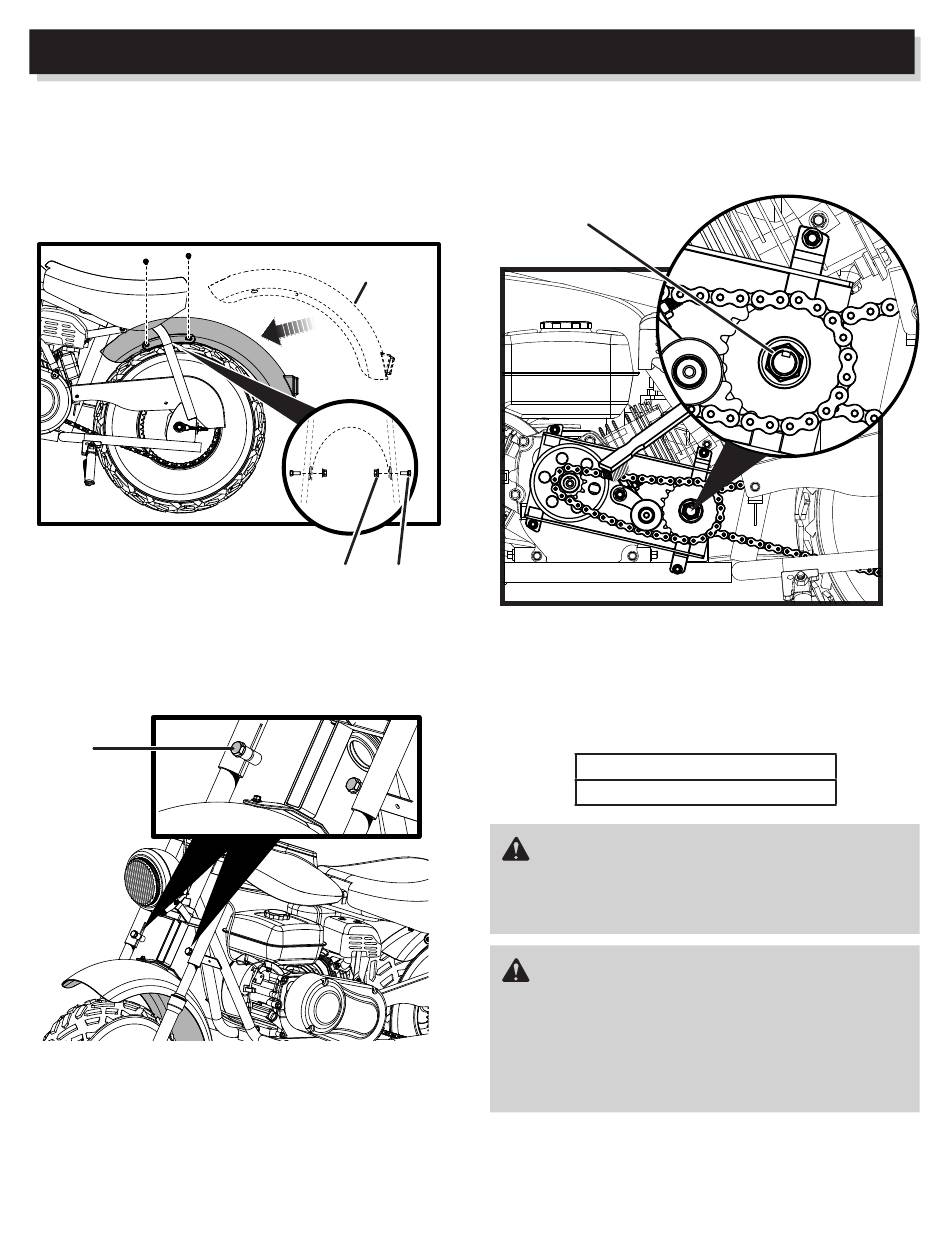

INSTALLING REAR FENDER
 Lift rear fender into position and align holes in fender with
holes in fender brackets.
 Install bolts and nuts. Tighten securely. Torque to 7 ft.lbs.
(9.5 Nm).
TIGHTEN FRONT SHOCK BOLTS
 Tighten front shock bolts securely.
 Torque to 35 ft.lbs. (47.5 Nm).
SHOCK
BOLTS
ASSEMBLY
TIGHTEN JACKSHAFT NUT
 Tighten jackshaft nut.
 Torque to 60-80 ft.lbs. (81.3-108.5 Nm).
FENDER
NUT BOLT
VERIFY TIRE PRESSURE
 Check the air pressure of the tires and inflate as needed
NOTE: Tire pressure should only be measured or
adjusted when tires are cold.
Check the tire pressure carefully while inflating. Too much
air in the tire could cause the tire to burst, causing serious
personal injury.
Maintaining correct air pressure in the tires is very impor-
tant. Too little pressure could allow the tire to rotate off
the wheel rim. Too much pressure could cause the tire to
burst. Failure to maintain correct air pressure in the tires
could cause problems with vehicle operation and stability,
causing serious personal injury.
7 — English
JACKSHAFT
NUT
to the proper amount.
Recommended Pressure
12 psi (82.7 kPa)
WARNING:
WARNING:
