WARNING:
Strictly adhere to all torque wrench tightening specifica-
tions. Failure to do so could cause serious personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always disconnect the engine spark plug
wire from the spark plug when assembling parts.

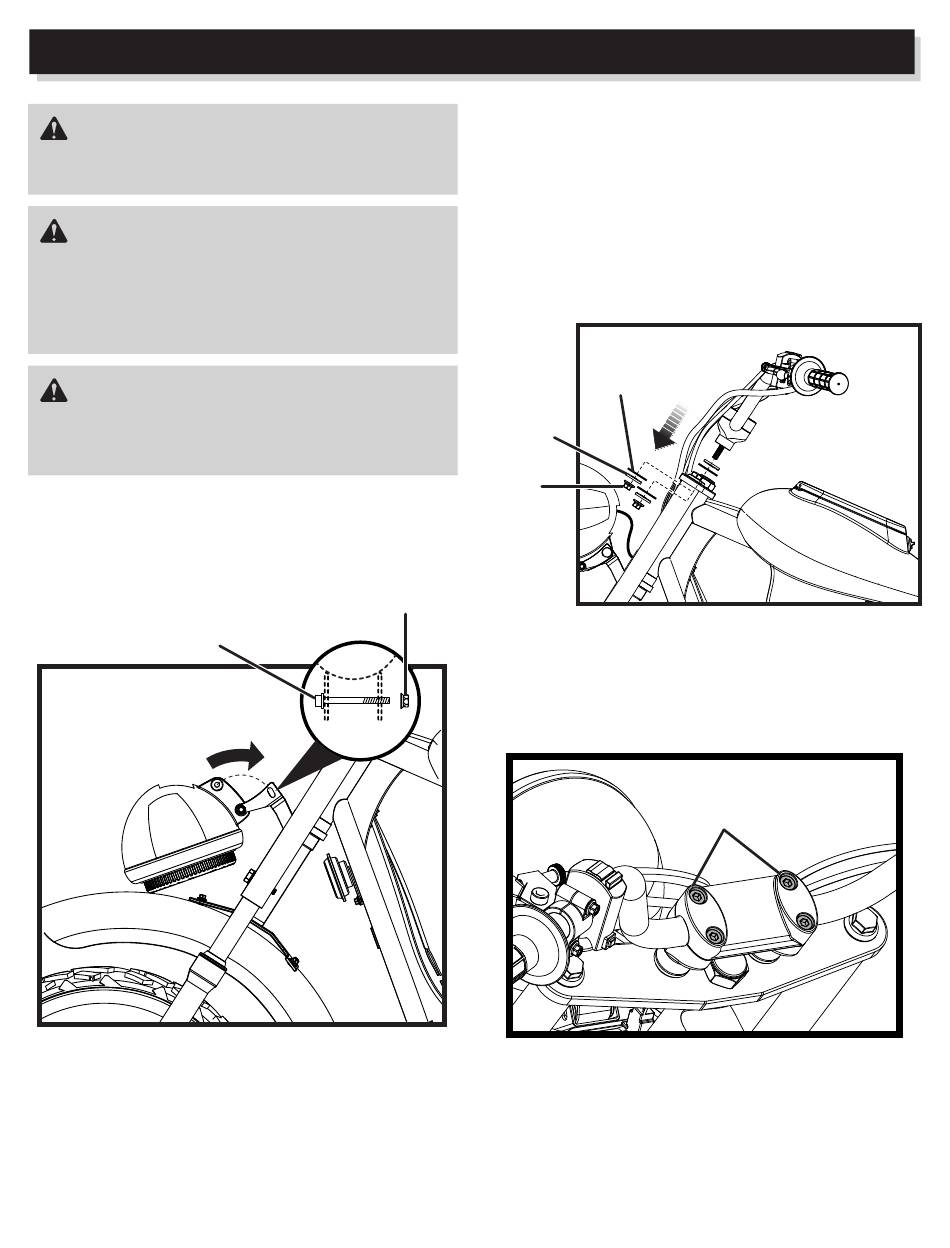

INSTALLING HEADLIGHT
 Align holes in headlight with holes in headlight bracket.
 Install bolt and nut; tighten securely.
BOLT
© 2010 Baja, Inc. All Rights Reserved.

ASSEMBLY

INSTALLING HANDLEBAR
 Remove cinch nuts and washers with rubber grommets
from steering bracket.
 Attach handlebar assembly to steering bracket using one
washer and grommet on top of the bracket and one washer
and grommet under the bracket.
 Install cinch nut and tighten securely. Torque to 33 ft.lbs.
(45 Nm).
WASHER
CINCH
NUT
NUT
 Verify allen head bolts on top handlebar clamp are tightened
securely. Torque to 20 ft.lbs. (27 Nm).
6 — English
RUBBER
GROMMET
ALLEN HEAD
BOLTS
