4) Ensure all gauges are set to zero before beginning.
5) Place the open can of paint under the dispensing nozzle. Unlock the Carousel Index Lever and
rotate the turntable until the appropriate canister is directly over the can of paint, and lock
the Carousel Index Lever. If a formula which cannot be measured in one dispense is required,
multiple dispenses will be necessary. It is always best to divide a formula into equal
dispenses.
6) Set the Gauge by pressing the Gauge Locking Button (Ref. # 3) and raising the Gauge until
the desired measurement appears beneath the arrow in the window at the top of the Plunger
Handle (Ref. #1).
7) To add smaller increments than the main gauge allows, turn the Smart Gauge handle located
on the piston handle in a clockwise direction, until the desired increment appears in line with
the arrow in the window.
8) With the gauge correctly set, slowly and gently lift the plunger handle until it reaches the
gauge handle. Continue to hold for a few seconds to ensure that the cylinder has completely
filled with colorant.
It is always best to divide the required formula into equal dispenses, even if it requires more
dispenses than what might otherwise be required. Mis-tints are generally caused by operator error
in setting the gauges. The fewer changes in the gauge settings, the lower the chances of errors.
9) Turn the handle 90 degrees clockwise to the dispense position until it locks into position. En-
sure a can is in position under the nozzle.
10) Press the plunger handle down to dispense the colorant. Ensure the plunger handle is
pressed down fully.
11) Press the button on the handle firmly and the handle should automatically rotate 90 degrees
anticlockwise and return to the close position.
Gauge # 2
DO NOT open or operate the dispensing Valve Handle while charging the cylinder.
If the valve handle is opened, even the slightest amount, air will be drawn into the cylinder
chamber resulting in an inaccurate dispense. If the valve handle is accidentally opened during
CHARGING, close valve and press the plunger handle down to return the colorant to the canister.
If the colorant level is low in the canister, air can also be sucked into the cylinder.
Press the plunger handle down to return the colorant to the canister. Add 1 or 2 quarts of new
colorant. The cylinder must be re-primed. Refer to the instructions on chapter 4.

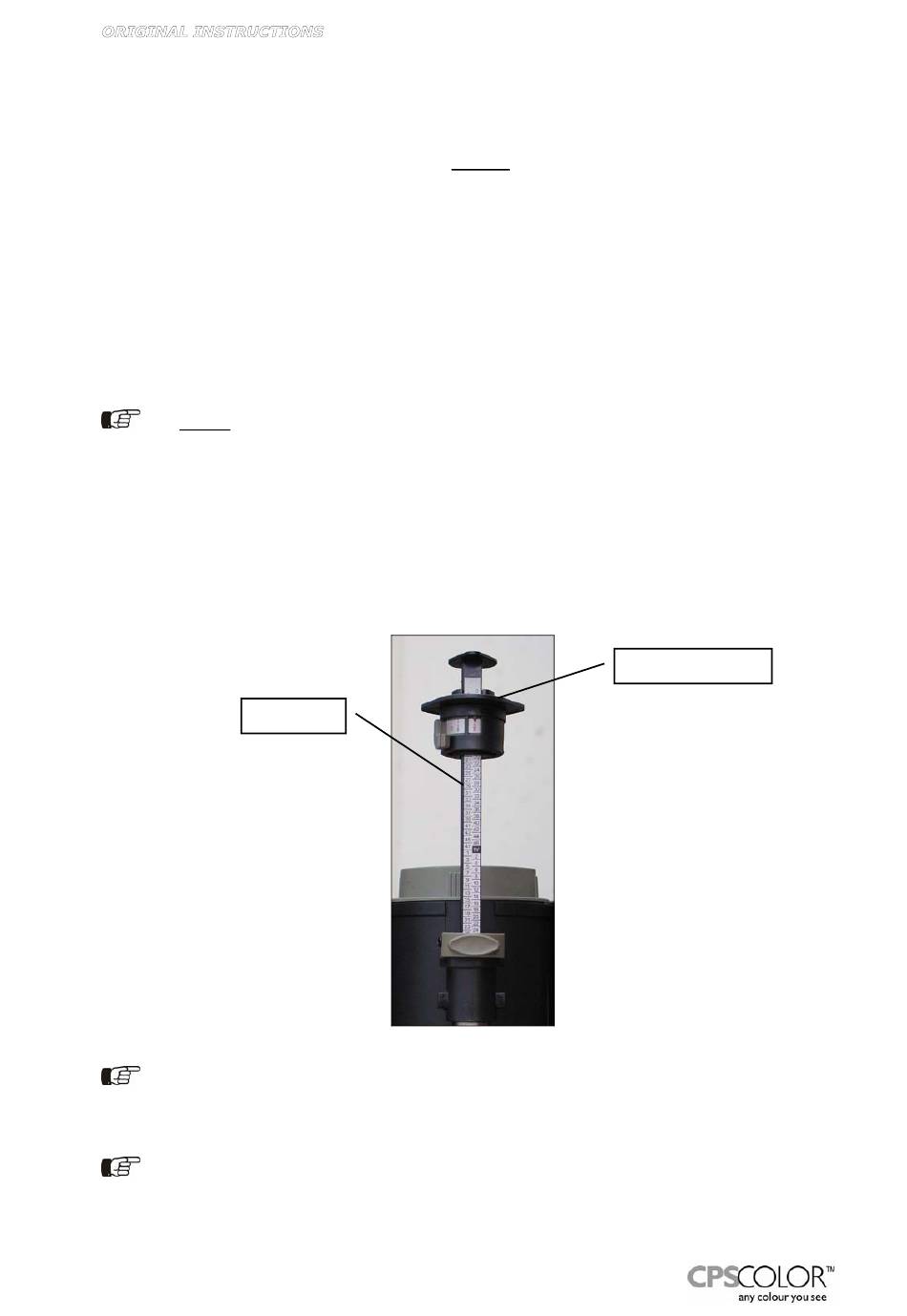

Figure 5-4
Plunger Handle # 1
13
