Programming Examples

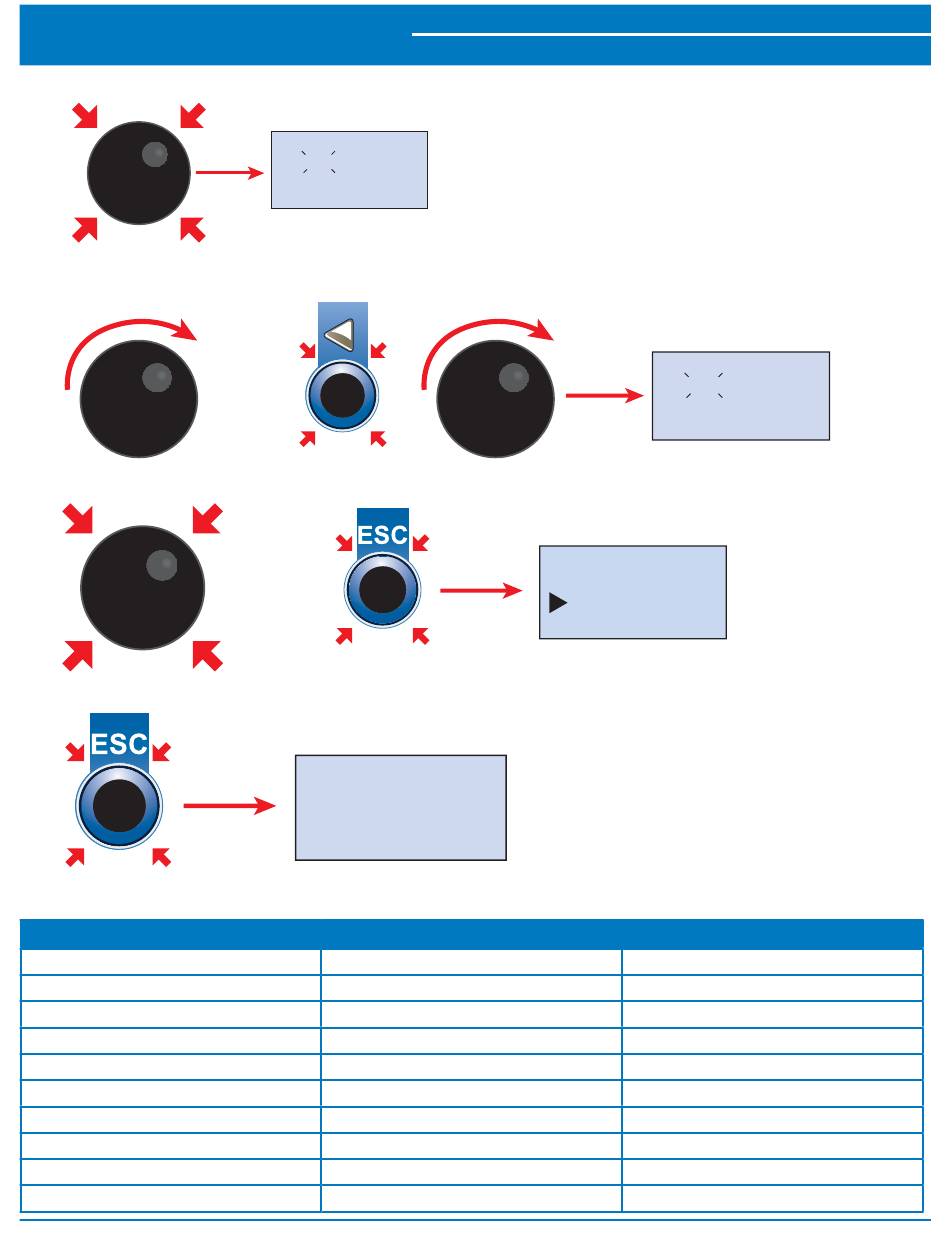

3. Press the rotary selector to enter Pump 1 Current editing.
4. Rotate the selector to begin editing the value. Pressing the left arrow button will move the editing position left one
digit. This is useful when making large adjustments to the edited value quickly.
5. Press the rotary selector to save the edited value and exit the editing screen. Or press the ESC button (escape) to
exit the editing screen without saving.
5. If no further setting needs to be edited, press the ESC button to return to the main display.
Set Pressure
Set Start Diff Pres
Set Lag Start Diff
Set Lag Stop Diff
Set Lag Stop Time
Set Alternation time
Set Pump 1 OL Amps
Set Pump 1 Voltage
Set Pump 2 OL Amps
VARIOspeed 3R Duplex User Manual
®
Set Pump 1 Current
12.3 Amps
(Use nameplate data)
Min 0 Max 60
OR
OR




SETUP PARAMETER + LOG MENU
Set Pump 2 Voltage
Set Sleep Frequency
Set Sleep Time
Set Xducer Max Range
Set Min Frequency
Set Max Frequency
Set PID Prop Term
Set PID Integ Term
Set 1st Accel Time
+
 
 
 
 
Set Pump 1 Current
13.3 Amps
(Use nameplate data)
Min 0
Set Lag Stop Diff
Set Lag Stop Time
Set Alternation Time
Set Pump 1 OL Amps
Set 1st Decel Time
Set Accel 2 Sw Freq
Set Acc/Dec Time
Set High Press Alarm
Set Run Dry Press
Set Run Dry Restart
View Run Times
View VFD1 Fault Hist
View VFD2 Fault Hist
View Error Log
Max 60
