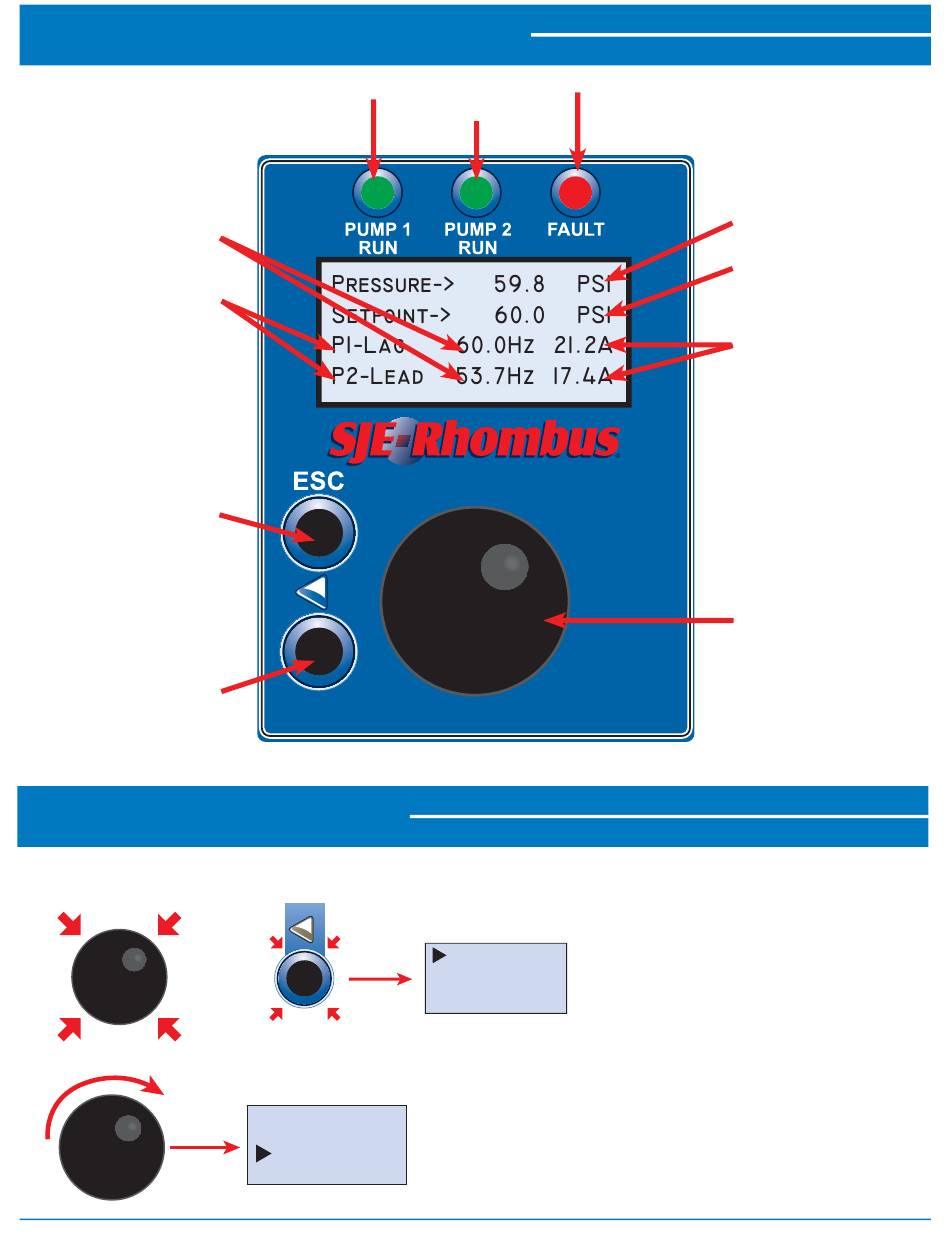

Display Features and Navigation
PUMP 1 and PUMP 2
Output Frequency
PUMP 1 and PUMP 2
Lead/Lag Status
Escape Button:
Used to exit without
saving setting values
or to return to the
main monitor screen.
Left Button:
Used for digit
selection during
editing.

Programming Examples

Changing the Pump 1 Motor Overload Amps
1. From the main display, press the Left or Enter button to enter the settings menu.
OR
2. Rotate the rotary selector until the selection arrow highlights "Set Pump 1 Motor OL Amps".
4
PUMP 1
Run Indicator
PUMP 2
Run Indicator
Set Pressure
Set Start Diff Press
Set Lag Start Diff
Set Lag Stop Diff
Set Lag Stop Diff
Set Lag Stop Time
Set Alternation Time
Set Pump 1 OL Amps
Fault Indicator
VARIOspeed
Current Pressure
Set Point Pressure
PUMP 1 and PUMP 2
Motor Current
Rotary\Push Button:
Used to scroll through
the menu and edit
setting values
3R Duplex User Manual
®
