Pin connection
Pin connection for pluggable sensors (top view)
4
1

Electrical connection

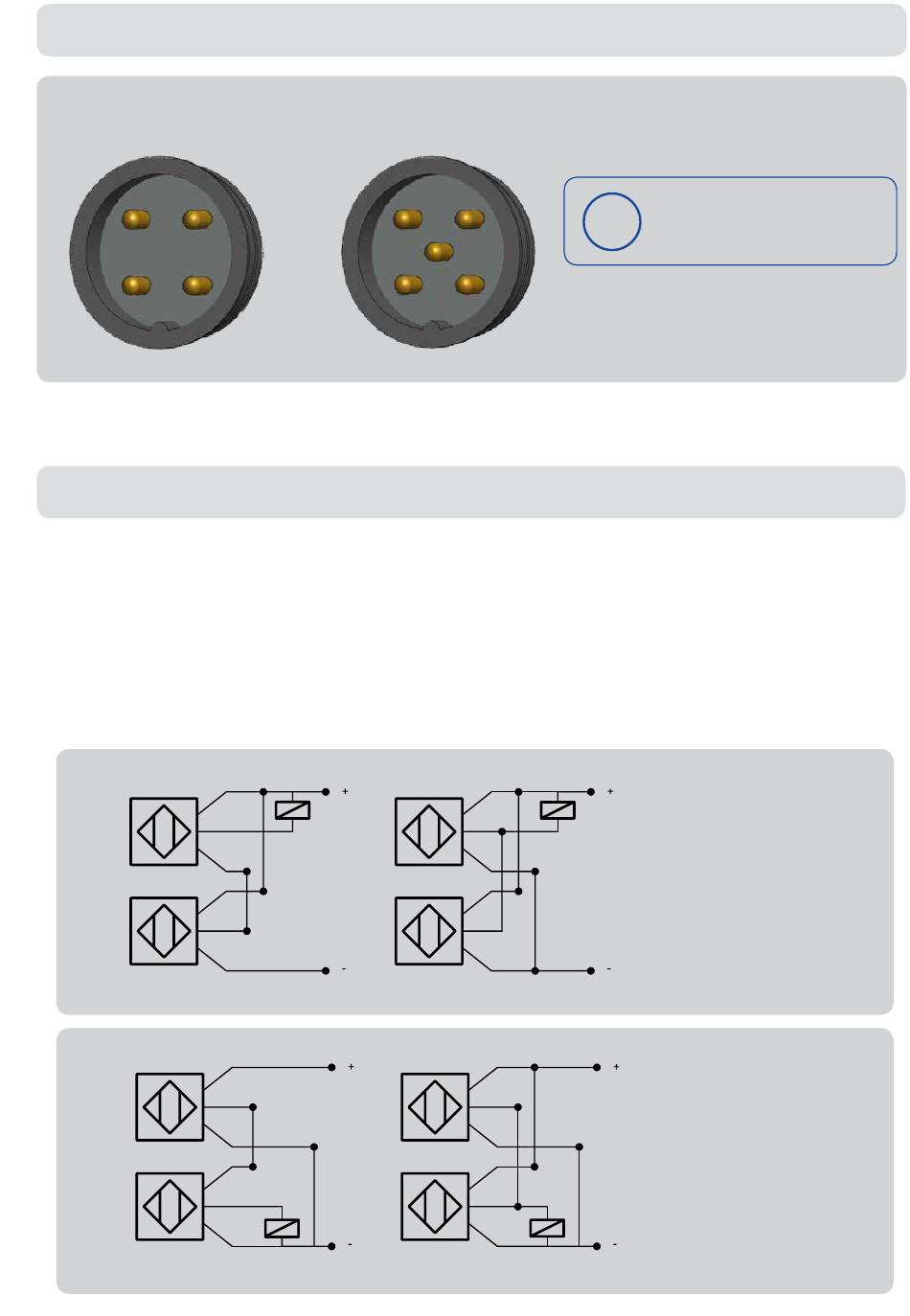

3-wire sensors with binary output can be used in series or parallel connection, similar to mechanical con-
tacts. The type-typical voltage drop and the residual voltage U
with the number of sensors for series connection, must be noted. In the case of parallel connection of
sensors with FET-output, the first switched output takes over the total load current.
Series connection
3
4
5
2
1
3
i
2
which must be multiplied in accordance
d ,
Parallel connection
Pin 5 is only available for
sensors with ETW-function
3-Wire DC NPN
3-Wire DC PNP
