Important
The equipment comes with a cable to connect
it to the outlet of the disconnecting switch. If
it is necessary to change the cable, proceed as
described below.
Important
The connection must be made by authorised,
skilled personnel, in accordance with the re-
levant legal requirements, using appropriate
and specifi ed materials. The appliance is sup-
plied with operating voltage 230V/1N 50Hz,
or 220V/1N 60Hz on request.
Caution - Warning
Before doing any work, cut off the mains elec-
tricity supply.

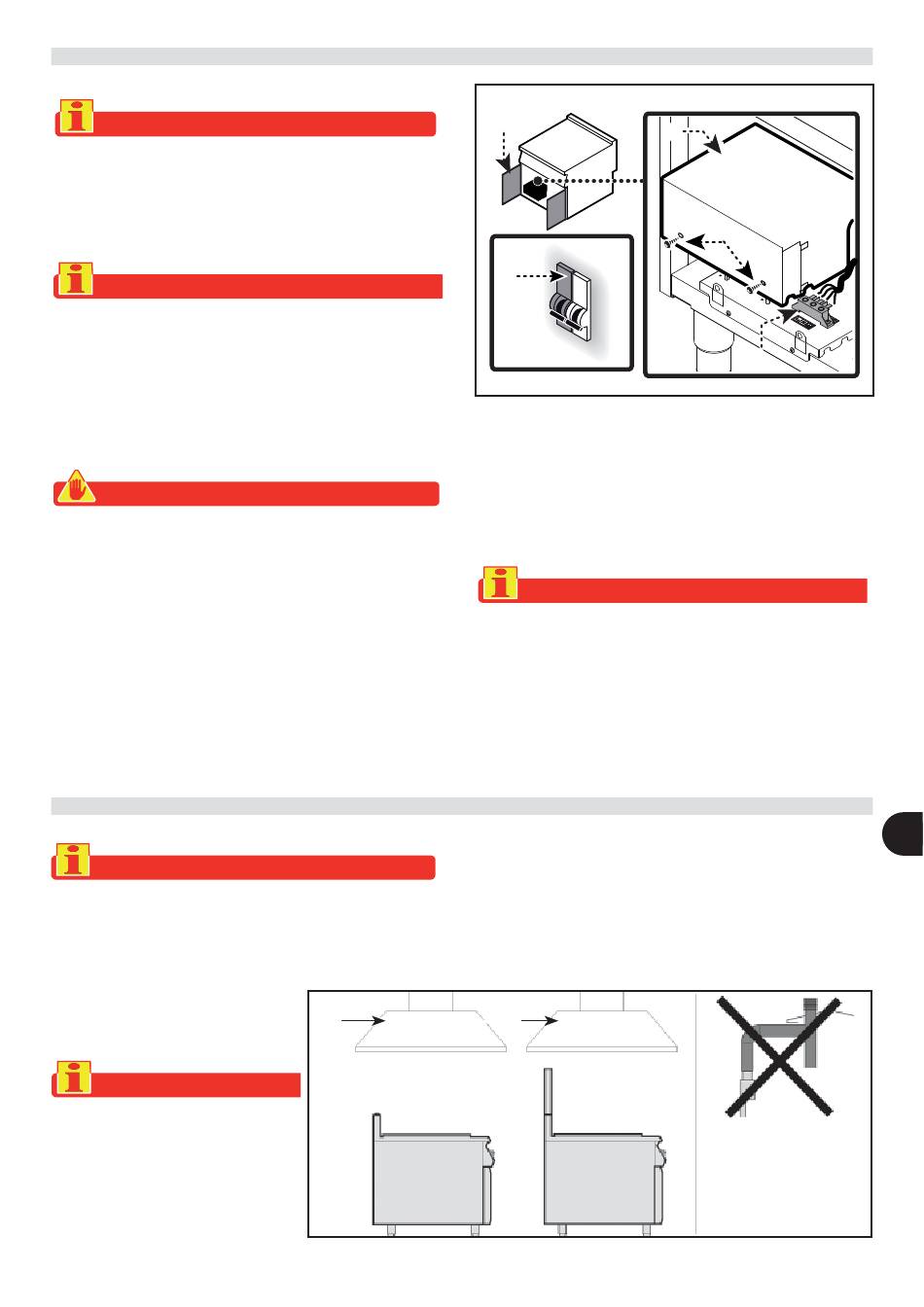

Connect the appliance to the mains electricity
supply as follows.
If not already present, install a circuit-breaker
1)
(A) with overload cutout and diff erential safe-
ty breaker close to the appliance.
Open the hatch (B).
2)
Undo the screws (C) to remove the lid (D).
3)
Important
Make the connection in compliance with the
relevant legal requirements, using appropria-
te and recommended materials.
Position the appliance un-
1)
derneath the hood (A) as
shown in the diagram.
Important
The gas supply tap must
open automatically when
the fan of the extraction sy-
stem is switched on.
3301390_inst_GB_rev.2

ELECTRICAL CONNECTION

CONNECTION OF FUME EXHAUST VENT

A
B
A
Connect the circuit-breaker (A) to the termi-
4)
nal board (E) of the appliance as shown in the
diagram and in the electrical system diagram
at the back of the manual. Use a cable with at
least H05RN-F characteristics rated for an oper-
ating temperature of at leas 80°C.
Important
When connecting, take care over the connection
of the neutral and earth wires; if they are not con-
nected correctly, the burner does not light.
5 - Replace the lid (D) and fi x it with the screws
(C) on completion of the operation.
6 - Close the hatch (B).
Connecting to a fan extractor hood
To carry out this operation, proceed as follows.
A
- 11 -
D
C
E
ENGLISH
GB
