3.2.1 Back Panel Connectors

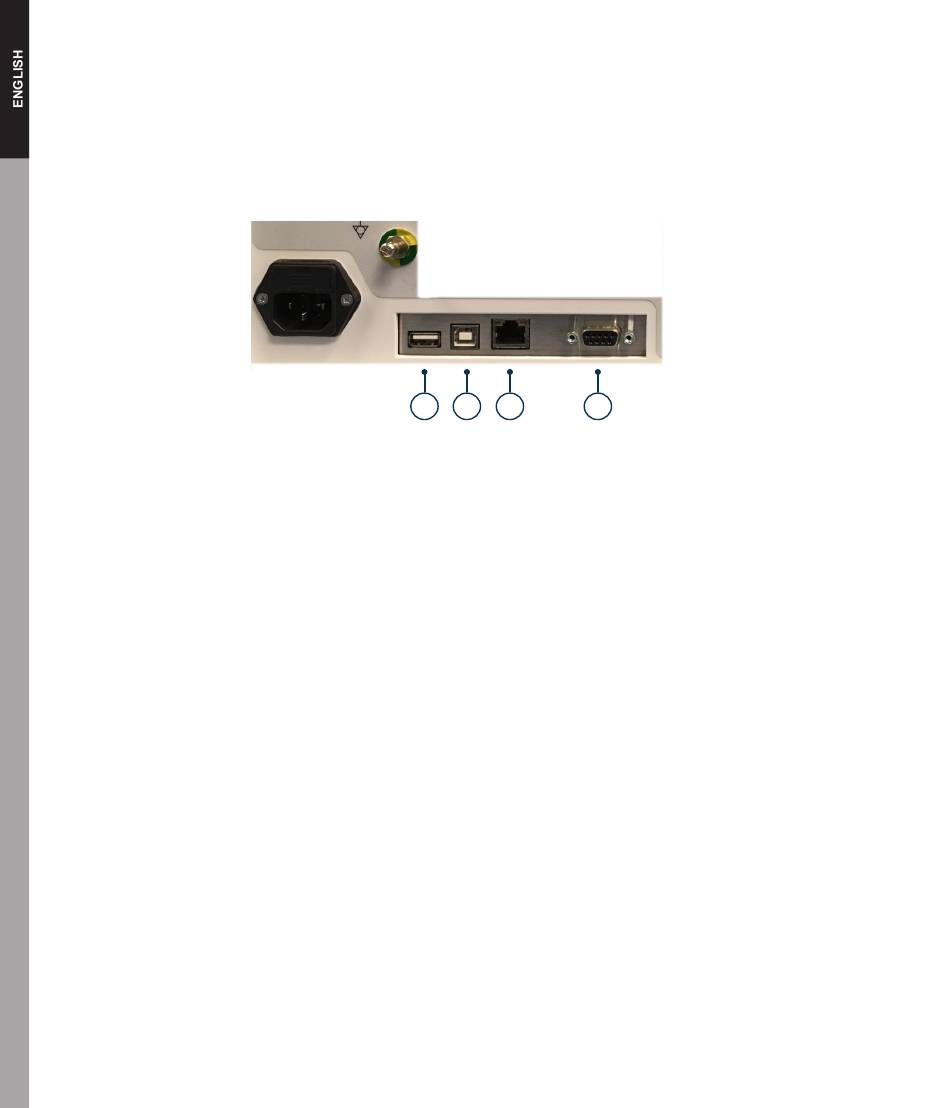

Figure 4 shows back panel connectors .
NOTE: Only approved electronic equipment (IEC60950-1, IEC60601-1) can be connected to the
four rear panel communications connectors (Figure 4).
1 USB-A: Used for software upgrades and for retrieving fault log
2 USB-B: For future expansion
3 Ethernet 10BaseT: For future expansion
4 RS-232: Used for diagnostics
1

Figure 4. FMS VUE II Back Panel Connectors

20
2 3 4
