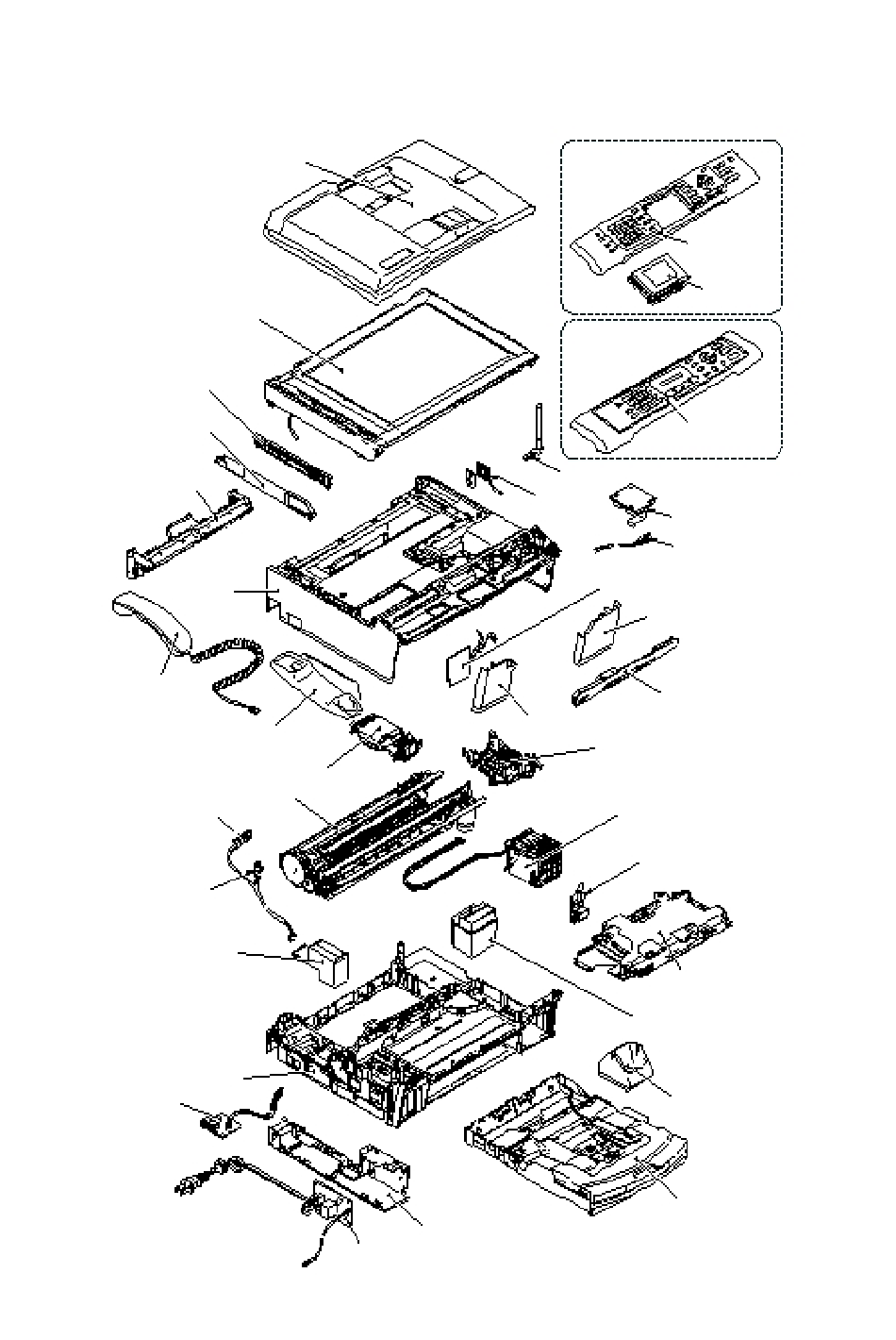

1.3 COMPONENTES

La máquina está compuesta de los siguientes componentes
principales:
Scanner cover
(Scanner Unit)
Scanner cover
damper
Scanner cover
support
Jam clear cover
Upper cover
1
Handset*
Handset mount*
Hed/Carriage unit
Engine unit
Registration sensor
PCB
PF encoder PCB
Lower cover
MJ PCB
1
* Para modelos con auricular
2
* Para modelos con auriculars inalámbricos
3
* Para modelos con conexión inalámbrica LAN
ADF & document
cover ASSY
1
MJ/PS shield box
Power supply PCB
1-5
Color LCD type
Control Panel
ASSY
Color LCD
unit
Monochrome LCD type
Control Panel
ASSY
2
Antenna*
Speaker
Cordless PCB*
Cover sensor PCB
3
WLAN PCB*
Ink cartridge cover
Media module cover
Front cover
Maintenance unit
Ink refill ASSY
Hook switch PCB*
Main PCBASSY
Ink absorber box
Cradle*
Paper tray ASSY
(COMPONENTS_MFC)
2
1
2
