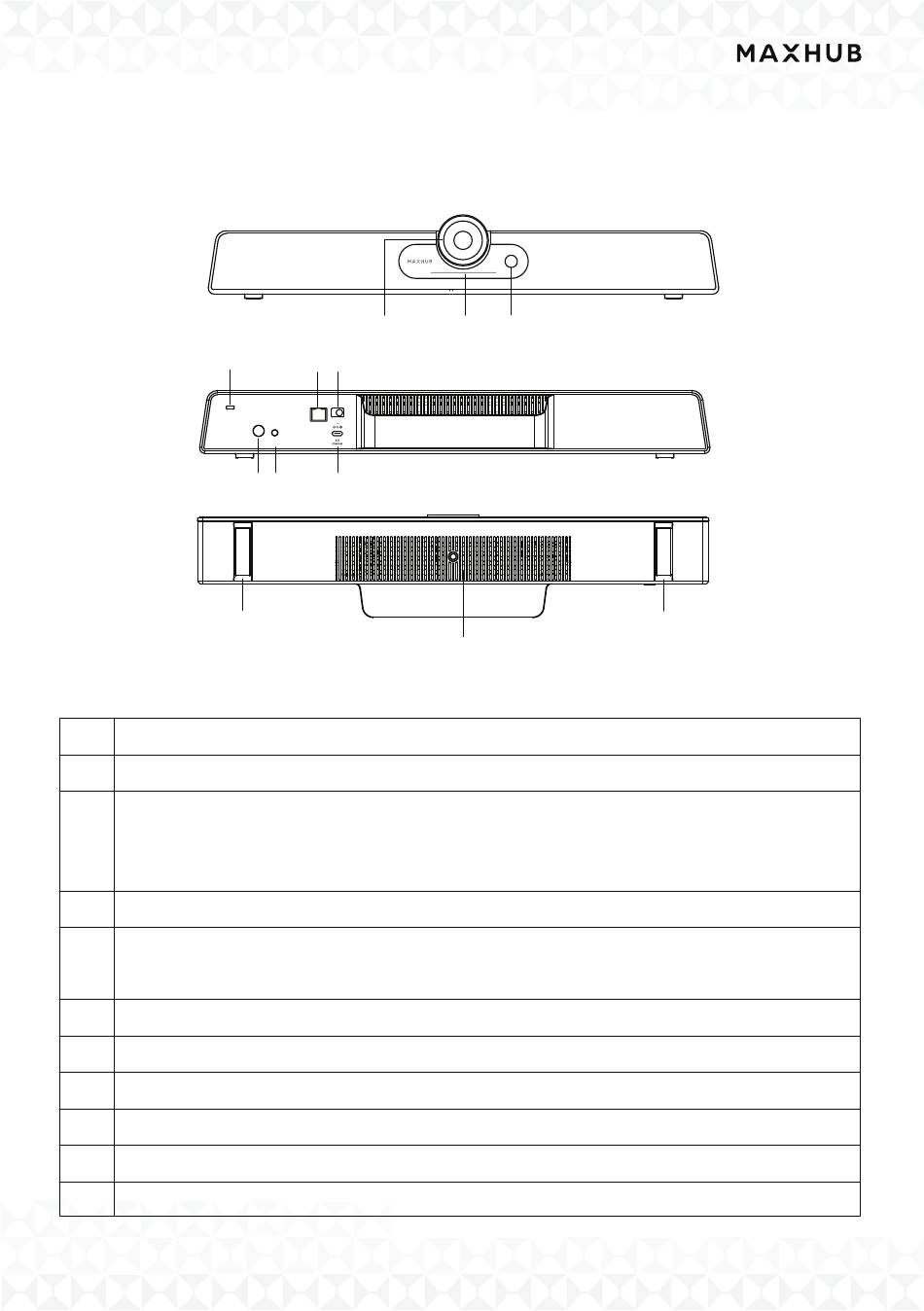

UC S07 VideoBar
4
10
1 Camera
2 Indicator light
The Passive Infrared (PIR) sensor: operates in power-on mode and will automatically enter
3
standby state if no motion is detected within 3 meters for 30 minutes. In standby mode,
the PIR sensor will automatically activate when motion is detected within 3 meters.
4 Kensigton lock
Power Button: In startup mode, press the power button to mute. In standby mode, press the
5
power button to power on.
6 AUDIO OUT: Used for external audio equipment
7 RJ45: Only support POE power supply
8 DC: Used for power input supply at 12V.
9 USB 3.0(Device): Connect to USB host (eg: PC / Laptop), firmware upgrade, etc.
10 1/4" screw hole for mounting on bracket or tripod
11 Foot stand for placing on table top
1
7 8
12V 3A
POWER
(PD)
AUDIO OUT
5 6 9
2 3
11
07
10
