FR 200 • Operating Manual

FR 200 gasoline

Description of function
Before starting put on your ear protectors and protective goggles.
1. Starting (Fig� 16-Fig� 19) Before starting, set the depth adjuster to 0 position. Set the rotary
switch to „on". Then turn the accelerator lever (metallic grey) to the position shown (full
throttle). You must now turn the white rotary lever (Choke) for the air supply fully to the right
(low air supply) and set the black gasoline slide to „on". Now pull the cord in order to start the
engine. You must now move back the white rotary lever for the air supply (full air supply)
2. Depth adjustment (Fig� 14) Push the adjusting lever (black) forwards until the cutters strike
the floor surface to be worked on. (The photograph shows depth adjustment in 0 position)

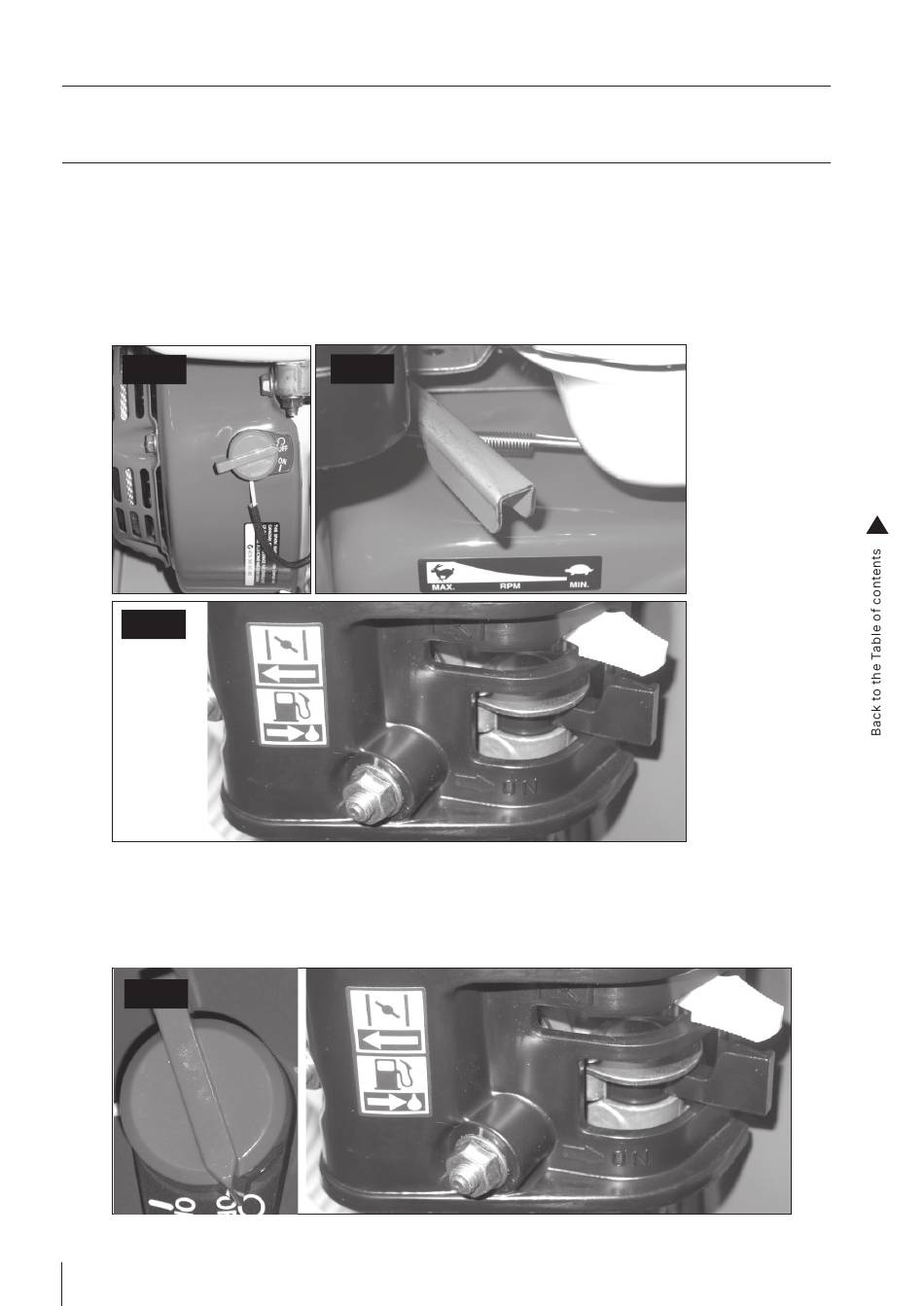

Fig. 16
Fig. 18
• Feed (Fig� 8) The machine operator must guide the machine at the two handles of the handle
bar. The machine operator steers the FR 200 in cutting direction over the floor surface to be
worked on. The FR 200 is pressed against the floor and the rotating drum works into the floor
surfacing by its own weight.
3. Switching off (Fig� 19) Before switching off, set depth adjustment to 0 position. Then set the
electrical rotary switch to "off" and set the gasoline slide to closed.
Fig. 19
14
Machine description and basic mode of operation
Fig. 17
