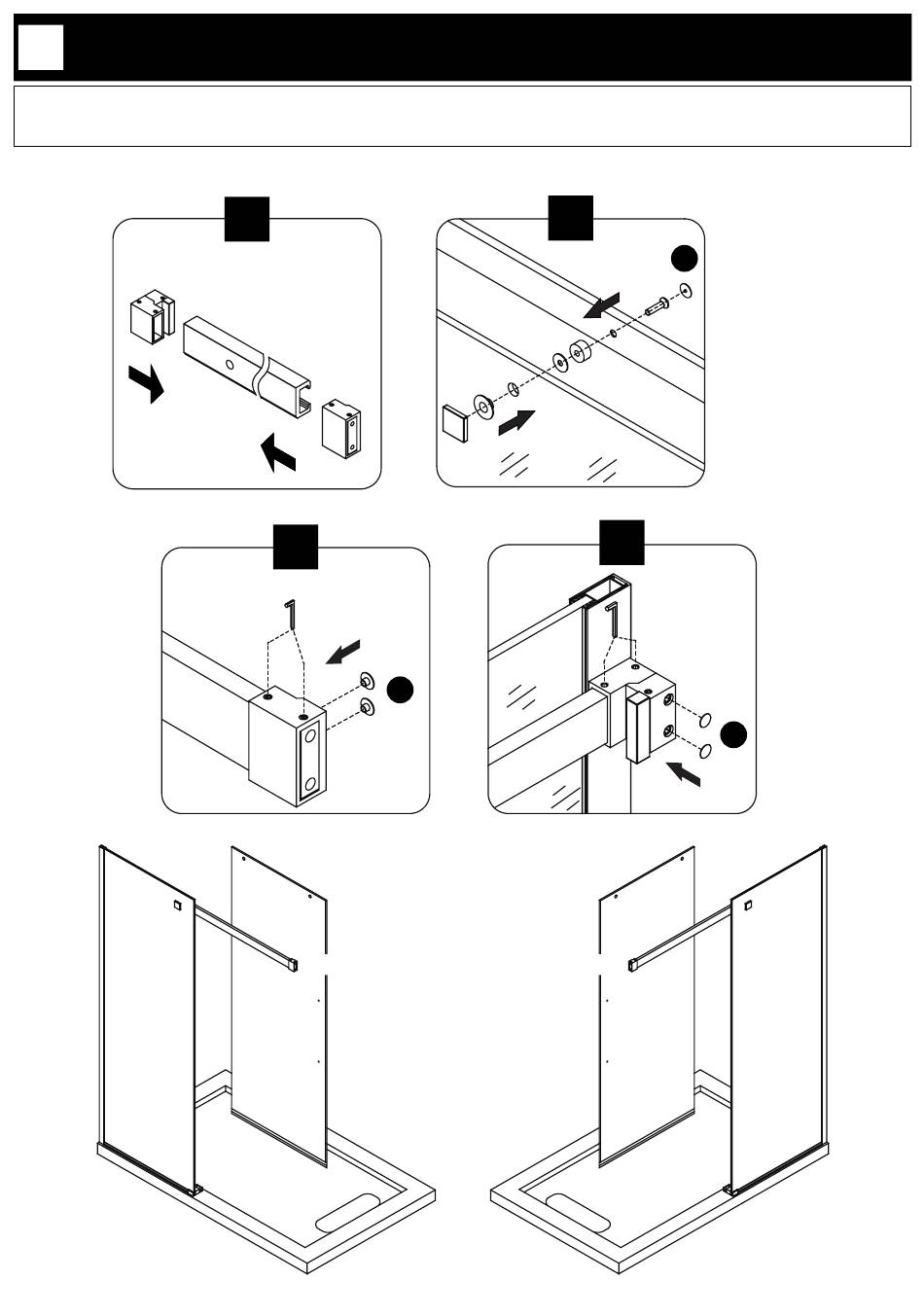

8.1. Slide again the support bar anchors (N1 & N2) onto the support bar (D). Then fix the support bar to the wall.
8.2-8.4. Fix the fixed panel (A) onto the support bar (D) using the bracket (P), install the caps (JJ) to the bracket (P). Secure the
support bar (D) on it's anchor using the provided hex screws, then install the caps (HH).
N1
N1
P
A
RIGHT DOOR OPENING
FIXED PANEL AND SUPPORT BAR INSTALLATION
8.1
D
N2
8.3
N2
D
N2
8.2
P
A
HH
LEFT DOOR OPENING
JJ
D
8.4
HH
N1
D
P
N2
N1
A
