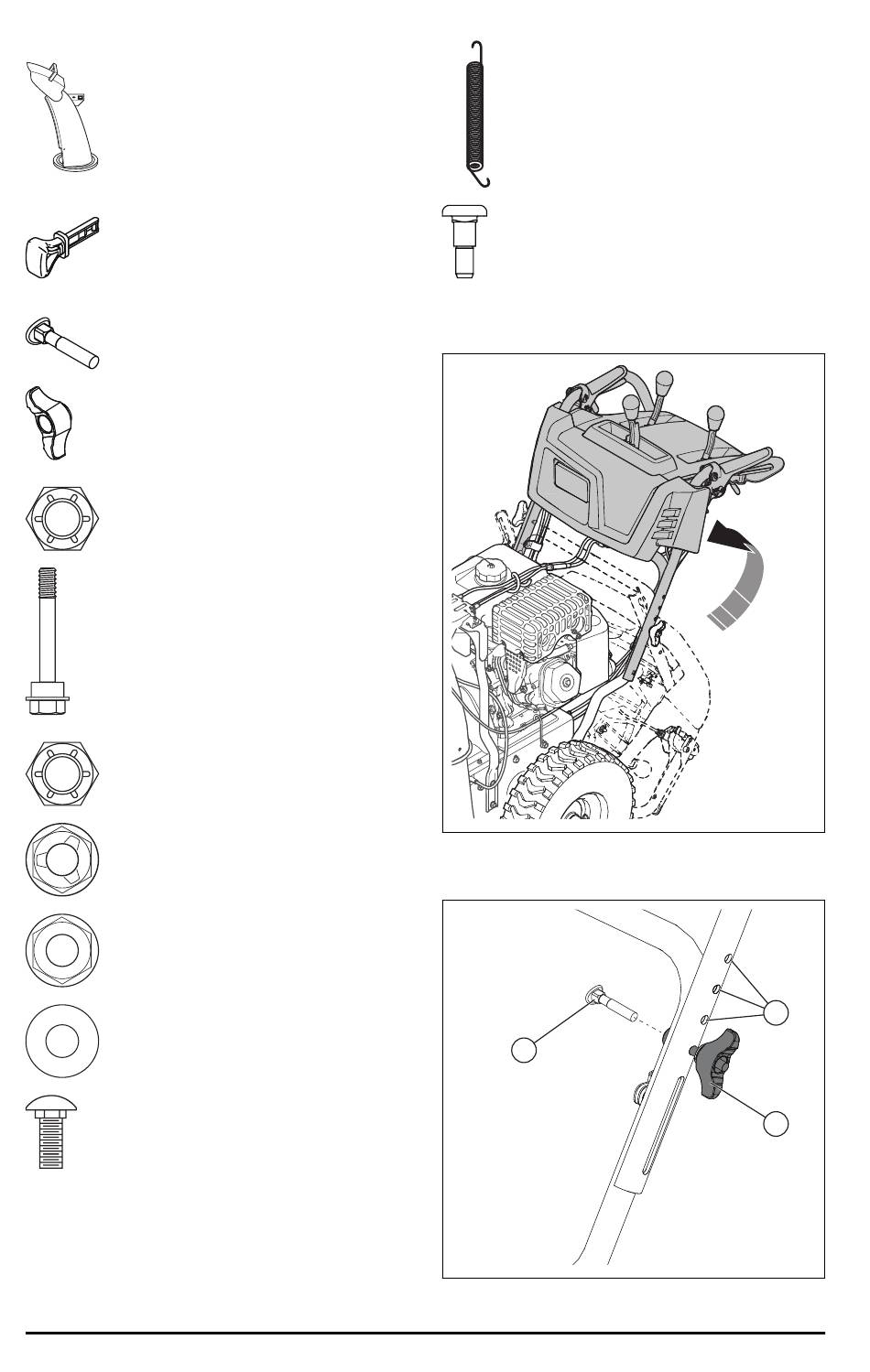

Discharge chute (1)
ON/OFF key (s)
Carriage bolts 5/16-18 x 2 ¼" (2)
Handle knobs (2)
Locknut 3/8 (1)
Shear pins ¼-20 x 1-¾ (2)
Locknuts ¼-20 (2)
Locknut 5/16-18 (1)
Locknut ¼-20 (1)
Nylon washer (1)
Carriage bolt 5/16-18 x 5/8 (1)
8
Spring (1)
Shoulder bolt ¼-20 (1)

To install the handle

1. Raise the upper handle to the operating position.
2. Adjust the handle position to one of the mounting
holes (B) and tighten the handle knobs (C) with
the carriage bolts (D).
D
B
C
791 - 002 - 08.01.2020
