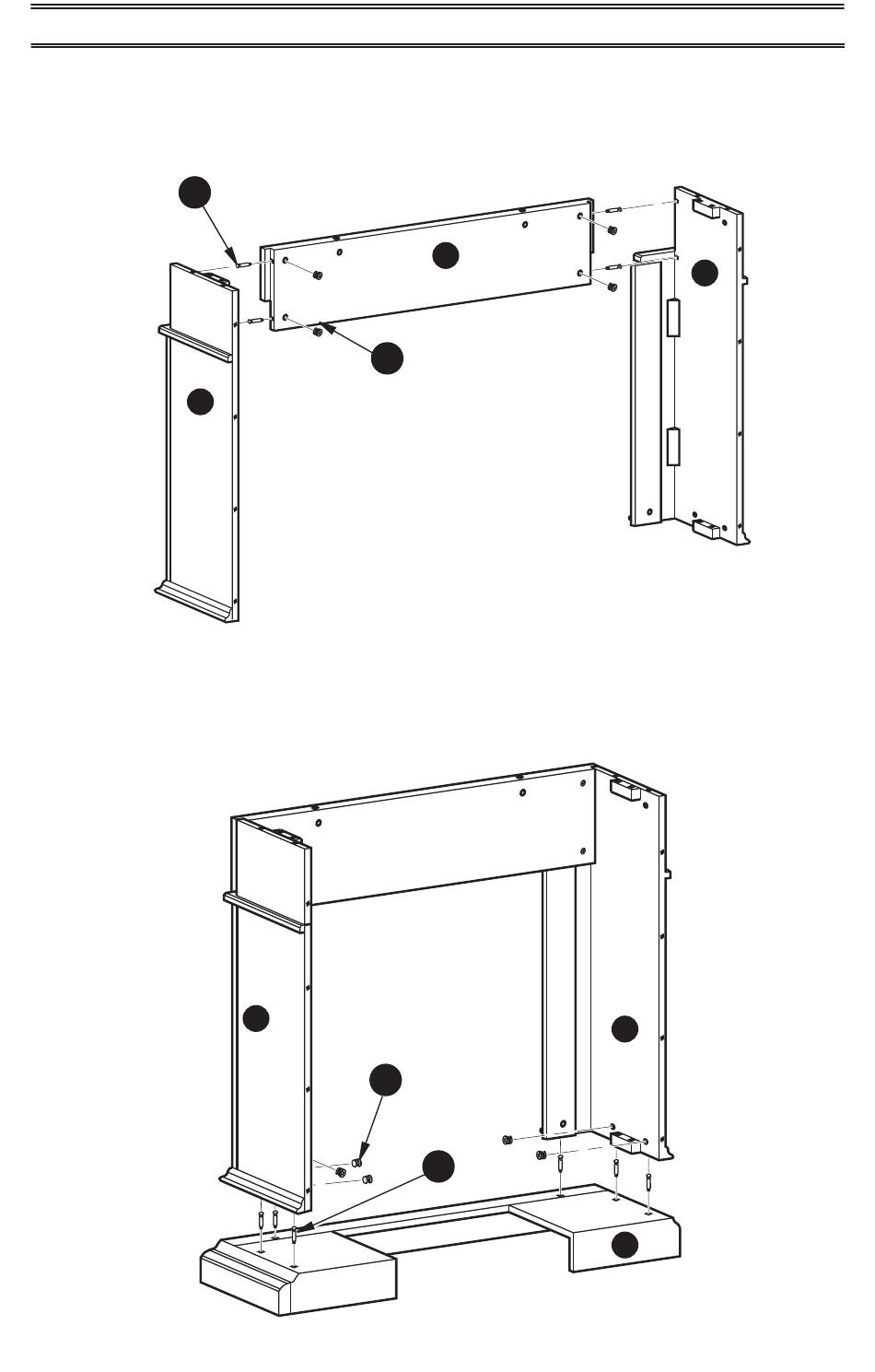

1. Insert 4) Cam Locks (BB) into Panel (B). Screw 4) Cam Dowels (AA) into the Left Side
Panel (C) and the Right Side Panel (D). Attach Panel (B) into assembled frame (C, D) by
tightening the Cam Locks (BB) as shown in Figure 29.
AA
D
2. Insert 6) Cam Locks (BB) into the Left Side Panel (C) and the Right Side Panel (D). Screw
6) Cam Dowels (AA) into Base (E). Attach Base (E) into assembled frame by tightening
the Cam Locks (BB) as shown in Figure 30.
30
MANTEL
ASSEMBLY INSTRUCTIONS
BB
Figure 29
D
BB
Figure 30
www.sureheat.com
B
AA
C
C
E
