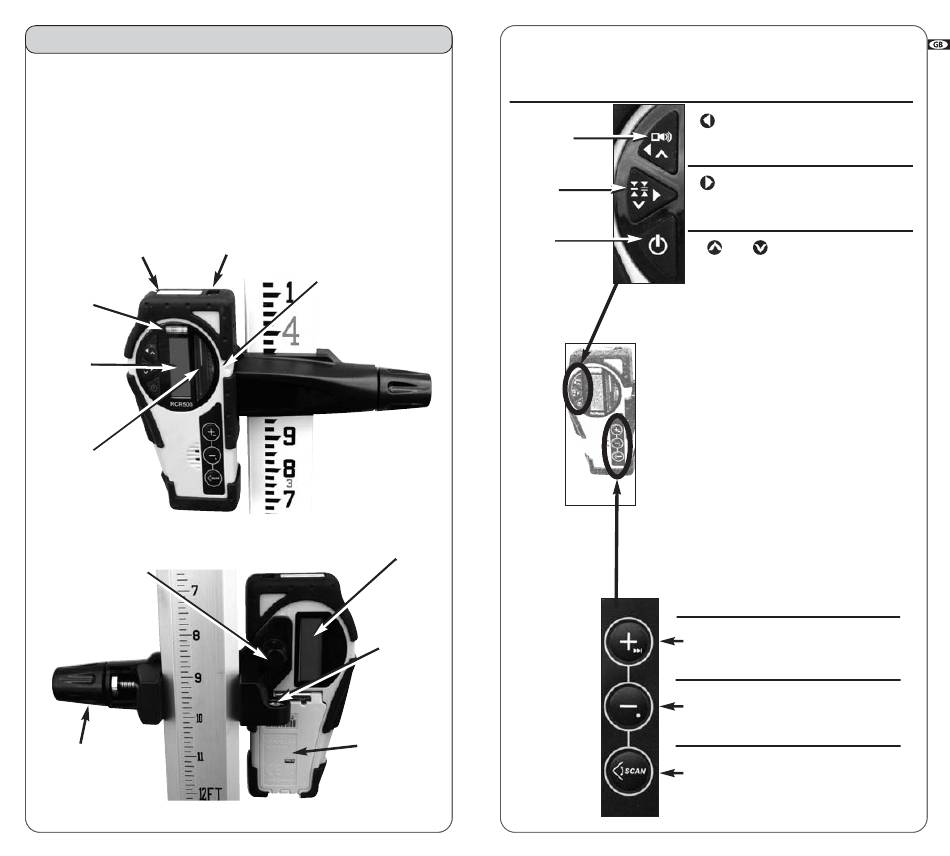

6. Accessories

6.1 Combination detector and
laser remote control
For grade rod or handheld applications. You can also use the
magnet mount to attach to metal studs for exterior curtain wall
alignment or to ceiling grids for acoustical ceiling leveling.
Magnet Window for remote's
Level vial
LCD
screen
(front)
Detection
window
Turn to attach
clamp to
detector
Turn to tighten
or remove clamp
from rod
18
infrared signal
On-grade
alignment notch
LCD screen
(rear)
Bubble
vial to
plumb rod
9V battery
compartment
(follow polarity
indications inside)
Use a coin to unscrew
the battery cap
Detector mode
(red keys)
Choice of
sound level
Choice of
accuracy
On/Off
TROUBLESHOOTING
• Before using a detector, it is very important
to set the A110 in rotation mode.
• The top LED on the laser (17) indicates if the
remote signal is being received.
• Lower Keypad
Remote mode
Increase
rotation speed
Decrease
rotation speed
Start/Stop scanning mode
Calibration section of manual explains
function of secondary small symbols.
• Upper Keypad
Remote mode Scanning mode
Move square Aim scanning left
shot to the left
Move square Aim scanning right
shot to the right
and are used for
calibration or to match slope
Scanning mode
Increase
scanning angle
Decrease
scanning angle
