7. USE

SETUP

Insert the shoe most suitable to the welding to carry out around the
extrudate hose.

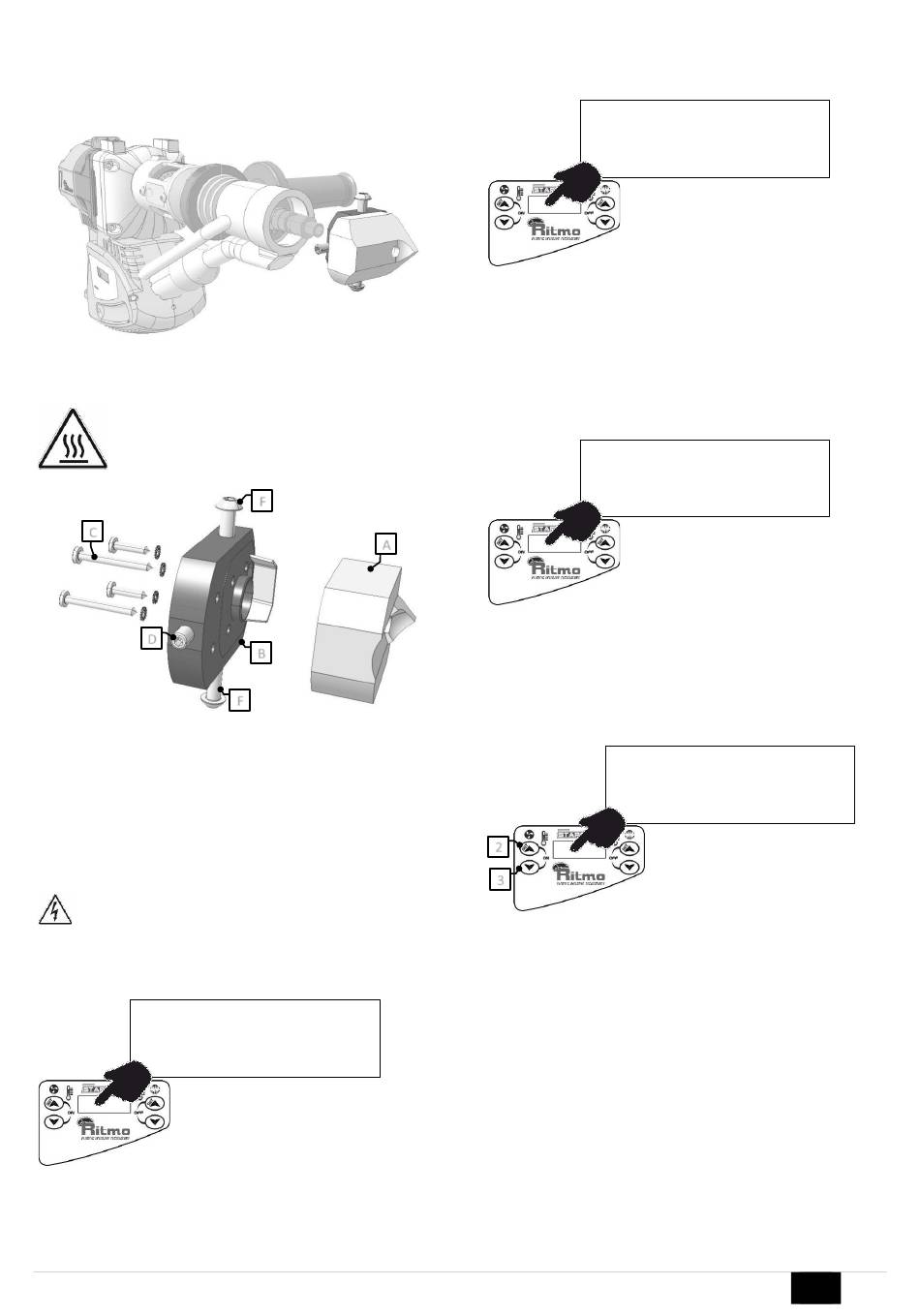

SHOE REPLACEMENT

It must be carried out when the extruder is still hot.
WARNING!!!: this operation involves the risk of burns and
must be completed by the operator only wearing heat-
resistant protective gloves.
BURN HAZARD
C
D
•
Lose screws F and D.
•
Take off the shoe support B.
•
Unscrew C and remove shoe A.
•
Mount a new shoe A on support B.
•
Mount again B on the extrudate hose.
•
Tighten screws F
•
Tighten D to fix the shoe position or keep it lose to let it turn around
the extrudate hose.

MAINS CONNECTION

Plug into the mains. Power generators require a voltage stabilizer.
Extensions require the minimum cable sections below.
EXTENSIONS (230 V)
Max length [m] 19 20 ÷ 50
2
Cable section [mm ] 2,5 4
**STARGUN LINK**
F
A
B
F
V1.0

WARM UP

PLEASE WAIT 120
Wait for the extruder to warm up.
Note
The extruder is equipped with a safety system that disables the motor if:
•
the minimum working temperature has not been reached;
•
a new set point, that is greater or lower than 10°C, has been typed in.
Once the heating time has been elapsed (READY!), the hand extruder is
ready to start.
278
The temperature of the air and the extrudate chamber are those stored
since the last usage.

AIR TEMPERATURE SETTING

Hold button 2 pressed for 3 sec. Use buttons 2 and 3 to set the air
temperature within the range T min=250°C – T max=365°C. The new setting
point is stored after 5 sec.
2
3
HEATING
READY!
215
CHANGE
280
