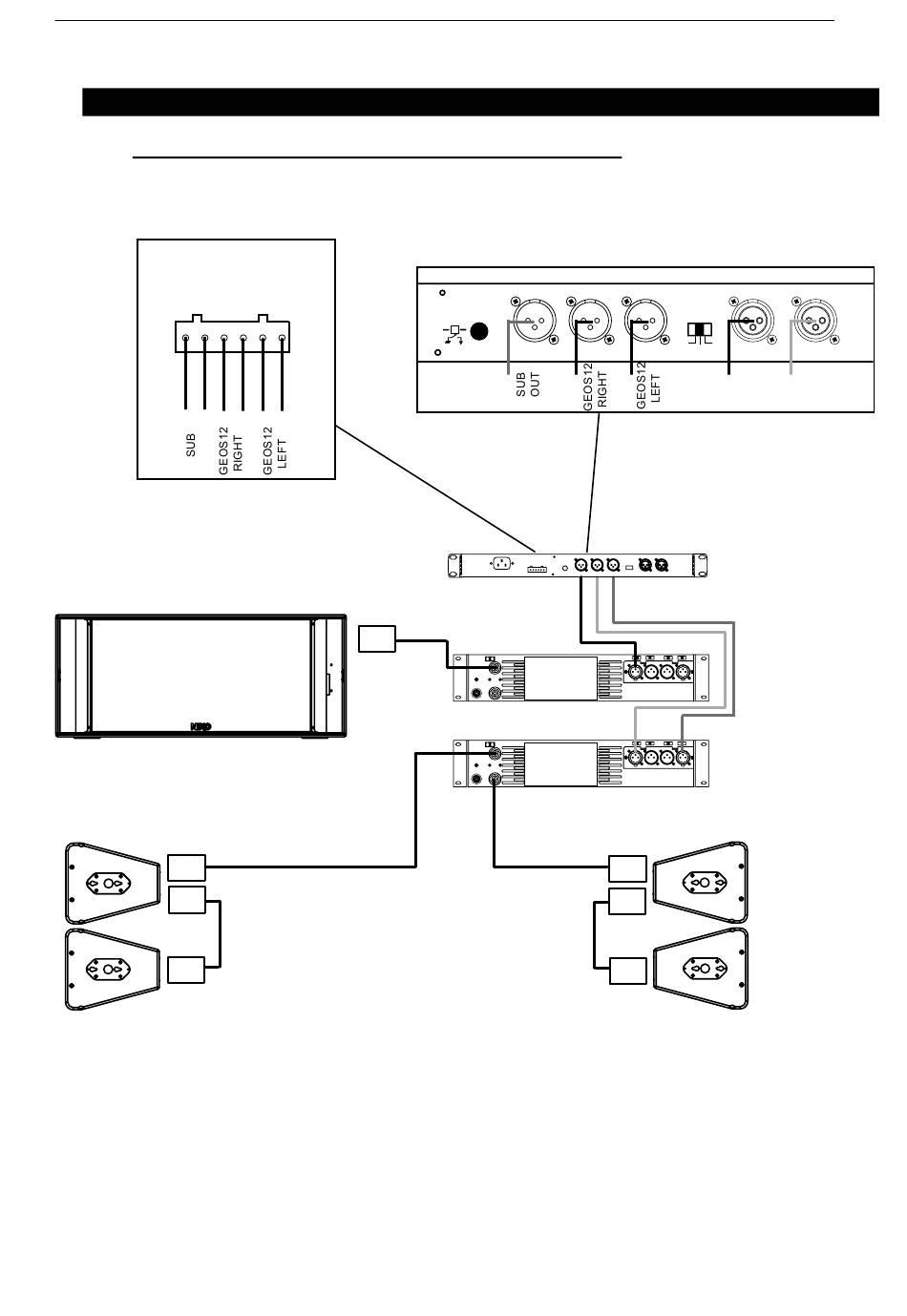

5.1 RS15 con GEOS12 TDController (Modo Omni Mono)

FROM AMPLIFIERS
C A U T I O N !
Sense must be connected for
speaker protection
SEE USER MANUAL
SEN SE IN PUT
(from amp terminals)
+ 3- + 2 - + 1 -
* VLF1 and VLF2 on one amplifier channel
Speakon 4
Speakon 4
D IAGRAMAS DE CONEXION
EARTH
LIFT
1 (+) / 1 (-) VLF1 *
2 (+) / 2 (-) VLF2 *
Speakon 4
1 (+) / 1 (-) N.C.
2 (+) / 2 (-) FULL RANGE
TO AMPLIFIERS
BALANC ED OUT PUT S
SUB L+R RIGHT LEFT
Speakon 4
1 (+) / 1 (-) VLF
2 (+) / 2 (-) N.C.
MONO
AMPLIFIER 1
STEREO
AMPLIFIER 2
Speakon 4
Speakon 4
Page 21/60
BALANC ED IN PUT S
OUT PUT
LEVEL
0dB -12dB
-6dB
RIGHT LEFT
STEREO
IN
