Safety Rail; Resetting The Wash Basin Lifter - Pressalit MATRIX R2122 Instrucciones De Uso Y Mantenimiento

Safety rail

The wash basin lifters R4870 and R4875 are equipped with a safety rail.

Resetting the wash basin lifter

If the wash basin lifter is jammed, try to reset it.
① Make sure that the safety rail is not activated. Lower the wash basin lifter
all the way down to its starting position.
② Release the lowering button, and after 3-4 sec. press it in again until you
hear a slight click after approx. 10 sec.
③ Release the lowering button and then raise the wash basin lifter to its
highest position. You will hear another click.
④ Lower the wash basin lifter a couple of centimeters.
⑤ Raise it again to its highest position. You will hear another click.
The wash basin lifter is now reset. The wash basin lifter should also be
reset if there has been an interruption of the power supply.

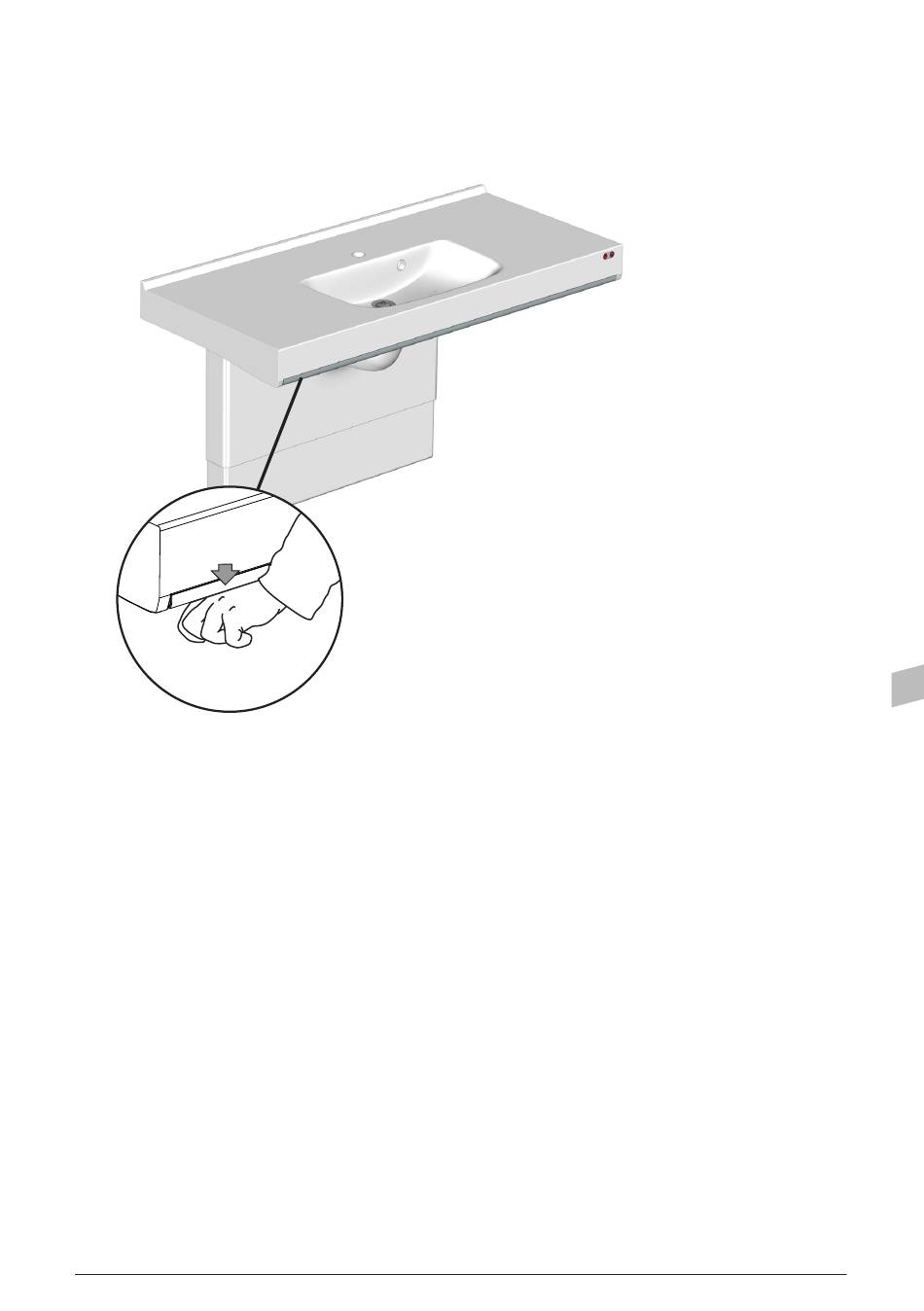

If the safety rail comes in
contact with an object when
the wash basin is being lowered,
the motion stops immediately.
If an object comes is in contact with
the underside of the wash basin
when it is stationary, the safety
function is activated and the wash
basin is lifted.
The wash basin lifter can be used
again as soon as the obstruction has
been removed.
en
21
