How to Wire Your Ceiling Fan (Continued)
3. After splicing and making the wire connections, the
wires should be spread apart and turned upward with
the grounded conductor (white), the equipment
-grounding conductor (green) on one side of the
ceiling plate assembly and the ungrounded conductor
(black and blue) on the other side of the ceiling plate
assembly. (Figure 3)

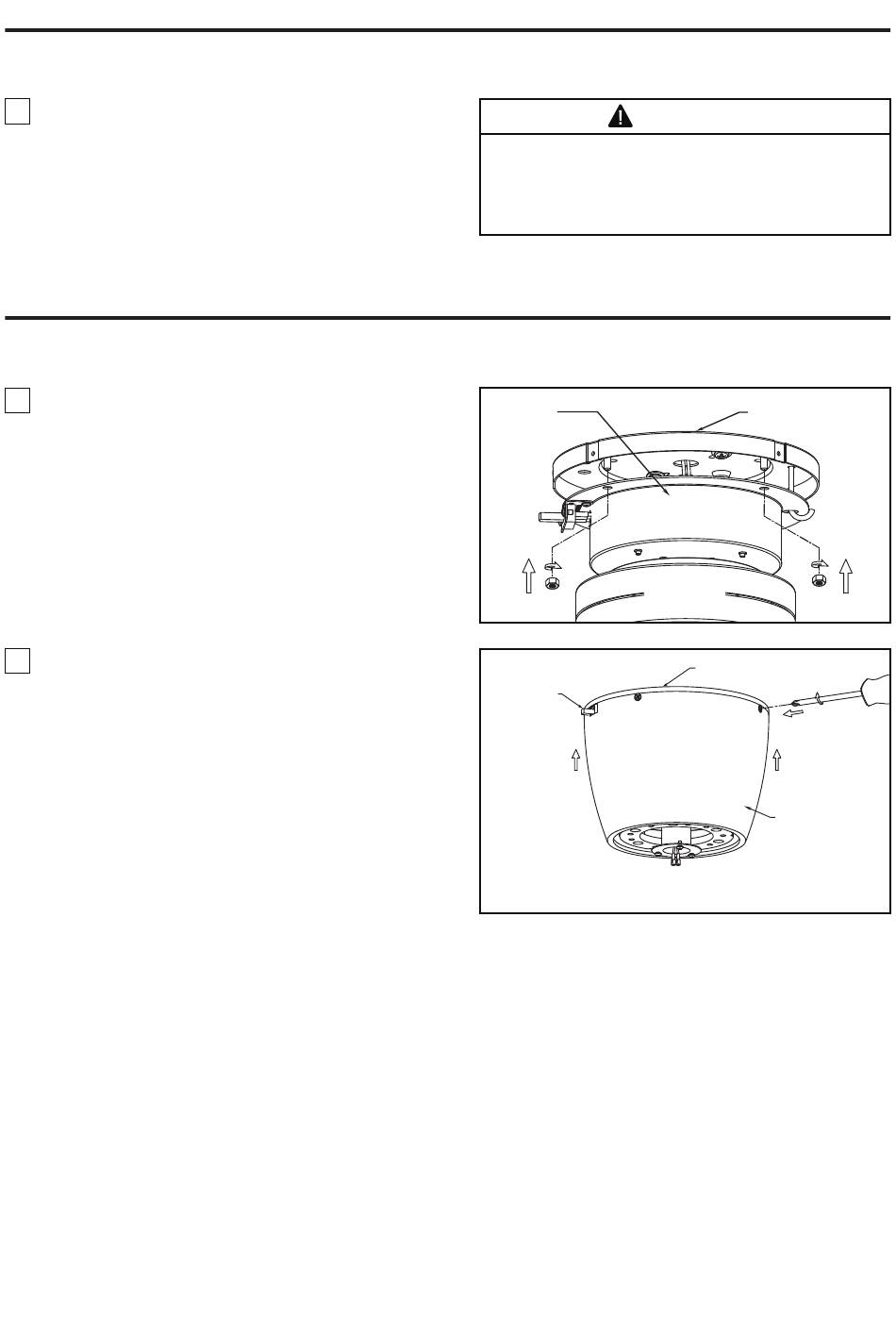

How to Assemble Your Ceiling Fan

1. Assemble the motor assembly to ceiling plate
assembly. Be sure the receiver and all wiring are
tucked into the motor housing and are not pinched.
Once the motor assembly is flush with your ceiling
plate assembly, replace the previously removed hex
nuts and securely tighten all four hex nuts. (Figure 1)
2. Assemble the upper housing to ceiling plate
assembly using the previously removed screws and
securely tighten all four screws. (Figure 2)
NOTE: Position the hole of upper housing over the
reverse switch of motor assembly.
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors except for the ground wire. Do not operate
fan until the blades are in place. Noise and motor
damage could result.
Motor
Assembly
Reverse
Switch
10
WARNING
Ceiling Plate
Assembly
Figure 1
Ceiling Plate Assembly
Upper Housing
Figure 2
