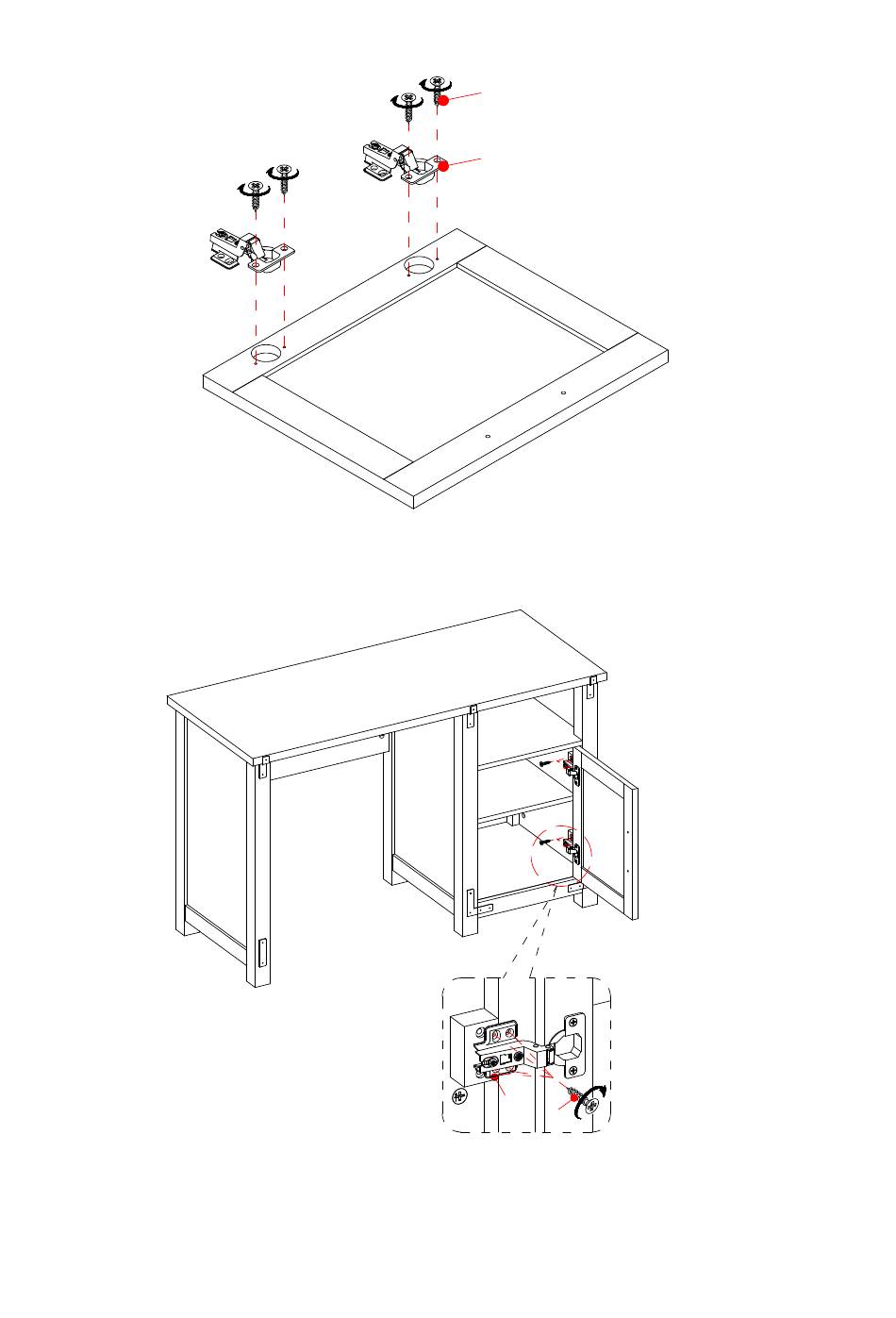

16. Extend two Hinges (6) and rest the hinge cups onto the cutouts on the Door jamb (K). Secure the Hinges
(6) in place by using two 15 mm Zinc Screws (7) in each.
17. Pick up the Door (K) and fasten the Hinge Bases (6) onto the Cabinet Right Side (D) with four 15 mm
Zinc Screws (7) in each.
18. Open and close the door to make sure it is aligned and shut correctly. If necessary, adjust the screws for
a good fit. (Refer to the hinge sticker on the door for adjustment).
Assembly Instructions
K
DO NOT fully tighten the
7
6
D
K
6
D 7
screws.
13
