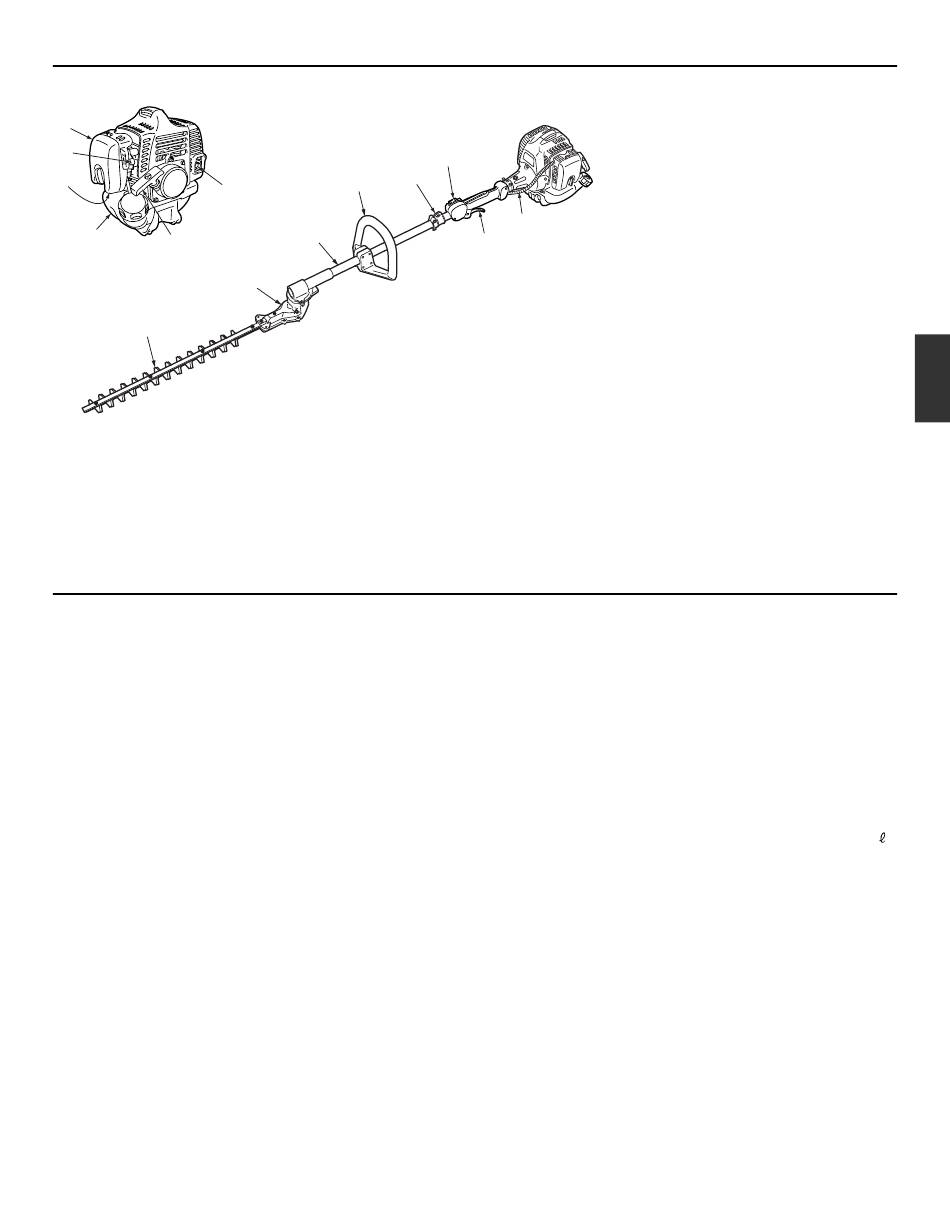

1. Situación de las piezas
14
13
12
9
11
10
7
2. Especificaciohes
■ SRTZ2460F
Tamaño global (Lar x Anch x Alt) ···························································································1735 x 225 x 255 mm
Peso en seco sin correa para el hombro·········································································································6,2 kg
Motor
Capacidad del depósito de combustible ·········································································································0,63
Transmisión ····················································································Embrague centrífugo, engranaje cónico espiral
Relación de reducción··········································································································································4,0
Período de duración ·········································································································································300 h
Velocidad de funcionamiento estándar····························································································6000~9000 rpm
Cabezal de corte
Accesorios estándar Correa para el hombro································································································1 pieza
2
1
6
8
Tipo·······················································Motor de 2 tiempos de gasolina refrigerado por aire
Modelo ······················································································································· GZ23N
Desplazamiento ········································································································23,6 cm
Salida máxima··························································1,15 Hp (0,858 kW) at 8000/min
Velocidad de marcha en vacío ·····································································3000 ± 200 rpm
Combustible ··········································································Mezcla (Gasolina 50: Aceite 1)
Carburador ························································································Tipo Walbro Diafragma
Bujía··················································································································NGK CMR7H
Tipo ································································································Cuchilla alternativa doble
Dientes···················································································································26 dientes
Paso ····························································································································35 mm
Ancho de corte efectivo ·····························································································420 mm
Gafas protectoras ·······································································································1 pieza
Kit de herramientas·····································································································1 pieza
Tapa de cuchillas ········································································································1 pieza
3
4
5
Especificaciones sujetas a cambios sin previo aviso.
1. Mango
2. Colgador de correa para hombro
3. Interruptor de parada
4. Cable del acelerador
5. Gatillo de regulador
6. Tubo de eje
7. Hoja
8. Caja de engranajes
9. Parachispas
10. Arrancador
11. Tanque de combustible
12. Cebador
13. Palanca del estrangulador
14. Cubierta del filtro de aire
(al utilizar el aceite auténtico de RedMax)
SRTZ2460F
