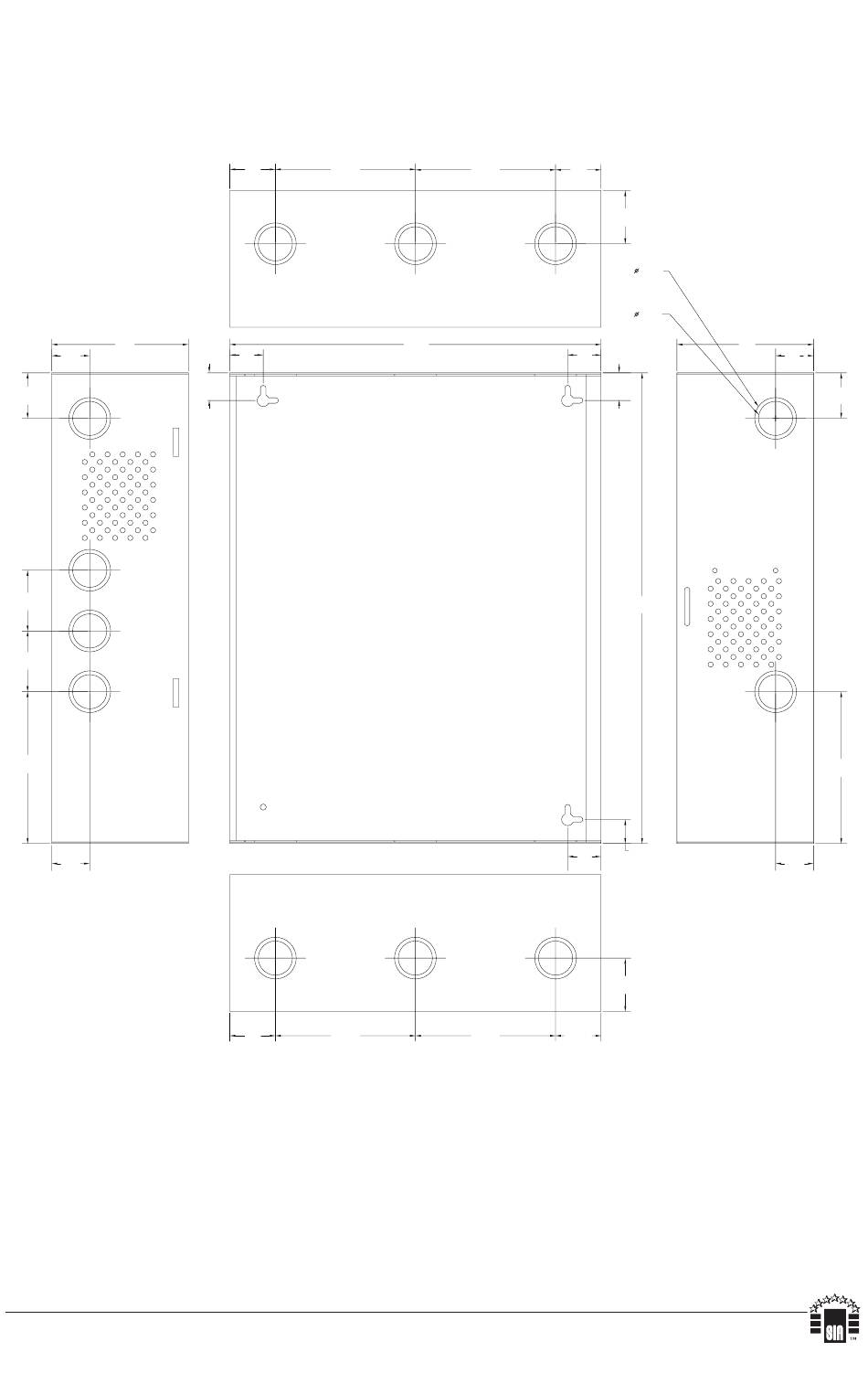

Dimensiones de el gabinete (BC400):

SMP3PMCTXX
15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm)
El gabinete acomoda hasta dos (2) baterías de 12VDC / 12AH.
4.5"
(114.3mm)
1.25"
(31.75mm)
1.5"
(38.1mm)
2.0"
(50.8mm)
2.0"
(50.8mm)
5.0"
(127.0mm)
1.25"
(31.75mm)
Altronix no es responsable de ningún error tipográfico.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IISMP3CTX Series
- 8 -
1.5" 4.615"
(38.1mm) (117.22mm)
1.1"
(27.94mm)
0.91"
(23.114mm)
1.5" 4.615"
(38.1mm) (117.22mm)
4.615"
(117.22mm)
12.23"
(310.64mm)
4.615"
(117.22mm)
C23R
1.5"
(38.1mm)
1.75"
(44.45mm)
1.375"
(34.925mm)
1.125"
(28.575mm)
1.1"
(27.94mm)
0.91"
(23.114mm)
15.5"
(393.7mm)
0.79"
1.1"
(20.06mm)
(27.94mm)
1.75"
(44.45mm)
1.5"
(38.1mm)
4.5"
(114.3mm)
1.25"
(31.75mm)
1.5"
(38.1mm)
5.0"
(127.0mm)
1.25"
(31.75mm)
MEMBER
SMP3CTX Series
