How to Mounting Your Switch Cup Cover Assembly
(for MA4660) - Continued
5.
Assemble the inner-switch cup to the support-cover
switch cup using the two key slots in the inner-switch
cup. Replace the previously removed screw and
securely tighten all three screws. (Figure 5)
6. Assemble the switch cover to the support-cover
switch cup by twisting in a clockwise direction.
(Figure 6)
How to Mounting Your Switch Cup Cover Assembly
(for MA4660SSBNW)
1. Remove the switch cover from the switch cup cover
assembly by twisting in a counterclockwise direction.
Retain the switch cover for Step 6. (Figure 1)
2. Remove one of the three screws in the
support-cover switch cup and retain the screw for
Step 5. Slightly loosen the remaining two screws and
remove the inner-switch cup. Retain the inner-switch
cup for reassembly in Step 5. (Figure 2)
Support-Cover
Switch Cup
Inner-Switch Cup
Support-Cover
Switch Cup
Inner-Switch Cup
14

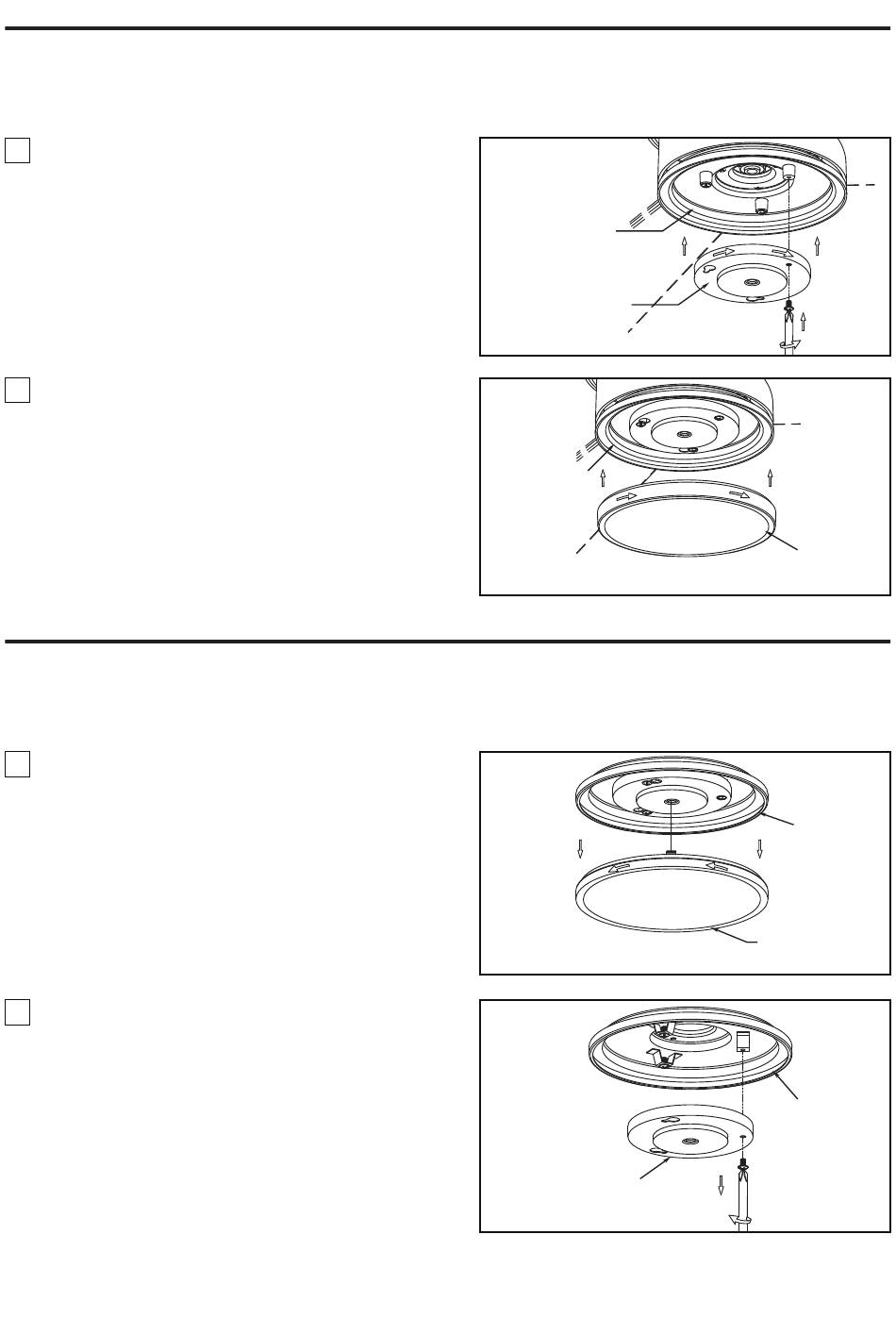

Figure 5
Switch Cover
Figure 6
Switch Cup
Cover Assembly
Switch Cover
Figure 1
Support-Cover
Switch Cup
Figure 2
