 Heating Set point temperature: This parameter allows selecting the maximum set point
temperature in heating mode
30ºC (in steps of 1ºC). The parameter OFF deactivates system heating modes.
 Cooling Gap: Allows defining the difference
between the set point and room temperature
we want to set in order to switch from Air and
Radiant source to only Radiant in combined
cooling mode
between the values 0ºC and 10ºC (in steps of
1ºC). The parameter OFF deactivates system
combined cooling modes.
 Heating Gap: Allows defining the difference
between the set point and room temperature
we want to set in order to switch from Air and
Radiant source to only Radiant in combined
heating mode
between the values 0ºC and 10ºC (in steps of
1ºC). The parameter OFF deactivates system
combined heating modes.
 Hysteresis
(Only in Airzone Radiant system)
Configures the operation interval for the
radiant energy efficiency algorithm. This
algorithm adapts the operation of the radiant
element controlled
overheating effects due to existing thermal
inertias, as, for instances, a radiant floor. By
default it is set to -2ºC; it can be configured
from -3ºC to 0ºC (in steps of 0.5ºC).
 Boiler's temperature: Allows defining the boiler high set point temperature for its
protection. The system allows selecting as boiler high set temperature the values 40ºC or
65ºC.
 Cooling return: This option allows defining the system cut off temperatures for the
zoning system protection in cooling mode
temperature the values 6ºC, 8ºC and 10ºC.
 Heating return: This option allows defining the system cut off temperatures for the
zoning system protection in heating mode
temperature the values 32ºC, 34ºC and 36ºC.
 Proportional Opening: Allows selecting between All/Nothing or Proportional on
system dampers. The proportionality sets the damper opening or closing in 4 steps
based on the zone temperature demand and adjusting the air flow (Fig. 13).
Note: The change of this parameter affects all installation motorised dampers. It is not recommended for
intelligent grill RINT and RIC.
. It is possible to select between the values 19ºC and
. It is possible to select
. It is possible to select
in order to
:
avoid
. The system allows selecting as cut off
. The system allows selecting as cut off

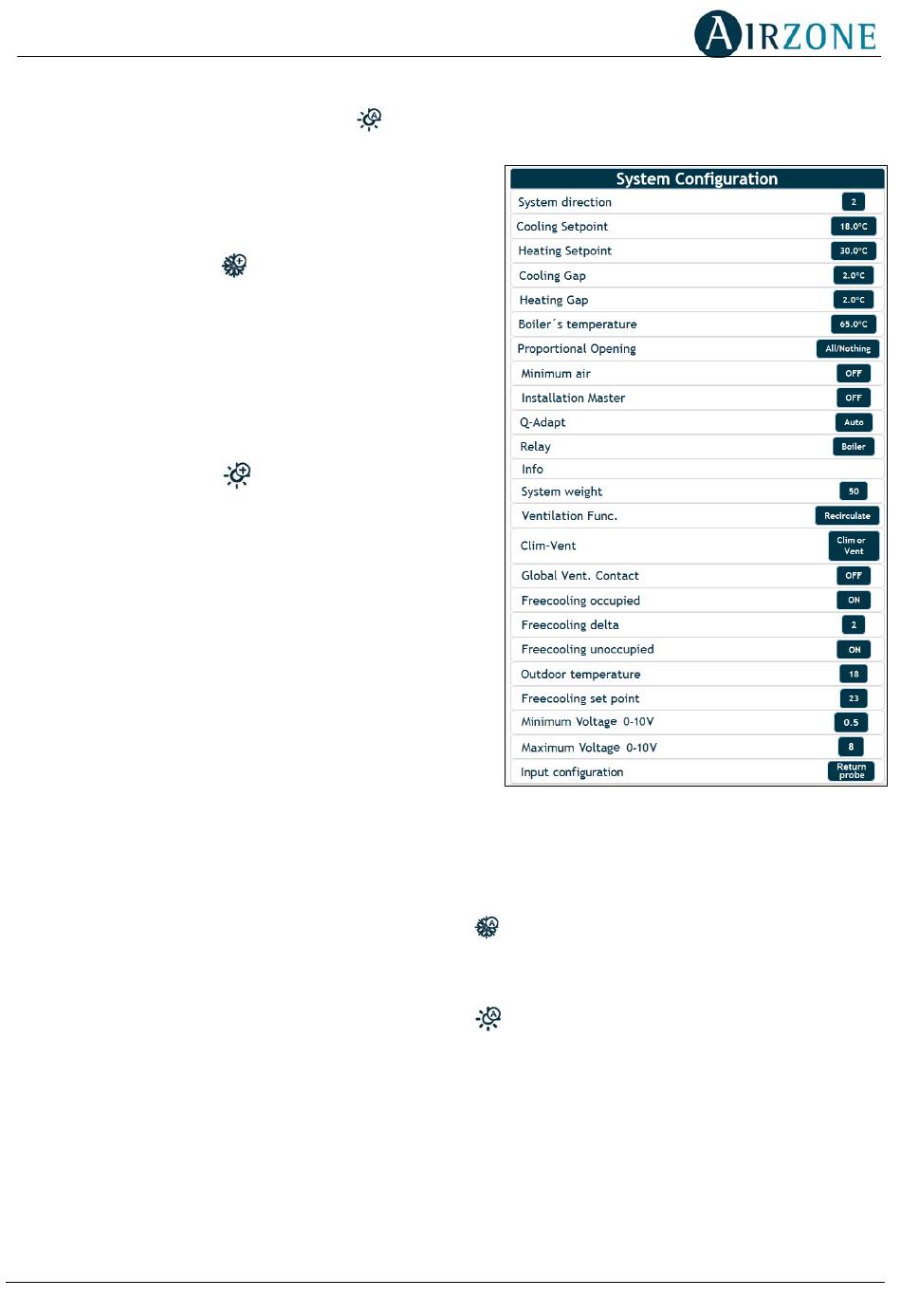

Fig. 12
