Start up / trial run
Drilling depth setting
The drilling depth can be adjusted using screw
(1 turn = 1 mm). Carry out trial drilling. Repeat the
setting process if necessary.

Drum stop

Edge distances in System 32 are set by means of the
stop pin . Four stops are already preset at the following
1
distances:
a. 13 mm
b. 22 mm
c. 37 mm
en
d. 57 mm
The fifth stop is empty and represents the machine's zero
position. This is the machine's zero point and is used for
resetting the digital display to zero.
For customised distances between 13 mm and 57 mm that
cannot be set with the drum stop, stop
the digital display. To maintain the position and be able to
reuse it later on, the sliding block can be set against the stop
with screw .
2
Locking lever for frequently used distances
Using the locking lever to the left hand side (as viewed from
the operator), frequently used dimensions can be set by
means of a locking lever
The machine then always travels to a stop

Hold-down clamp

The hold-down clamps (assembly) are pre-mounted.
The photograph shows the right-hand side of the
hold-down clamp, the hold-down clamp for the left-hand
side is installed the other way round.
Hold-down clamp, front
1
Hold-down clamp, rear
2
118
1
can be set using
1
.
1
.
2
1

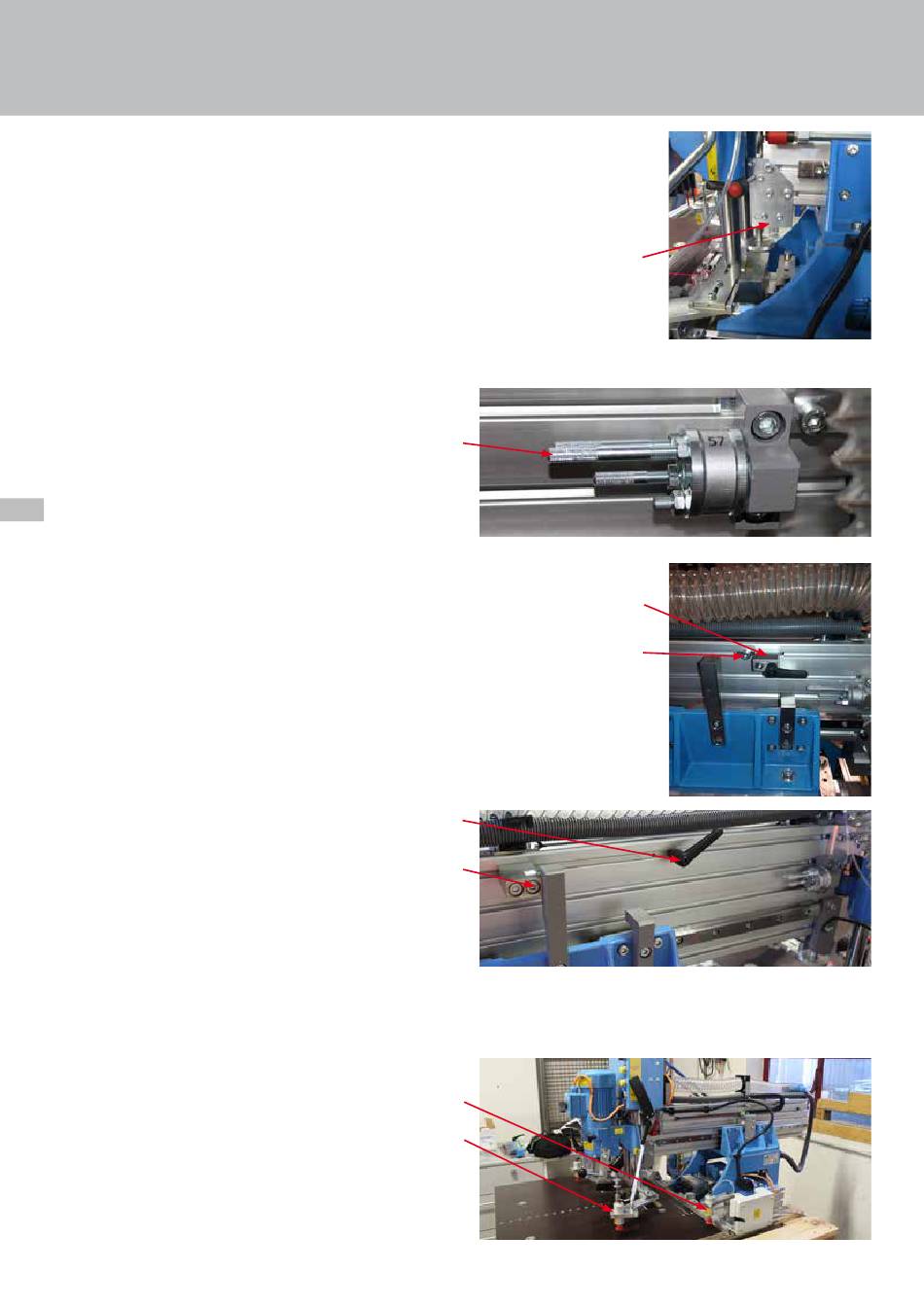

Fig. 18: Drum stop
1
2
2
1
Fig. 19: Hold-down clamps
1
Fig. 17: Drilling depth setting
1
2
