The PosiTector SPG powers-up when the center navigation
button is pressed. To preserve battery life, the instrument
powers down after approximately 5 minutes of no activity. All
settings are retained.
1. Remove the protective rubber cap from probe.
2. Power-up Gage by pressing the center navigation
3. Place the glass plate onto a stable, flat surface. Take several
measurements. If the average is greater than ±5 µm (0.2 mil),
Zero the instrument (see pg. 4).
4. Place the probe FLAT on the surface to be measured such that
the tip of the probe reaches into the bottom of a profile valley.
HOLD STEADY. The Gage will BEEP twice and display the
measurement.
5. Lift the probe from the surface between measurements.
Gage functions are menu controlled. To access the Menu, power-
up the gage, then press the center navigation button.
Navigation Button
Up
Center
Down
NOTE:
The center
eliminate unintentional powering-up of the gage.

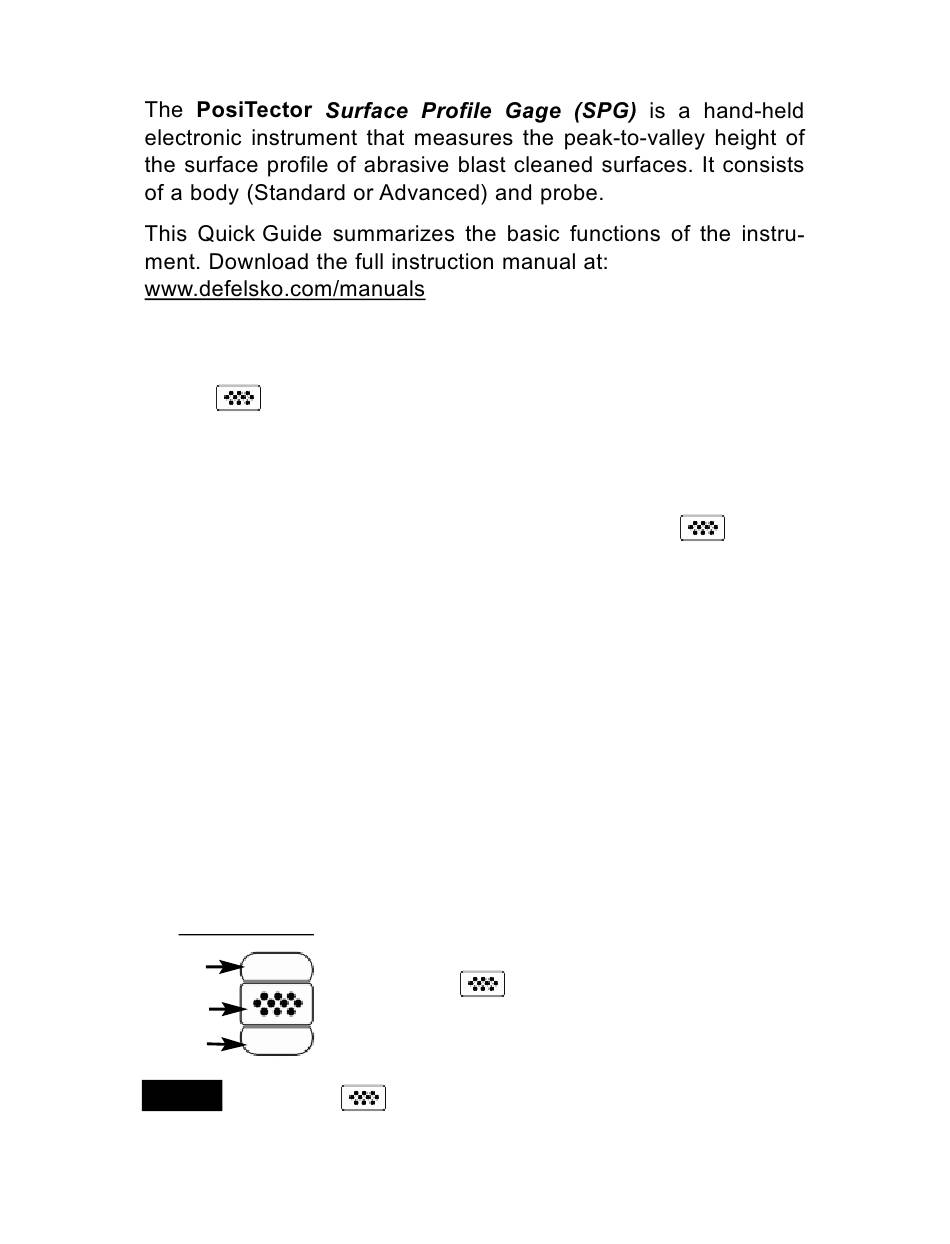

Introduction
Introduction

Quick Start

Quick Start

Menu Operation

Menu Operation
To navigate, use the Up and Down buttons to
scroll and to SELECT.
Select Exit to exit from any menu.
button is purposely recessed to help
