INCREMENTAL FLUID PRESSURE SCHEME
Type
ICON-M333N
ICON-A333N
ICON-M433N
ICON-A433N

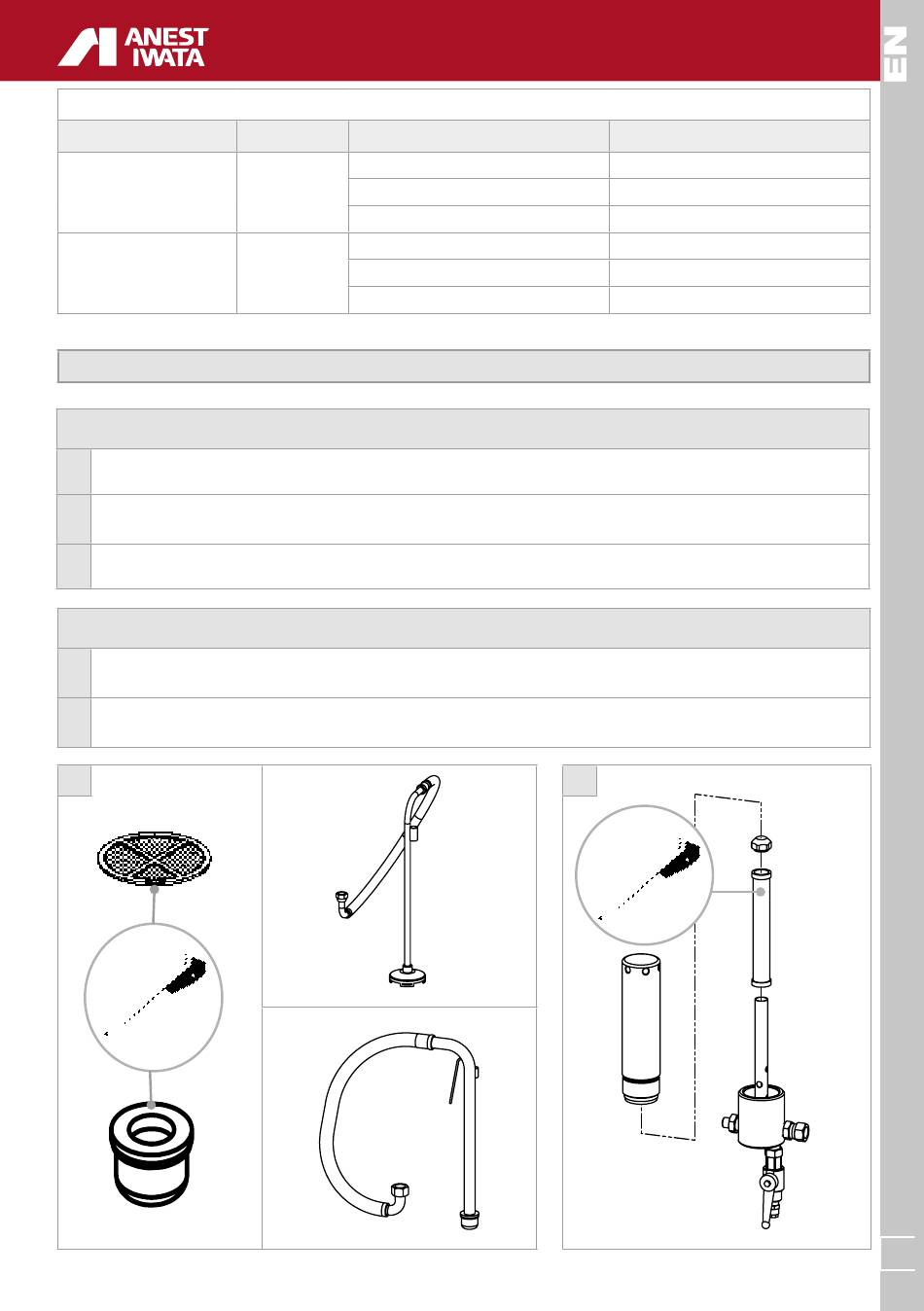

11. ORDINARY MAINTENANCE
11.1 DAILY MAINTENANCE
1
FLUSH THE PUMP: Clean the pump unit after working and after any color change.
MAKE SURE THERE ARE NO PAINT OR AIR LEAKS: Check that the hoses are not damaged and that all threaded con-
2
nections are firmly tightened. Replace immediately if you find any anomalies.
3
FILL THE THINNER CUP WITH PACKING PROTECTION LIQUID: Fill the thinner cup up to 80% of packings protection liquid.
11.2 MONTHLY MAINTENANCE
1
CHECK THE FILTER OF SUCTION HOSE: Check about clogging or damage of filter. Clean or replace, if it is necessary.
2
CHECK THE PAINT FILTER (TF-8N): Check about clogging or damage. Clean or replace, if it is necessary.
1
50 MESH
15 MESH
Airless and Multi Spray iCon Pumps
Ratio
Air regulator setting
0.3MPa (3bar - 43.5psi)
32:1
0.5MPa (5bar - 72.5psi)
0.7MPa (7bar - 100psi)
0.3MPa (3bar - 43.5psi)
36:1
0.5MPa (5bar - 72.5psi)
0.7MPa (7bar - 100psi)
Incremental fluid pressure
9.6MPa (96bar - 1.392psi)
16.0MPa (160bar - 2.320psi)
22.4MPa (224bar - 3.248psi)
10.8MPa (108bar - 1.566psi)
18.0MPa (180bar - 2.610psi)
25.2MPa (252bar - 3.654psi)
2
11
