BUILDING THE WOODEN STRUCTURE

6.1

Introduction

REF QTY
A 22
B
C
D
E
F
G
H 18
I
J 18
K
L
M
N
O 18
10
10
WOODEN POOLS

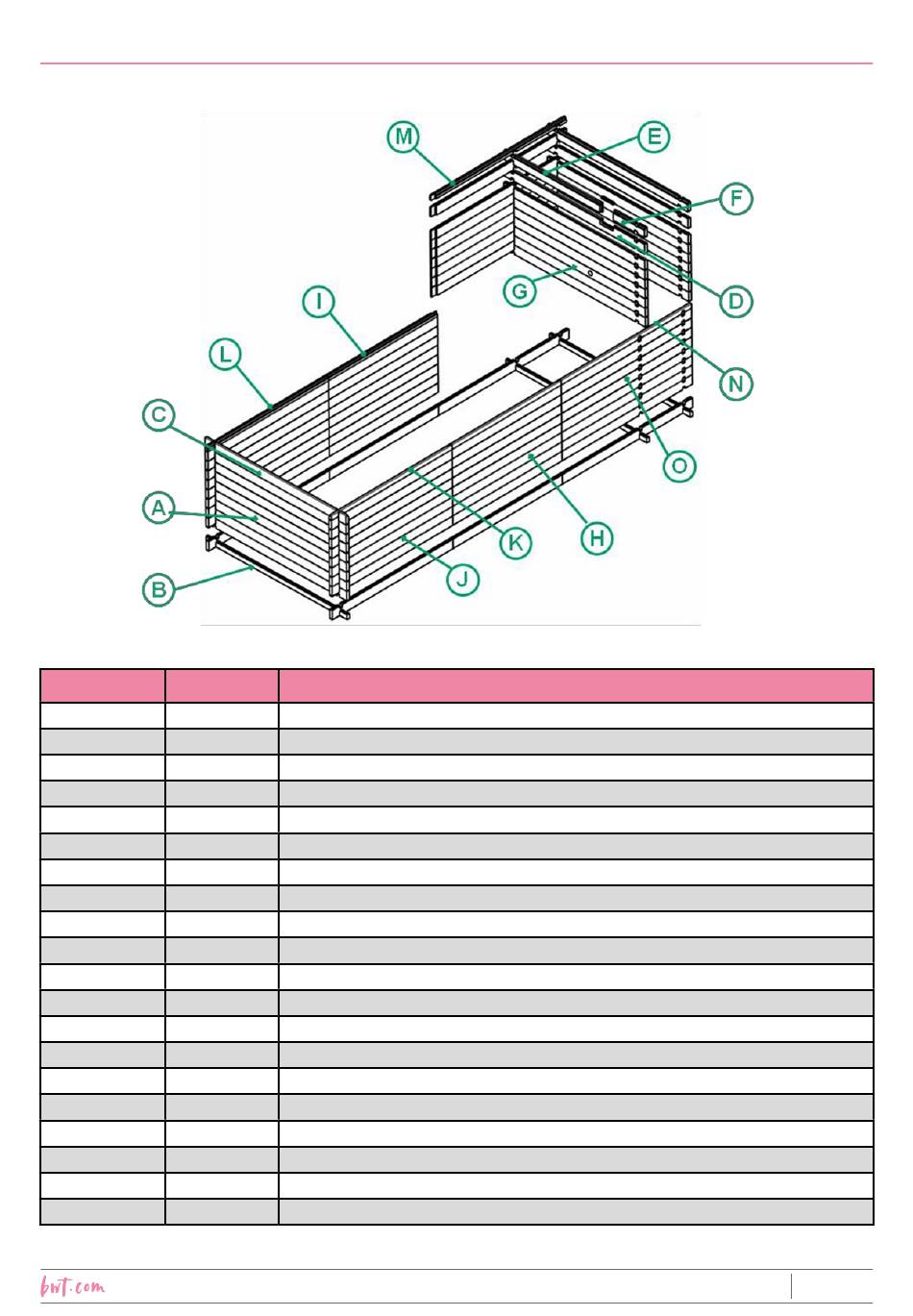

Figure 6 – Exploded view of the wooden structure
3
2
1 Wall slat 2332 x 145 x 45 mm, male/ female skimmer
1
1
1
2
1
1
1
1
2
1
8
BWT myPOOL POOL'N BOX
DIMENSIONS (MM)
Wall slat 2332 x145 x 45 mm, male/ female
Wall slat 2332 x 78 x 45 mm, male
Wall slat 2332 x 137 x 45 mm, female
Wall slat 1604 x 137 x 45 mm, female skimmer
Wall slat 528 x 137 x 45 mm, female skimmer
Wall slat 2332 x 145 x 45 mm, return fitting
Wall slat 1908 x 145 x 45 mm, male/ female
Wall slat 1908 x 70 x 45 mm, female
Wall slat 2031 x 145 x 45 mm, male/ female
Wall slat 2031 x 70 x 45 mm, righthand female
Wall slat 2031 x 70 x 45 mm, lefthand female
Wall slat 2264 x 70 x 45 mm, righthand female
Wall slat 2264 x 70 x 45 mm, lefthand female
Wall slat 2264 x 145 x 45 mm, male/ female
Pine supporting brace 1285 x 145 x 45 mm
Pine reinforcement 686 x 83 x 45 mm
Pine reinforcement 686 x 145 x45 mm
Pine trim 1295 x 70 x 45 mm, Ht 1330 mm
Trim 1290 x 137 x 45 for supporting brace
