INSTALLATION (continued)
6. SAFETY SWITCH CONNECTION

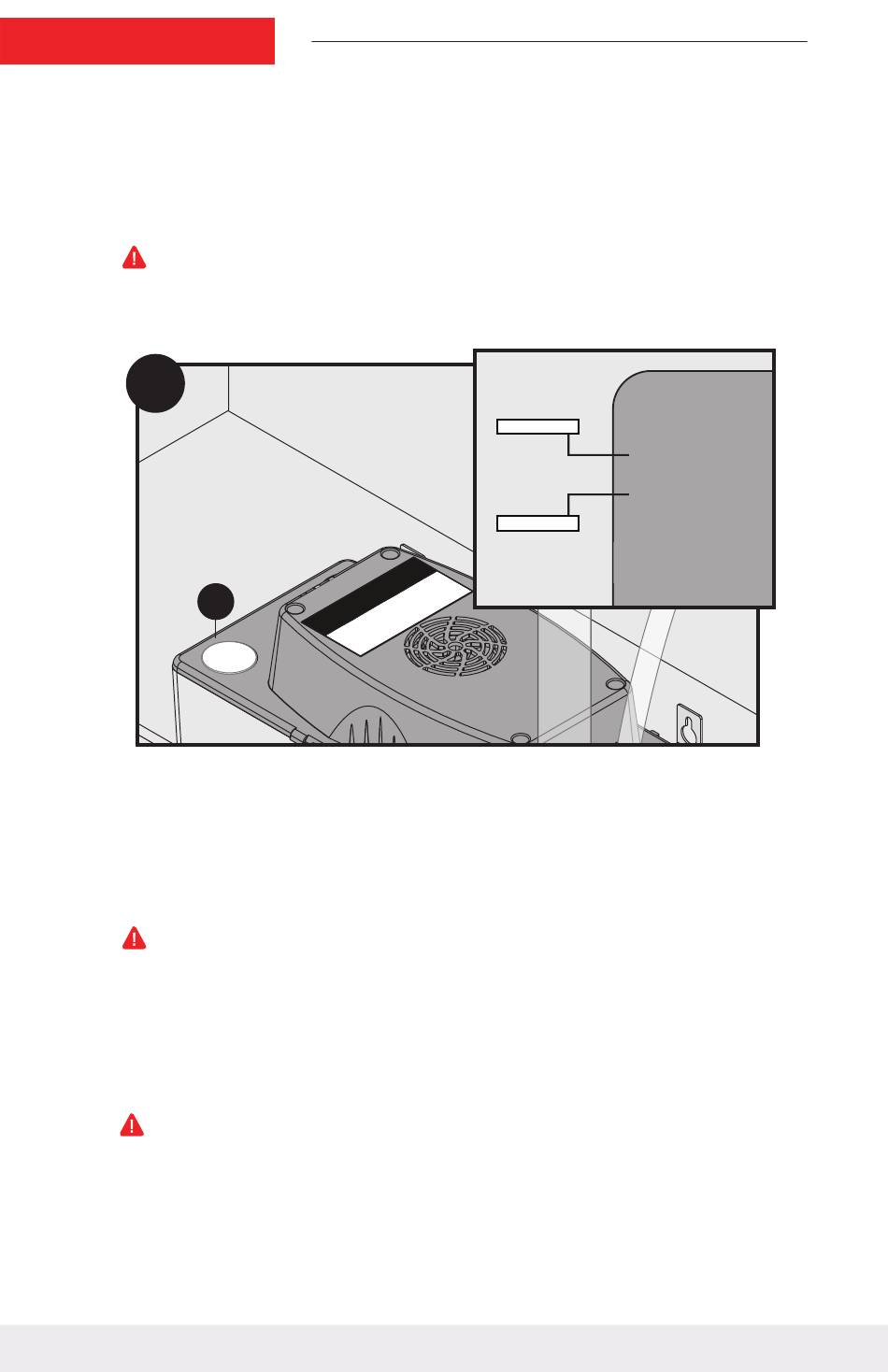

Connect overflow safety switch terminals as shown in wiring diagram.
WARNING: RISK OF ELECTRIC SHOCK
Ensure that power to appliance and pump is shut off before
attempting this step! Failure to follow these warnings will void the
warranty and could result in a fatal electric shock.
6
A

ELECTRICAL CONNECTION

7. ELECTRICAL CONNECTION
WARNING: RISK OF ELECTRIC SHOCK
This pump is supplied with a grounding conductor and grounding-
type attachment plug.To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type
receptacle. This pump must be properly connected to power
following the National Electric Code (NEC). Failure to follow these
warnings will void warranty and could result in a fatal electric shock.
This pump is supplied with a grounding conductor and grounding
type attachment plug. To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type
receptacle.
C O N D E N S AT E M A N A G E M E N T
Shut-Down Circuit*
R G W Y
Shut-Down Circuit*
R G W Y
*Overflow Switch is normally
closed and opens when a high
water level is detected.
Connect this circuit in series
with the appropriate 24V
shut-down circuit for the
appliance.
