14. Insert the six pin connector into the Mobile Link unit. See Fig-
ure 3-10. Connector will only fit one way. DO NOT force into
place.

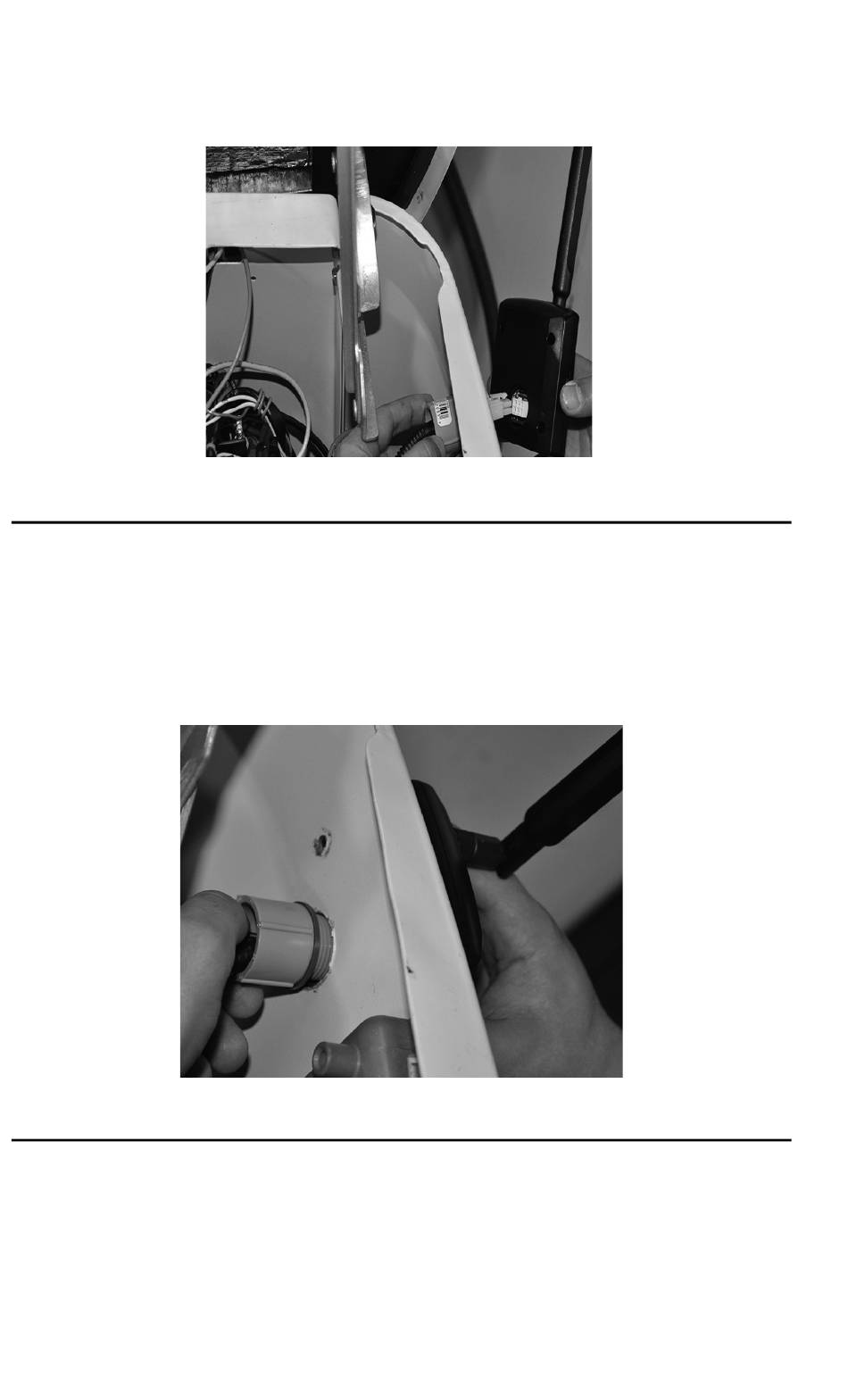

Figure 3-10. Plug Harness Into Mobile Link Unit
15. With the plug installed, tighten the plastic fitting and draw the
Mobile Link unit to the generator's wall. Be careful not to over
tighten. Position the Mobile Link unit with the antenna facing
upwards. See Figure 3-11.
Figure 3-11. Attaching Mobile Link Unit to Fitting
NOTE: Hold the Mobile Link unit firmly in place and tighten the
nut during installation to avoid damage to the unit wiring har-
ness.
18 Mobile Link
