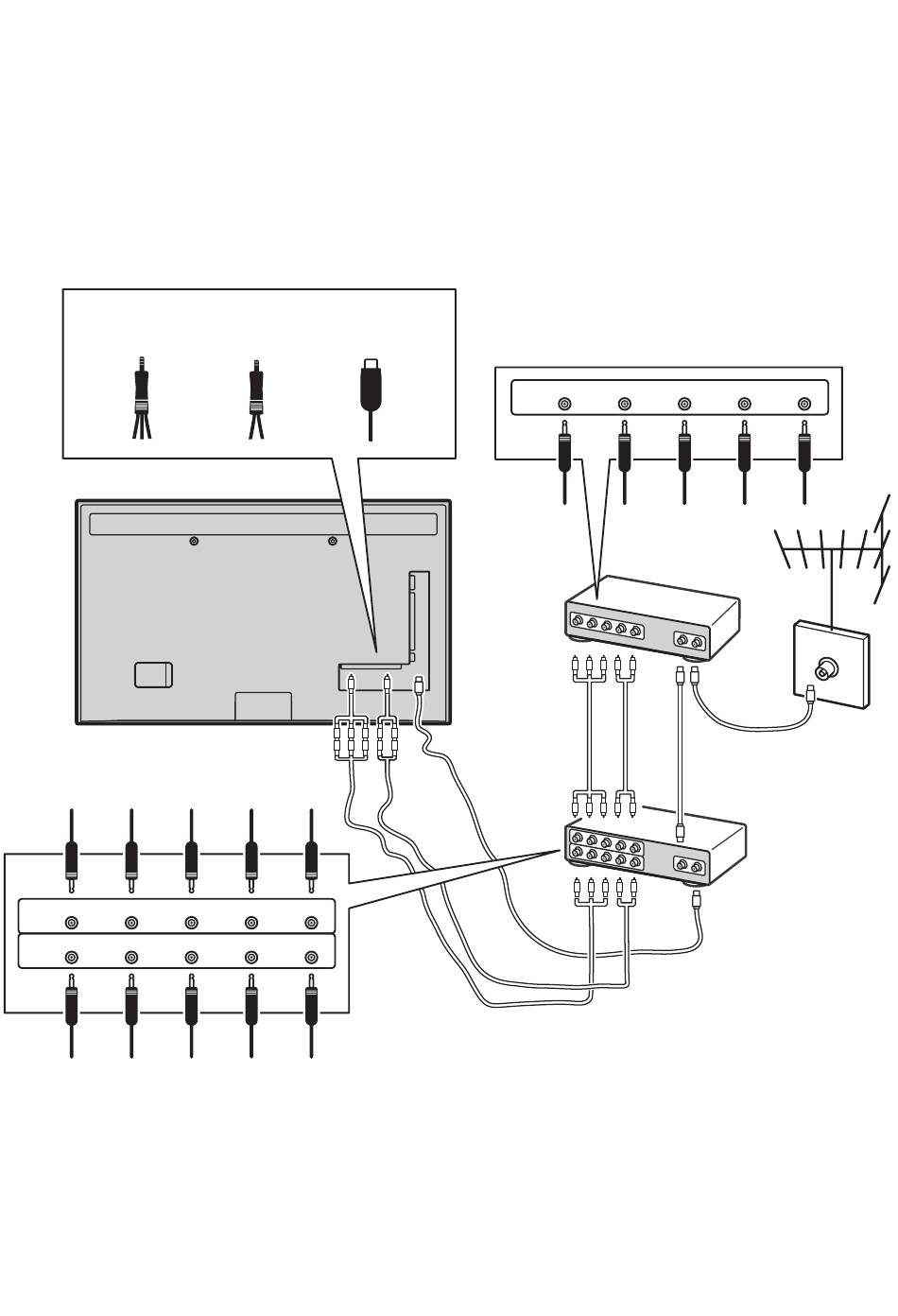

DVD player, cable receiver
CMP
adapter
Pr Pb Y
IN
Pr Pb Y
OUT
Notes:
─ These illustrations are for reference only.
Your model may differ in appearance or
may not include all connections shown.
─ The location of the power socket on the
TV may vary depending on the model.
─ The location and names of the function
buttons and connectors on the TV may
vary depending on the model.
AUDIO in Antenna/Cable
adapter
input
R L
R L
Note:
Remove the power cord before connecting
devices.
Pr Pb
OUT
Set-top box
10
Y R L
Cable
DVD recorder
