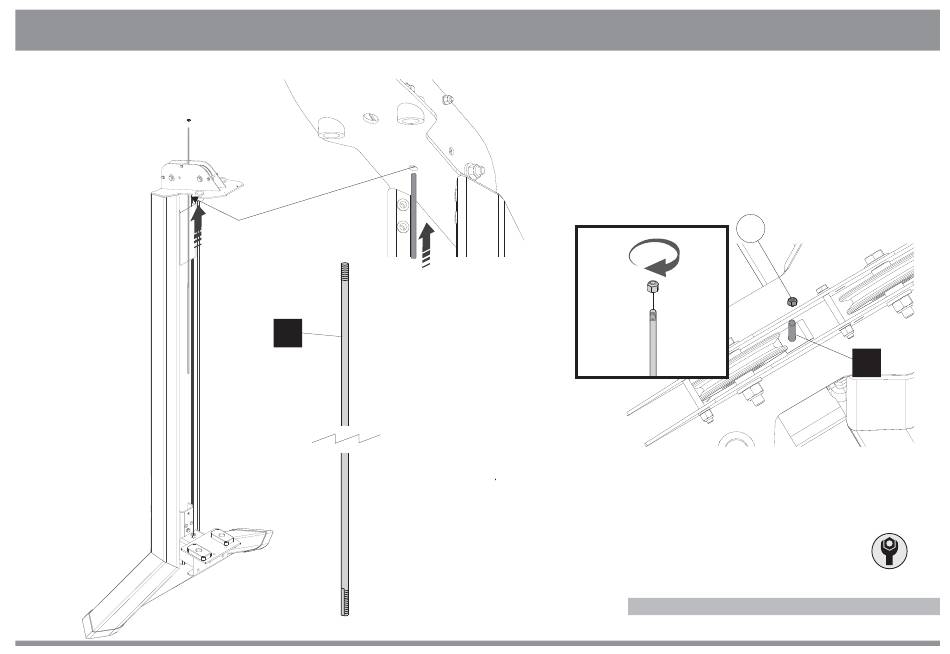

STEP 4 - ASSEMBLY THE TOWER
IN CASE YOUR EQUIPMENT IS EDGE VERSION,
GOTO PAGE 28 TO KEEP ASSEMBLE.
The thread rod should be up
positioned.
R
The beveled part of the rod
should be turned down
Figure 1
ID.
09
20
ASSEMBLY
09
Figure 2
Fix Wrench 10 mm
PART
DESCRIPTION
Hex Nut Insert Nylon
R
Tools
QTY.
M6
1
