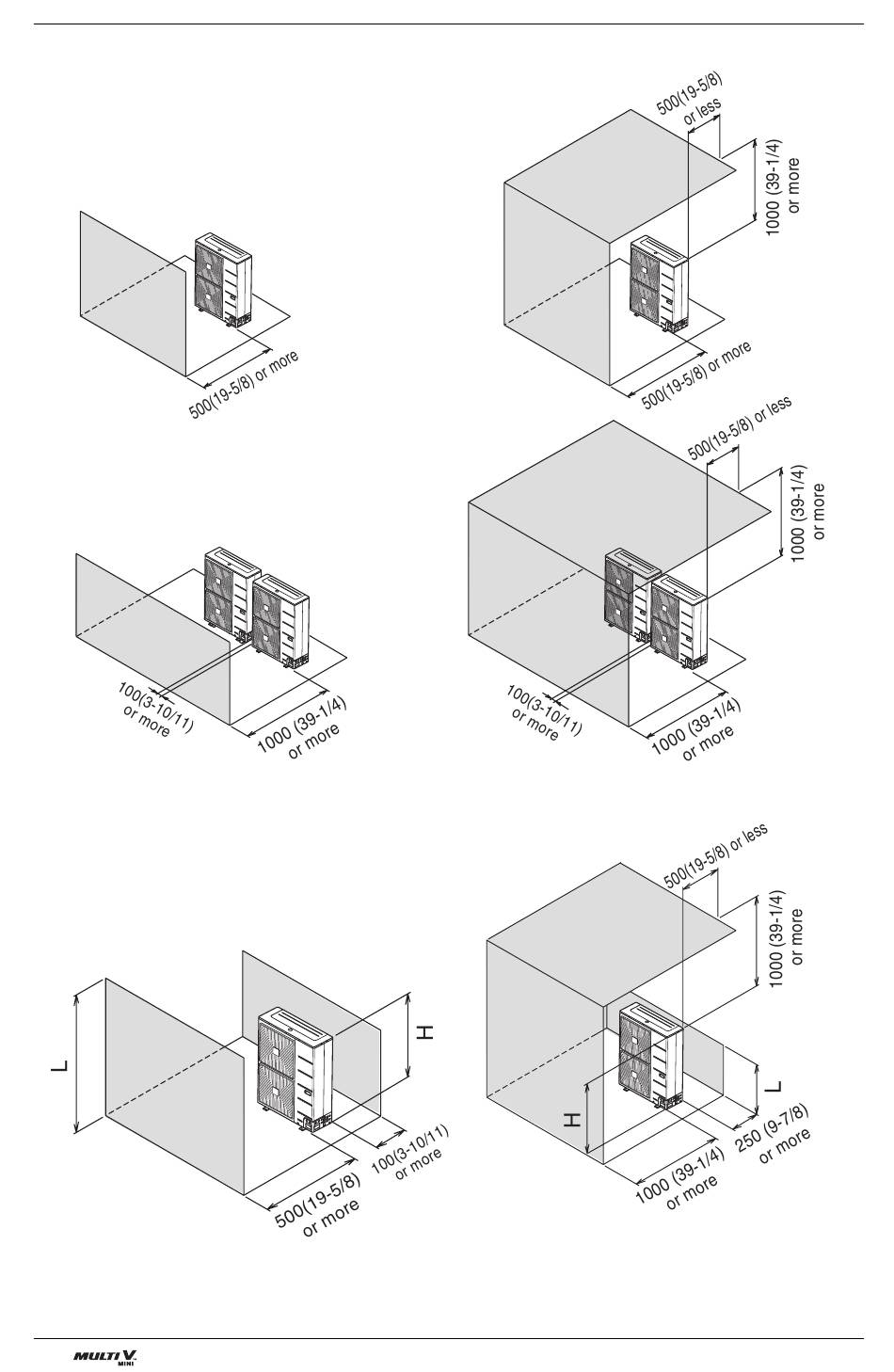

Installation Space
I In case of obstacles on the discharge side
1. Stand alone installation
2. Collective installation
I In case of obstacles on the suction and the discharge side
➲ Obstacle height of discharge side is higher than the unit
1. Stand alone installation
L > H
16 Outdoor Unit
L > H
Unit:mm(inch)
Unit:mm(inch)
