THE INDOOR UNIT INSTALLATION

Ceiling

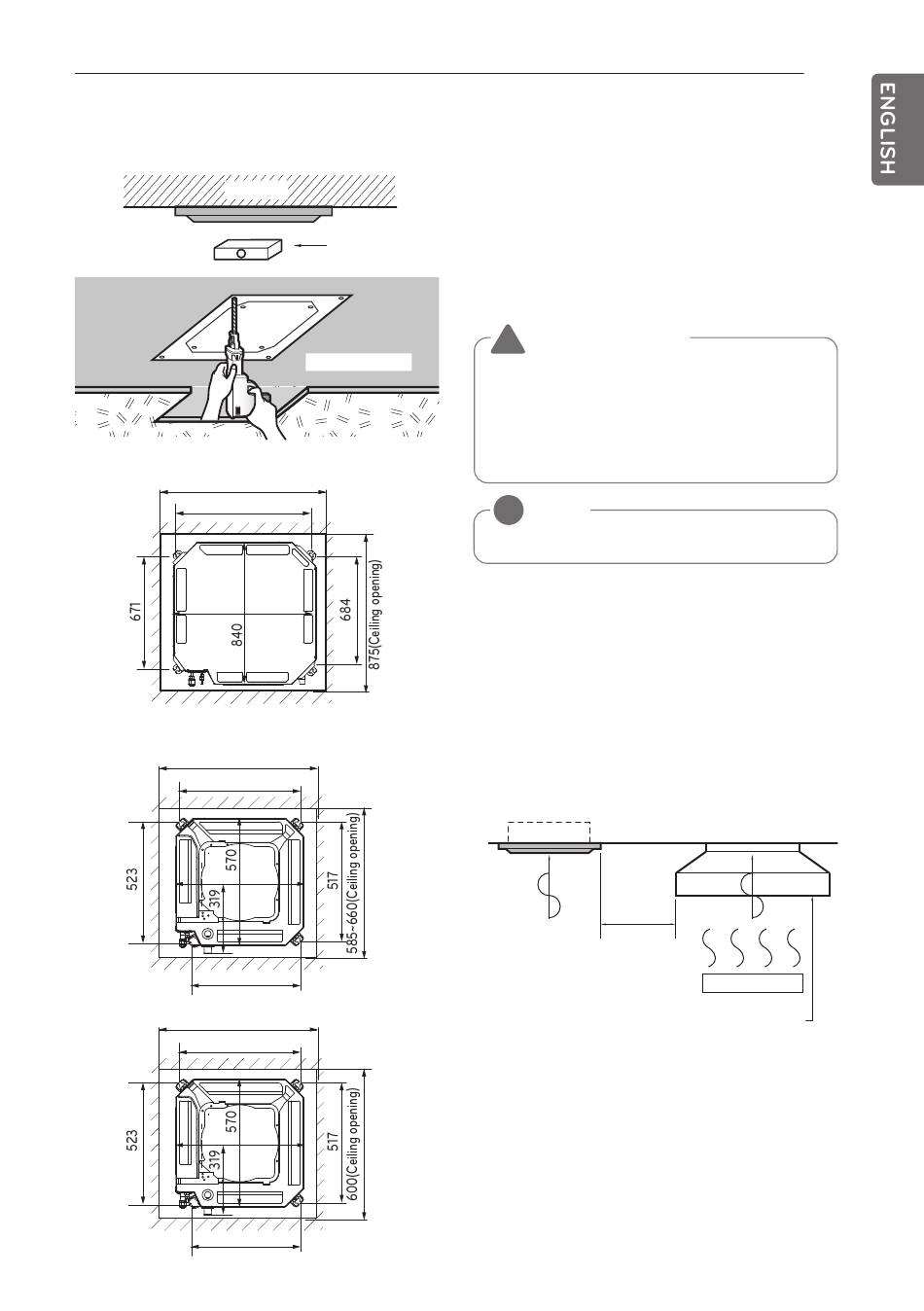

[TM/TN/TP Chassis]
875(Ceiling opening)
787
840
Panel size : 950 X 950 mm
[TQ/TR Chassis]
585~660(Ceiling opening)
517
461
Panel size : 700 X 700 mm
600(Ceiling opening)
517
461
Panel size : 620 X 620 mm
Level gauge
Ceiling board
(Unit:mm)
(Unit:mm)
570
570
THE INDOOR UNIT INSTALLATION
- Select and mark the position for fixing bolts
and piping hole.
- Decide the position for fixing bolts slightly
tilted to the drain direction after considering
the direction of drain hose.
- Drill the hole for anchor bolt on the wall.
CAUTION
!
• This air-conditioner uses a drain pump.
• Install the unit horizontally using a level
gauge.
• During the installation, care should be
taken not to damage electric wires.
NOTE
!
Avoid the following installation location.
1
Such places as restaurants and kitchen
where considerable amount of oil steam
and flour is generated. These may cause
heat exchange efficiency reduction, or
water drops, drain pump mal-function. In
these cases, take the following actions;
- Make sure that ventilation fan is enough
to cover all noxious gases from this place.
- Ensure enough distance from the cooking
room to install the air conditioner in such
a place where it may not suck oily steam.
Air conditioner
Take enough
distance
Use the ventilation fan for smoke-collecting
hood with sufficient capacity.
2
Avoid installng air conditioner in such
places where cooking oil or iron powder is
generated.
3
Avoid places where inflammable gas is
generated.
4
Avoid place where noxious gas is
generated.
5
Avoid places near high frequency
generators.
7
Cooking table
